SWI TRAK 1630HSSX CNC/Manual Toolroom Lathe w/Hyd Collet Closer & 8 Station Turret
Have one to sell?
ConditionUsed
1 available
$25,950.00 USD

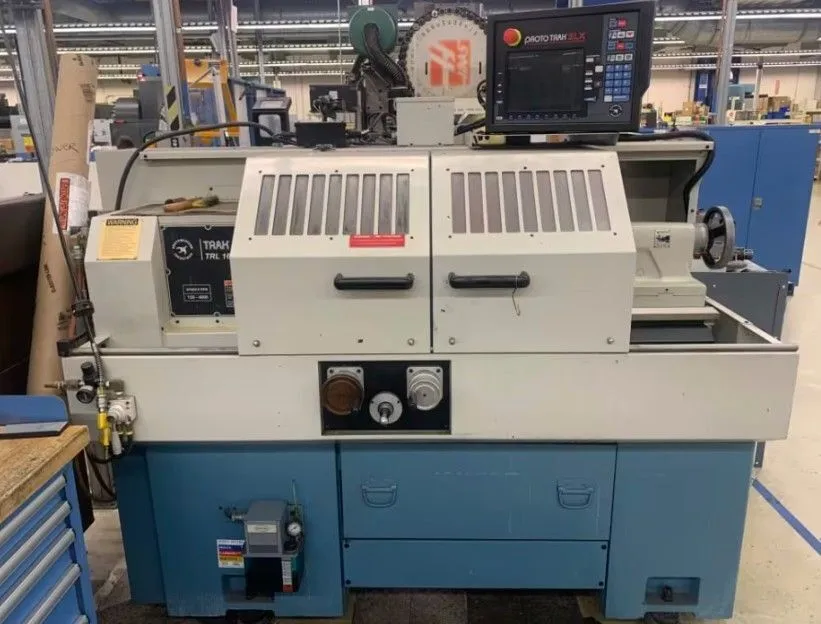

The 2010 SWI TRAK Model 1630HS-SX is a 2-axis CNC/manual toolroom flat-bed engine lathe equipped with the ProtoTRAK SLX CNC system, 8 Station Turret, & Hydraulic 5C Collet Closer
SWI TRAK 1630HSSX CNC/Manual Toolroom Lathe w/ Hydraulic Collet Closer & 8 Station Turret
Specifications:
ProtoTRAK SLX Control

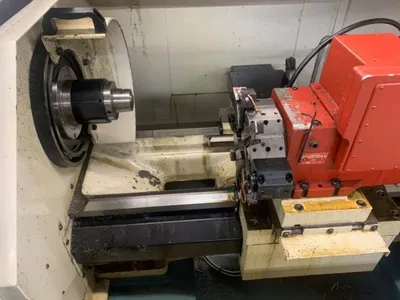

8 Station Turret

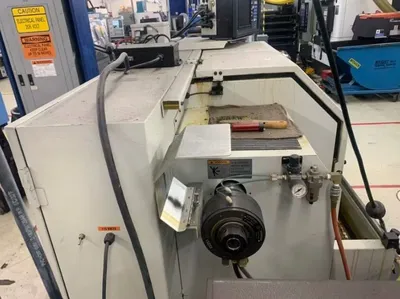

Hydraulic Collet Closer Chuck
Speed Range 155-4000rpm
Machine Specifications
• Height of Centers-8”
• Distance between centers-30”
• Swing over bed -16”
• Swing over saddle wings-16”
• Swing over cross slide-8.6”
• Cross slide travel-8.5”
• Tool section max-3/4”
• Coolant tank capacity – 9.3 gal.
• Width of Bed-12.6”
• Height of Bed-12.6”
• Spindle Nose - A2-4
• Spindle through hole-1.57”
• Spindle taper-MT#5
• Taper in reduction sleeve -N/A
• Spindle dia at front bearing-2.56”
• Number of bearings-5
• Spindle speed range (RPM)-150-4000
• Optional Tailstock Quill travel-5”
- Quill diameter-2.36”
- Quill taper hole-MT#4
• Spindle Motor HP -7.5

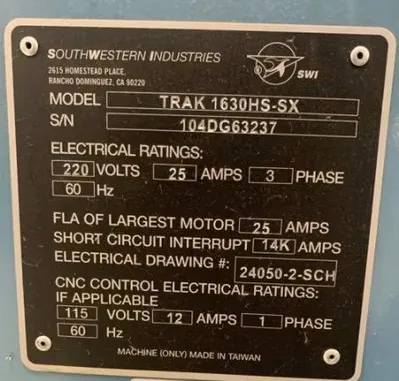

• Power requirements, control-110V; 1P; 8 A
• Power requirements, machine-220V;3P;60Hz
• Amps full load current-25
• Dimensions net - 79 x 40 x 56”
• Dimensions shipping - 87 x 45 x 67”
• Weight net - 2,875 lbs.
• Weight shipping – 3,420 lbs.
• Maximum rapid feed X - 100
• Maximum rapid feed Z - 150
• Coolant pump motor -1/8 HP
• Spindle motor brake - Dynamic braking
• Way surface hardness - 400 – 450 HB
• Head stock lubrication - Grease
• Sliding door for easy set-ups
• Bedways hardened and ground
• Sliding surfaces Turcite coated
• Dovetails on cross slide, V-ways on saddle
• Adjustable saddle gibs
Machine Options
• Hydraulic Collet closer
• Coolant pump
• Indexer 8-station
• Work lamp
• Tailstock
The 2010 SWI TRAK Model 1630HS-SX is a 2-axis CNC/manual toolroom flat-bed engine lathe equipped with the ProtoTRAK SLX CNC system, 8 Station Turret, & Hydraulic 5C Collet Closer
Imperial
| Swing | 16" |
| Machining Length | 30" |
| # Axis | 2 |
| Bar Capacity | 1.57" |
| Power | 7.5 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 8.6" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (ProtoTRAK SLX Control) |
| Dimensions | 79 x 40 x 56” |
| Weight | 3,420 |
SWI TRAK 1630HSSX CNC/Manual Toolroom Lathe w/ Hydraulic Collet Closer & 8 Station Turret
Specifications:
ProtoTRAK SLX Control
8 Station Turret
Hydraulic Collet Closer Chuck
Speed Range 155-4000rpm
Machine Specifications
• Height of Centers-8”
• Distance between centers-30”
• Swing over bed -16”
• Swing over saddle wings-16”
• Swing over cross slide-8.6”
• Cross slide travel-8.5”
• Tool section max-3/4”
• Coolant tank capacity – 9.3 gal.
• Width of Bed-12.6”
• Height of Bed-12.6”
• Spindle Nose - A2-4
• Spindle through hole-1.57”
• Spindle taper-MT#5
• Taper in reduction sleeve -N/A
• Spindle dia at front bearing-2.56”
• Number of bearings-5
• Spindle speed range (RPM)-150-4000
• Optional Tailstock Quill travel-5”
- Quill diameter-2.36”
- Quill taper hole-MT#4
• Spindle Motor HP -7.5
• Power requirements, control-110V; 1P; 8 A
• Power requirements, machine-220V;3P;60Hz
• Amps full load current-25
• Dimensions net - 79 x 40 x 56”
• Dimensions shipping - 87 x 45 x 67”
• Weight net - 2,875 lbs.
• Weight shipping – 3,420 lbs.
• Maximum rapid feed X - 100
• Maximum rapid feed Z - 150
• Coolant pump motor -1/8 HP
• Spindle motor brake - Dynamic braking
• Way surface hardness - 400 – 450 HB
• Head stock lubrication - Grease
• Sliding door for easy set-ups
• Bedways hardened and ground
• Sliding surfaces Turcite coated
• Dovetails on cross slide, V-ways on saddle
• Adjustable saddle gibs
Machine Options
• Hydraulic Collet closer
• Coolant pump
• Indexer 8-station
• Work lamp
• Tailstock
