SWI TRAK DPM SX3 w/5HP, 10" x 50" Table, PDB

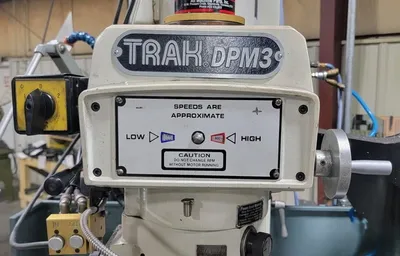

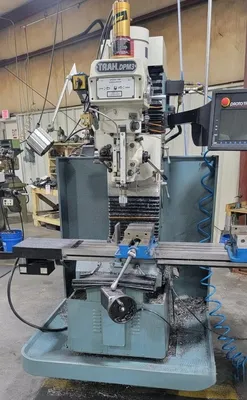

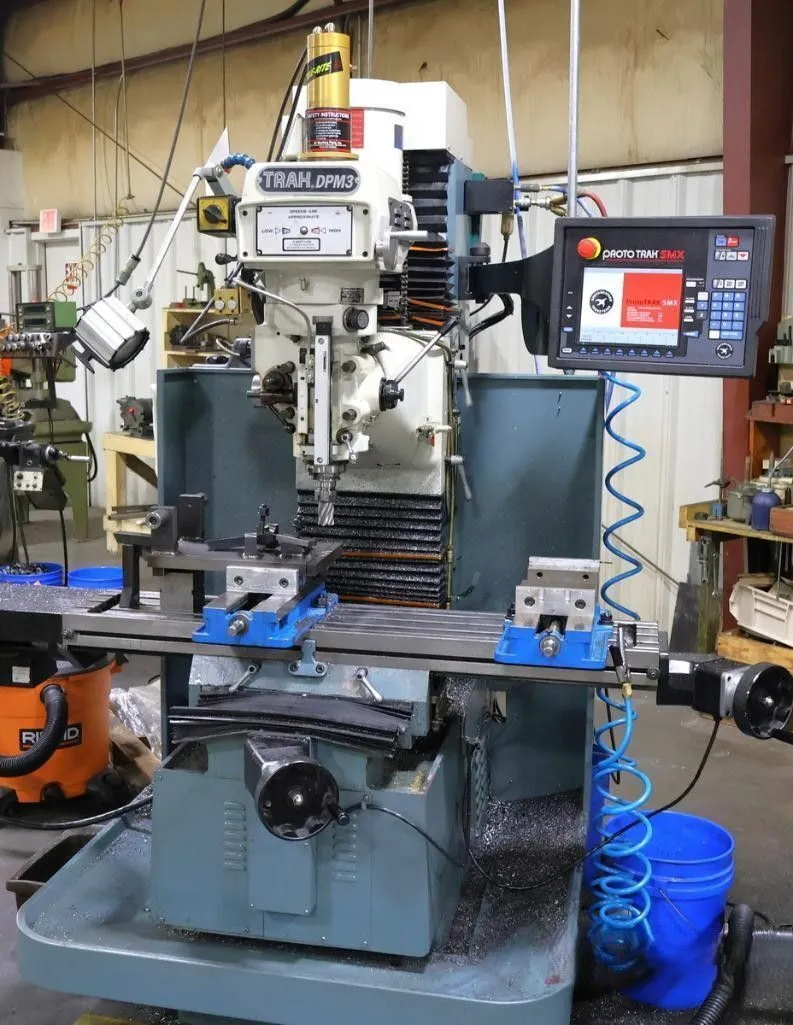

2007 SWI TRAK DPM SX3
ProtoTRAK SMX CNC Controller

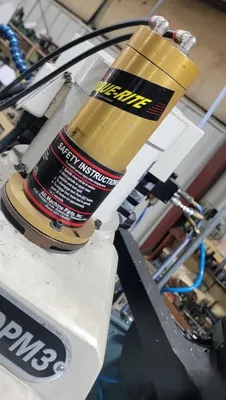

Power Draw Bar

Table & Travel Specifications
Table Size: 50" x 10"
T-Slots: 3 x 0.63" x 2.48"
Travel (X, Y, Z Axis): 31" x 17" x 23.5”
Maximum Weight of Workpiece: 1,320 lbs

Spindle & Head Specifications
Spindle Taper: NMTB 40
Spindle Speed Range: Varispeed drive, typically ~70 to 4,200 RPM (or 40–5,000 RPM depending on head/inverter setup)
Spindle Motor Power: 5 HP (30-min rating)
Quill Diameter: 3 15/16"
Maximum Quill Travel: 5"
Head Swivel: Manual swivel head - up to 90° or limited to ~30° clockwise

Controller & Electronics (ProtoTRAK SMX)

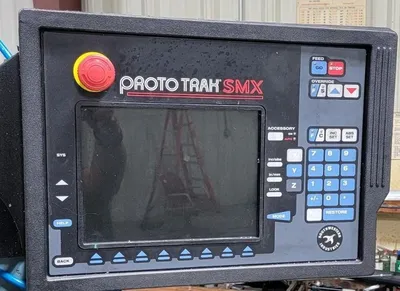

Control Unit: ProtoTRAK SMX CNC
Display: 10.4" color active-matrix screen with built-in LED status lights
Processor / RAM: Industrial Celeron® processor with 256 MB RAM
Operation: Can be used manually with real handwheels, 2-axis CNC, or 3-axis CNC, plus a 3-axis DRO mode.
Storage / Ports: TEAC floppy drive, PS/2 keyboard connector, 2 USB connectors, and optional RJ45/Ethernet card.

Physical Dimensions & Power

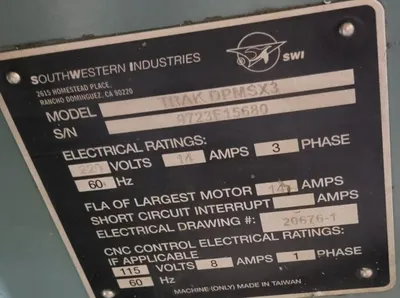

Power Requirements: 220V, 3-phase, ~17.5A (with optional head)
Machine Width (including table): 73" (108" overall width including full table traverse)

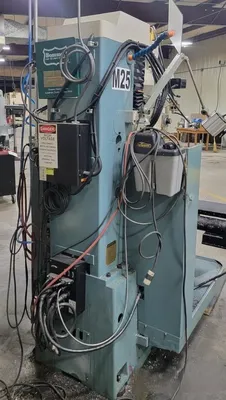

Length (with electric box door closed): 66"
Machine Height Range: Min height ~85", max height ~95" (max spindle nose to table: 23.5")

This CNC Mill is on the way in.
