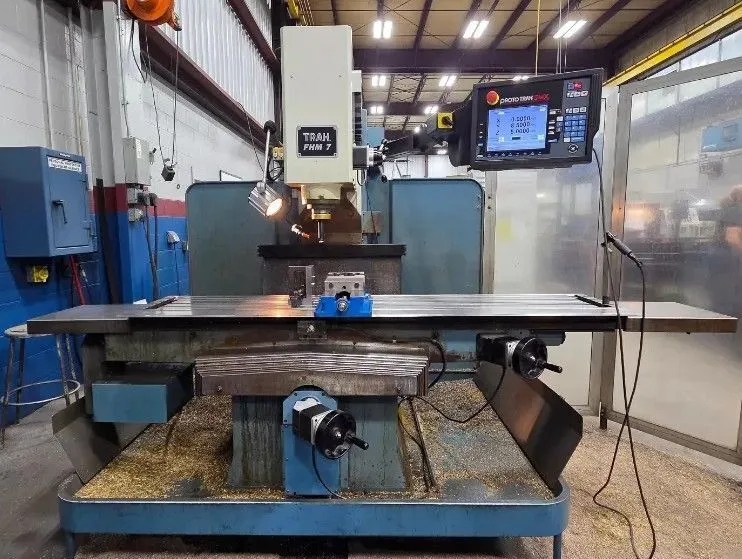

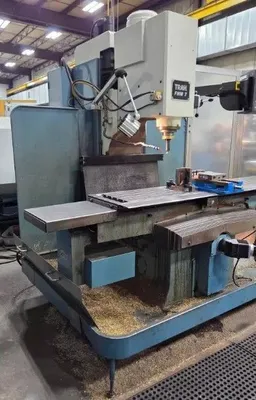

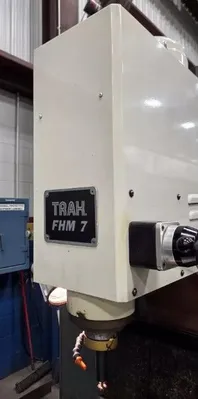

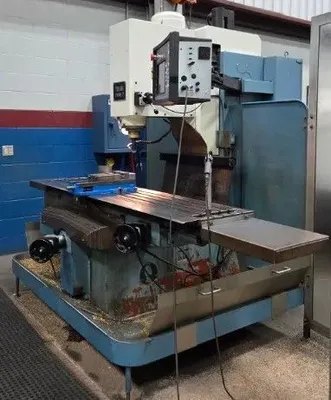

SWI TRAK FHM7 3 Axis CNC Vertical Bed Mill w/ProtoTRAK SMX Controller, 7.5HP

2007 TRAK DPM FHM7 Bed Mill with the ProtoTRAK SMX CNC Controller
Machine specifications
• Table size – 76” x 14”
• T-slots (number x width x pitch) – 3 x 63” x 2.48”
• Travel (X, Y, Z axis) – 60” x 23” x 20.5”

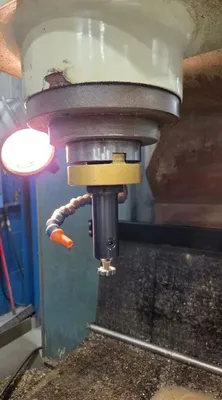

• Quill diameter – 5.06”
• Spindle taper – NMTB 40
• Spindle speed range RPM – 200-5000
• Spindle center to column face – 23”
• Spindle motor power – 7.5 HP

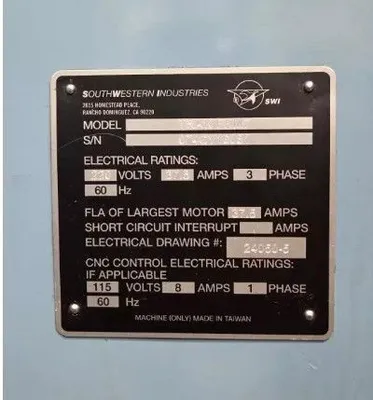

• Power requirement – 3 phase, 220V, 60 HZ; 37.5 FLA
• Power Requirement Control – 110V; 1 phase; 15A
• Maximum weight of workpiece – 2200 lbs.
• Height of table from bottom of bed – 38.25”
• Maximum spindle nose to table – 24”
• Minimum height – 95.5”
• Maximum height – 101”
• Width of machine including table – 110.5”

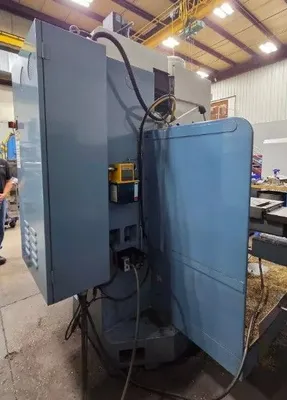

• Length with electric box door closed – 93.75”
• Overall width including full table travel – 171.65”
• Overall length with electrical door open – 119.5”
• Footprint – 42.52” x 63”
• Way surface – dovetail X axis; square ways Y and Z axis
• Weight (approximate) net – 7650 lbs.
• Weight (approximate) shipping – 7975 lbs.
• Maximum work capacities – Drilling (mild steel) max. dia. 1.00”; tapping, 5/8”; milling capacities, 7
inch3/min
• Way surfaces hardened and ground
• Turcite coating on all slide ways
Standard Features
• Automatic lubrication pump
• Auxiliary function hardware
• Limit switches
• Programming of Auxiliary Functions
• Programmable Spindle Control
TRAKing/Electronic Handwheels
• Electronic Handwheels on X and Y (replaces the mechanical handwheels)
• TRAKing of programs during program run
• Go To Dimensions
• Selectable Fine/Coarse handwheel resolution
Machine Options
• Glass scales for table and saddle
• Power drawbar
• Remote stop/go switch
• Coolant pump
• Spray coolant
• Table guard
• Halogen work lamp
• Chip pan / splash shield
• Vise

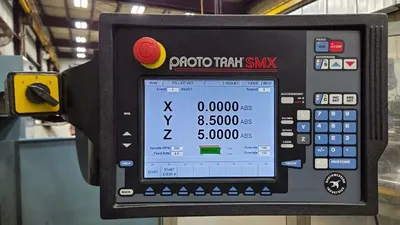

ProtoTRAK SMX System Specifications
(O) indicates optional feature
ProtoTRAK System Hardware
• ProtoTRAK SMX CNC
• Two- or three-axis CNC, 3-axis DRO
• Real handwheels for manual operation
• 10.4” color active-matrix screen
• Industrial-grade Pentium® processor
• 1 GB Ram
• 4 USB connectors
• Override of program feedrate
• LED status lights built into display
• RJ45 Port and Ethernet card (O)
• Override of program spindle speed
• USB Thumb drive flash memory 512 or more (O)
• Uncluttered front panel with few hard keys
• Ballscrew and motor assembly installed on quill
• Electronic quill handwheel
Software Features – general operation
• Clear, uncluttered screen display
• Prompted data inputs
• English language – no codes
• Soft keys - change within context
• Windows® operating system
• Selectable two or three-axis CNC
• Color graphics with adjustable views
• Inch/mm selectable
• Convenient modes of operation
DRO Mode features
• Incremental and absolute dimensions
• Jog at rapid with override
• Powerfeed X, Y or Z
• Do One CNC canned cycle
• Teach-in of manual moves
• Servo return to 0 absolute
• Tool offsets from library
• Go To Dimensions (O)
• Fine/Course handwheel resolution
Program Mode features
• Auto Geometry Engine (O)
• Geometry-based programming
• 3-axis geometry programming (O)
• Tool Path programming (O)
• Scaling of print data (O)
• Multiple fixture offsets (O)
• Programming of Auxiliary Functions
• Event Comments (O)
• Three-axis Geometry conversational programming (O)
• Incremental and absolute dimensions
• Automatic diameter cutter comp
• Circular interpolation
• Linear interpolation
• Look –graphics with a single button push
• List step – graphics with programmed events displayed
• Alphanumeric program names
• Program data editing
• Program pause
• Conrad – automatic corner radius
• Math helps with graphical interface
• Auto load of math solutions
• Tool step over adjustable for pocket routines
• Pocket bottom finish pass
• Selectable ramp or plunge cutter entry
• Subroutine repeat of programmed events
• Nesting
• Rotate about Z axis for skewing data
• Mirror of programmed events (O)
• Copy (O)
• Copy rotate (O)
• Copy mirror (O)
Canned cycles
• Position
• Drill
• Bolt Hole
• Mill
• Arc
• Circle pocket
• Rectangular pocket
• Irregular Pocket (O)
• Circular profile
• Rectangular profile
• Irregular Profile(O)
• Circle Island (O)
• Rectangular Island (O)
• Irregular Island(O)
• Helix (O)
• Thread milling (O)
• Engrave(O)
• Tapping(O)
• Face Mill (O)
Edit mode Features
• Delete events
• Erase program
• Spreadsheet editing (O)
• Global data change (O)
• G-Code editor (O)
• Clipboard to copy events between programs (O)
Set Up Mode Features
• Program diagnostics
• Advanced tool library
• Tool names
• Tool length offset with modifiers
• Advanced diagnostic routines
• Software travel limits
• Tool path graphics with adjustable views
• Program run time estimation clock (O)
Run Mode Features
• TRAKing
• Trial run at rapid
• 3D CAM file program run
• 3D G code file run with tool comp
• Real time run graphics with tool icon
• Countdown clock to next pause or tool change (O)
Program In/Out Mode Features
• Program storage to USB Flash drive
• CAM program converter
• Converter for prior-generation ProtoTRAK programs
• DXF/DWG file converter (O)
• Selection of file storage locations (O)
• Automatic file back-up routine (O)
• Preview graphics for unopened files (O)
• Networking (O)
Control Options
Advanced Features with Verify Option
• Verify – see a 3-D model machined before cutting chips
• Auto Geometry Engine ™
• 3-axis conversational programming
• Additional Canned Cycles:
- Irregular Pocket
- Circle Island
- Rectangular Island
- Irregular Island
- Irregular Profile
- Helix
- Thread milling
- Engrave
- Tapping
- Face Mill
• G-Code editor
• Countdown clock to next pause or tool change
• Total program time estimator
• Spreadsheet editing
• Global data change
• Scaling of print data
• Multiple fixture offsets
• Event comments
• Tool path conversational programming
• Mirror of programmed events
• Copy with or without offsets
• Copy Rotate
• Copy Mirror
• Clipboard to copy events between programs
Networking Option
• Networking via RJ 45 port
The DXF File Converter Option
• Import and convert CAD data into ProtoTRAK programs
• DXF or DWG files
• Chaining
• Automatic Gap Closing
• Layer control
• Easy, prompted process you can do right at the machine
CAM Out Converter Option
• Save ProtoTRAK files as CAM files for running on different controls
