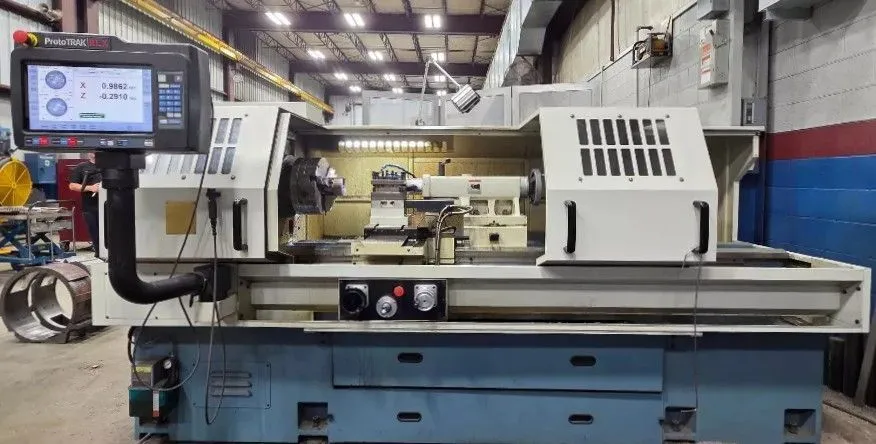

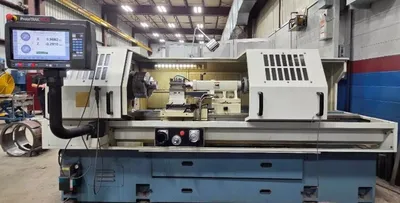

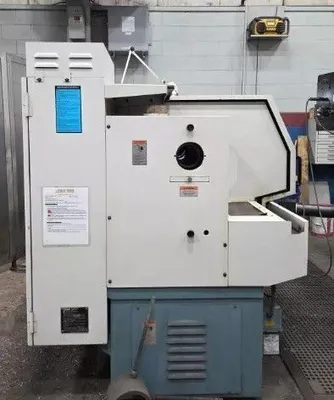

SWI TRAK 2470RX PRECISION CNC/MANUAL TOOLROOOM LATHE

24" x 70" Southwestern Industries TRAK TRL 2470RX Toolroom Lathe
Machine Specifications
• Height of Centers – 12”
• Distance between centers – 70”
• Swing over bed – 24”
• Swing over saddle wings – 24”
• Swing over cross slide – 14.5”
• Cross slide travel – 12.5”

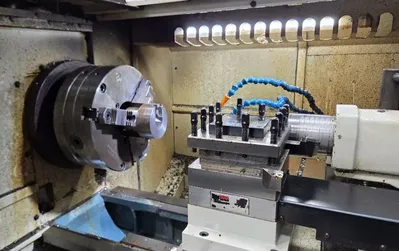

4 Station Turret with 1" Tools
• Tool section max – 1”
• Coolant Reservoir – 15 gallons
• Coolant pump motor – 1/8 HP (O)
• Bed Width – 14.57”
• Bed Height – 15”
• Spindle Nose – D1-8
• Spindle through hole – 4.09”
• Spindle Taper – MT #8
• Spindle diameter front bearing – 5.51”
• Number of bearings – 2
• Number of Spindle Speed Ranges – 2

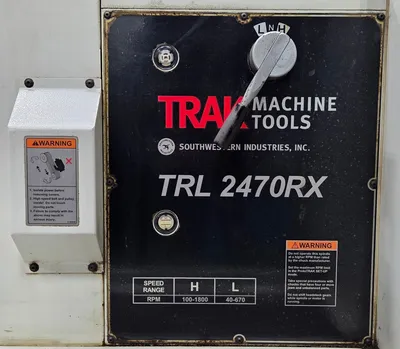

• Spindle Speed Range (RPM) – 40-670, 100-1800
• Spindle HP – 15
• Voltage – 200-240
• Amps/Full Load – 54.7A

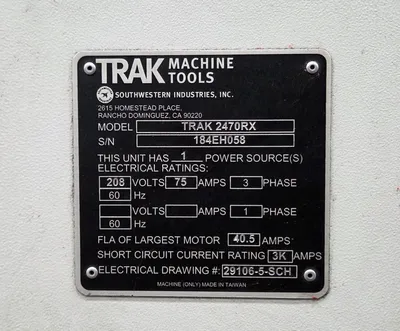

• Machine – 200V/3P/60Hz
• Dimensions net (LxWxH) – 129” x 60” x 77”
• Dimensions ship (LxWxH) – 134” x 64” x 77”
• Weight net – 6500 lbs.
• Weight ship – 6900 lbs.

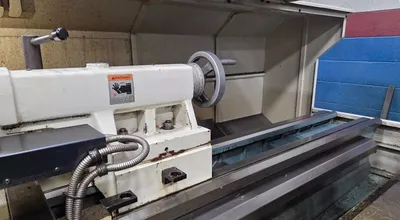

• Tail stock quill travel – 8.5"
• Quill diameter – 3.5"
• Quill taper hole – MT #5
• Dynamic spindle motor brake
• Way surface hardness – 480-560 HB
• Quiet operation

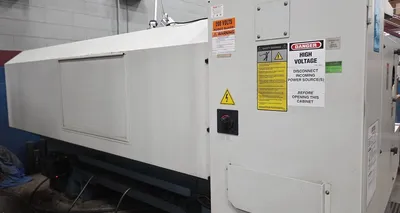

• Dual sliding doors to control chips and coolant with one removable door
• Meehanite cast monolithic base
• Heavy ribbed base construction
• Bedways hardened and ground
• Sliding surfaces Turcite coated
• Dovetails on cross slide, V-ways on saddle
• Adjustable saddle gibs
• Maximum rapid – 400 ipm on z-axis
ProtoTRAK RLX System Specifications

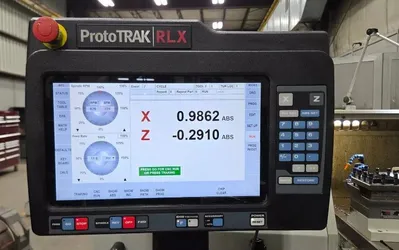

Pendant Control Hardware
• Two-axis CNC, two-axis DRO
• Electronic Handwheels for manual operation
• 15.6” LCD with Touchscreen
• Intel® 2.0 GHz processor
• 4 GB Ram
• At least 32GB of mSATA SSD
• 5 USB connectors
• 2 Ethernet Ports (1 for user and 1 for control system)
• Override of program feedrate
• Override of spindle speed
• LED status lights built into run panel
• E-stop
• Spindle Control (FWD, REV, OFF)
• Feed STOP and GO
• Fine vs Course EHW resolution control
• Accessory button to control coolant and AUTO mode in RUN mode
• Power Reset Button
• Jogstick for convenient jog
Computer Module Control Hardware
• 2 axis motor control – X and Z axis, Axis to control CNC Turret
• 14 inputs
• 9 outputs
Software Features – General Operation
• Clear, uncluttered screen display
• Prompted data inputs
• English language – no codes
• Soft keys – change within context
• Windows® operating system
• Color graphics with adjustable views
• Gestures for pan, zoom, rotate
• Inch/mm selectable
• Convenient modes of operation
• Networking
Info Softkeys
• Status
• Tool Table
• EPA
• Math Help
• Warnings
• Defaults
• Keyboard
• Calculator
DRO Mode Features for Manual Machining
• Incremental and absolute dimensions
• Powerfeed X or Z
• GO TO
• Do One – Tapers for any angle
• Do One – Radius
• Do One – Fillet
• Thread Repair (O)
• MAX RPM – set maximum RPM for spindle to run
• Servo motion to return to home
• Tool offsets from library
• Spindle speed setting with override
Program Mode Features
TRAKing software option
• Geometry-based programming
• Incremental and absolute dimensions
• Automatic tool nose radius cutter compensation
• Circular interpolation
• Linear interpolation
• Look – graphics at all times
• List step – graphics with programmed events displayed
• Alphanumeric program names
• Canned Cycles
• Program data editing
• Options within events
• Math helps with graphical interface
• Subroutine repeat of programmed events
• Nesting
• Programmable spindle speeds
Canned Cycles
• Position
• Drill
• Bore
• Turn
• Arc
• Cycle
• Thread
• Groove
• Tap (O)
• Cut Off
Edit Mode Features
• Delete events
• Search Edit (O)
• Erase program
• G Code Editor (O)
• Clip Board (O)
Set Up Mode Features
• Program Diagnostics
• Software travel limits
• Tool path graphics with adjustable views
• Verify Software
• Service Codes
• CNC Turret Homing
• Advanced Diagnostics routines
Run Mode Features
• CAM file program run
• G code file run with tool comp
• Real time run graphics with tool icon
Program In/Out Mode Features
• Simple program storage to USB device or Network
• CAM program converter
• Converter for prior-generation ProtoTRAK programs
• Open and Save Temp Feature
• Cut, Copy, Delete, Paste of program(s)
• Creating folders
• Program Look preview of files
Advanced Features Option – Lathes
• Gang tool operation
• Custom thread
• Tap
• Event comments
• Thread repair
• Verify – Make Part feature
• Clipboard
• G Code Edit
• Search Edit
