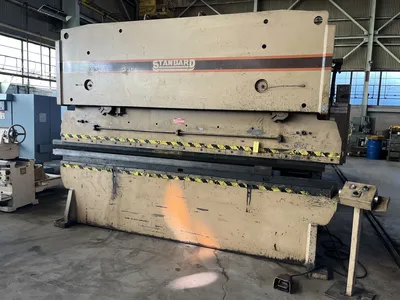

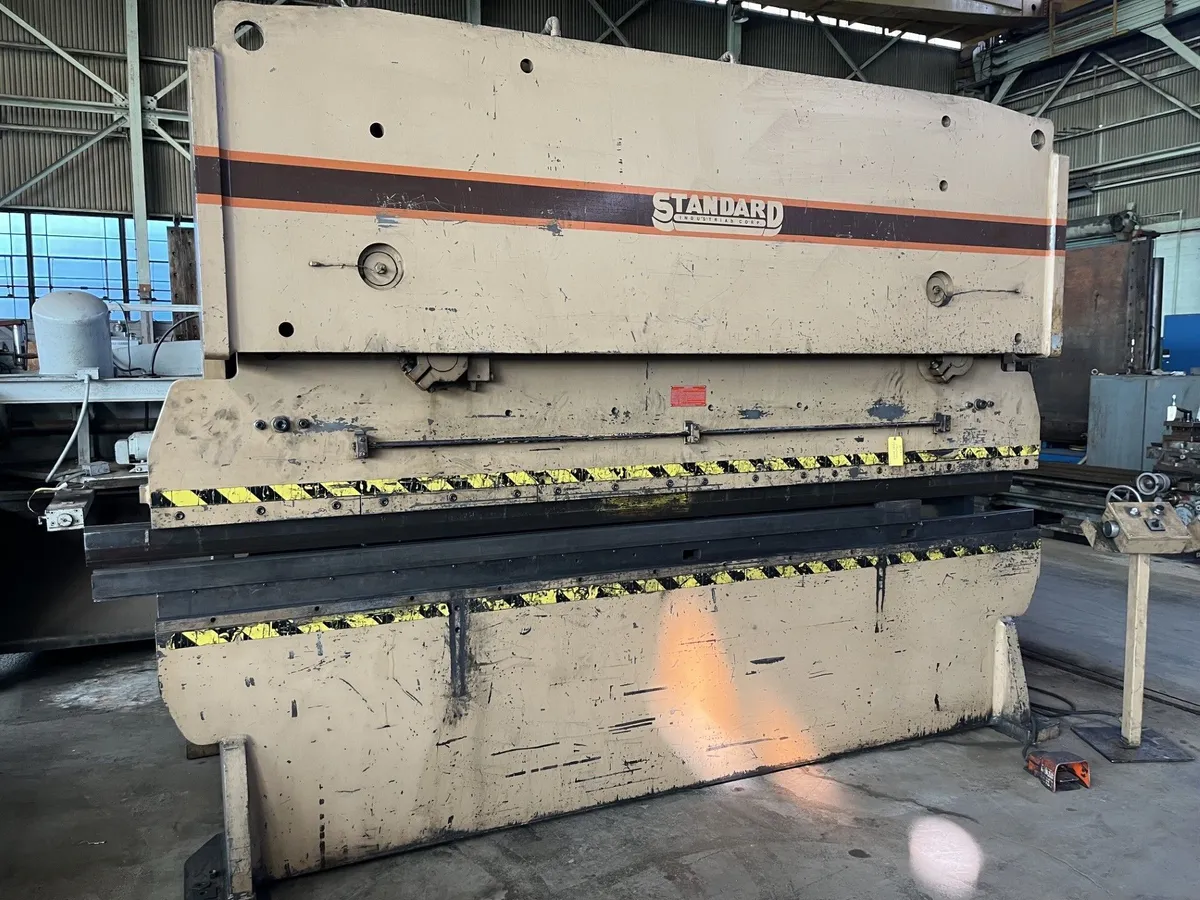

12’ STANDARD INDUSTRIAL 200 TON “AB200-12” HYDRAULIC PRESS BRAKE
Have one to sell?
ConditionUsed
1 available
$27,500.00 USD
12’ STANDARD INDUSTRIAL 200 TON “AB200-12” HYDRAULIC PRESS BRAKE - 12’ Overall - 10’6” Between Housings -
12’ STANDARD INDUSTRIAL 200-T0N “AB200-12” HYDRAULIC PRESS BRAKE

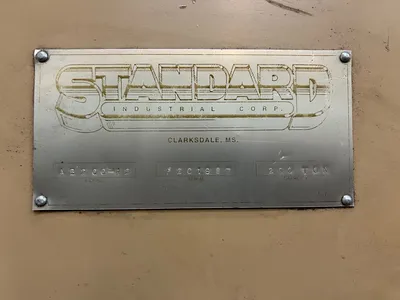

Serial No F201987, Model AB200–12
EQUIPPED WITH:

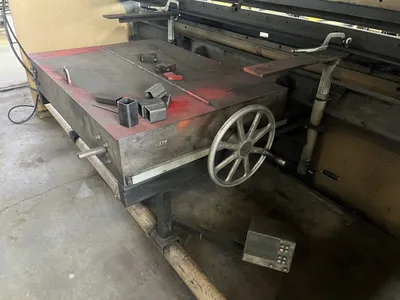

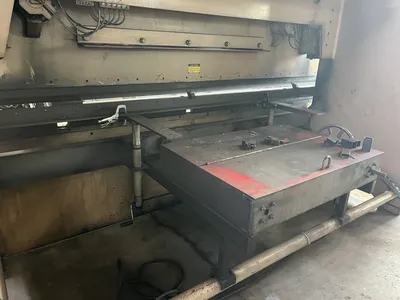

Rear Operated Manual Back Gauge w/Digital Readouts
Hydraulic/Mechanical Drive
Fully Adjustable Stroke Length
Four Position In Line Depth Stop
Hydraulic Pressure Tonnage Control
Foot Pedal

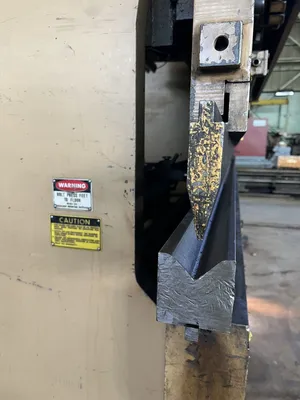

Lower Die Holder - Set Of Dies In Machine
No Pit Required
CATALOG SPECIFICATIONS:
Tonnage Capacity, Forming 200 TONS
Tonnage Capacity, Punching 135 TONS
Overall Length Bed & Ram 12’
Distance Between Housings 10’6”
Stroke Length 6”
Open Height 13”
Closed Height 7”
Throat Depth 6”
Ram Speed Approach 92 IPM
Ram Speed Pressing 25 IPM
Ram Speed Return 120 IPM
Bed Width 5”
Bed Height, Approximately 36”
Motor Horsepower 25 HP
Overall Height 113”
Weight Approximately 30000 LBS
F.O.B. OUR CINCINNATI WAREHOUSE
12’ STANDARD INDUSTRIAL 200 TON “AB200-12” HYDRAULIC PRESS BRAKE - 12’ Overall - 10’6” Between Housings -
Imperial
| Tonnage | 200 T |
| Type | HYD |
| Overall Length | 12' |
| Between Housings | 10' |
| Stroke | 8" |
| Dimensions | 12 ft overall length; 113 in overall height |
| Weight | 30000 |
12’ STANDARD INDUSTRIAL 200-T0N “AB200-12” HYDRAULIC PRESS BRAKE
Serial No F201987, Model AB200–12
EQUIPPED WITH:
Rear Operated Manual Back Gauge w/Digital Readouts
Hydraulic/Mechanical Drive
Fully Adjustable Stroke Length
Four Position In Line Depth Stop
Hydraulic Pressure Tonnage Control
Foot Pedal
Lower Die Holder - Set Of Dies In Machine
No Pit Required
CATALOG SPECIFICATIONS:
Tonnage Capacity, Forming 200 TONS
Tonnage Capacity, Punching 135 TONS
Overall Length Bed & Ram 12’
Distance Between Housings 10’6”
Stroke Length 6”
Open Height 13”
Closed Height 7”
Throat Depth 6”
Ram Speed Approach 92 IPM
Ram Speed Pressing 25 IPM
Ram Speed Return 120 IPM
Bed Width 5”
Bed Height, Approximately 36”
Motor Horsepower 25 HP
Overall Height 113”
Weight Approximately 30000 LBS
F.O.B. OUR CINCINNATI WAREHOUSE
