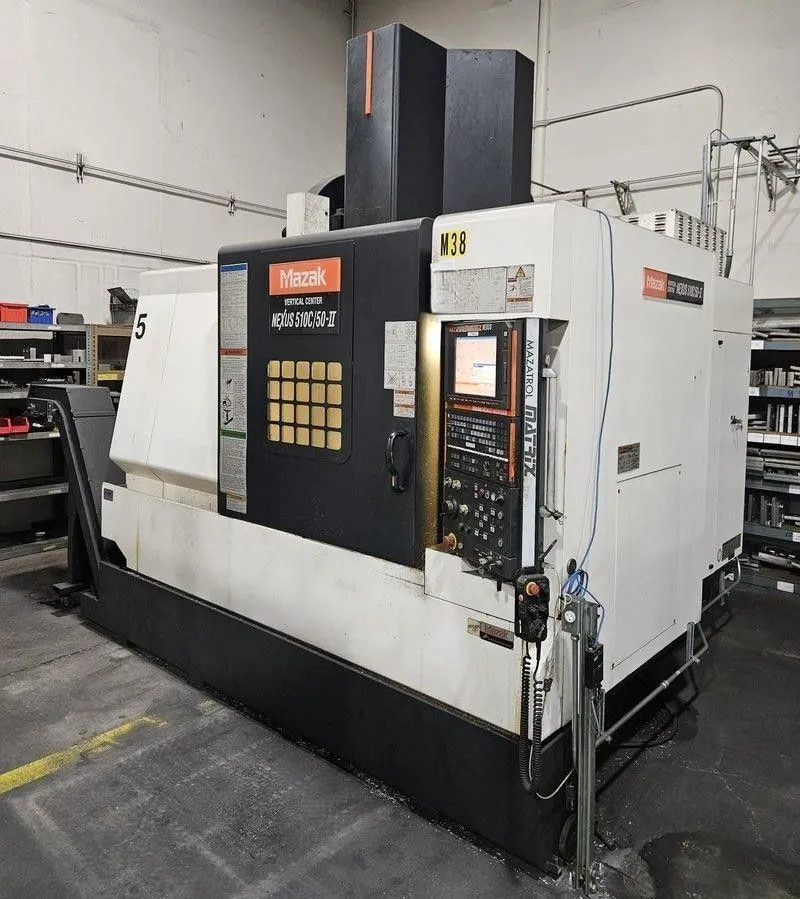

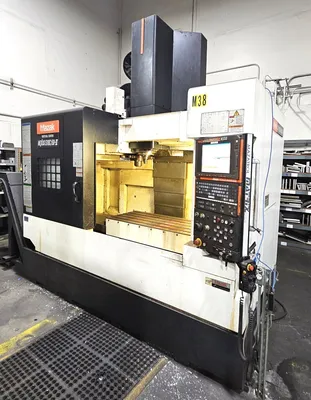

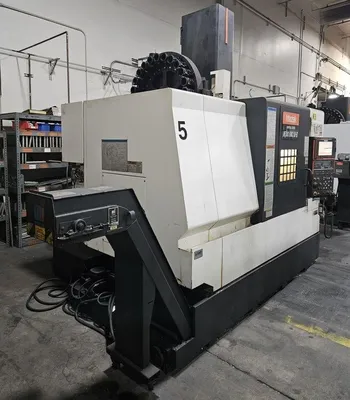

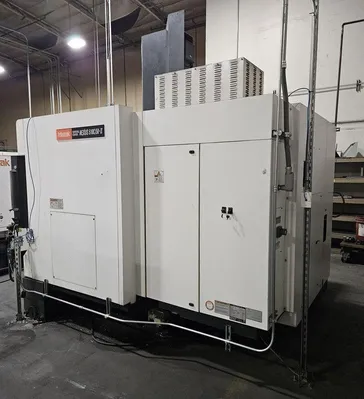

Mazak Nexus 510C/50-II 3-Axis CNC Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
$62,500.00 USD
Mazak Nexus 510C/50-II 3-Axis CNC Vertical Machining Center
Mazak
Nexus 510C/50-II
Axis: 3
Serial Number: 240831
Year: 2012
Cut Hours: 8,677
Axis Travels:
X-Axis Travel: 41 inches (1,041.4 mm)
Y-Axis Travel: 20 inches (508 mm)
Z-Axis Travel: 20 inches (508 mm)

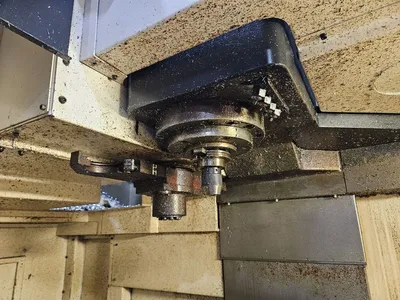

Spindle:
Spindle Taper: CAT 50
Spindle Speed: 6,000 RPM
Spindle Motor: 25 HP (18.6 kW)

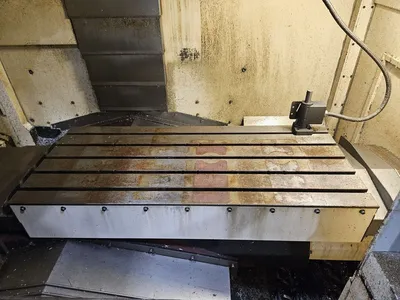

Table:
Table Size: 51.18″ × 21.65″ (1,300 mm × 549.91 mm)
Table Load Capacity: 2,640 lbs (1,197 kg)
Spindle Nose to Table Top: 5.9″ – 25.98″
Automatic Tool Changer (ATC):
Capacity: 24-position (side-mount ATC)
Max Tool Diameter: 4.9″
Max Tool Length: 13.8″
Max Tool Weight: 17 lbs
Tool Change Time: 1.3 – 2.9 seconds (chip-to-chip)
Feed Rates & Performance:
Rapid Traverse Rates (X, Y, Z): 1,417 IPM
Cutting Feed Rate: ~787 IPM
Utilities & Physical Dimensions:
Power Requirement: 220 V, ~35 kVA, 3-Phase
Air Requirement: 80 PSI, 4 SCFM
Machine Weight: 15,500 lbs
Overall Dimensions (L × W × H): 120” x 112” x 114”
Location: Conroe, TX
Imperial
| X | 41" |
| Y | 20" |
| Z | 20" |
| Power | 25 hp |
| RPM | 6,000 RPM |
| # ATC | 24 |
| Taper | 50 |
| Pallet-W | 21.65" |
| Pallet-L | 51.18" |
| # Axis | 3 |
| Dimensions | 120” x 112” x 114” |
| Weight | 15,500 lbs |
Mazak Nexus 510C/50-II 3-Axis CNC Vertical Machining Center
Mazak
Nexus 510C/50-II
Axis: 3
Serial Number: 240831
Year: 2012
Cut Hours: 8,677
Axis Travels:
X-Axis Travel: 41 inches (1,041.4 mm)
Y-Axis Travel: 20 inches (508 mm)
Z-Axis Travel: 20 inches (508 mm)
Spindle:
Spindle Taper: CAT 50
Spindle Speed: 6,000 RPM
Spindle Motor: 25 HP (18.6 kW)
Table:
Table Size: 51.18″ × 21.65″ (1,300 mm × 549.91 mm)
Table Load Capacity: 2,640 lbs (1,197 kg)
Spindle Nose to Table Top: 5.9″ – 25.98″
Automatic Tool Changer (ATC):
Capacity: 24-position (side-mount ATC)
Max Tool Diameter: 4.9″
Max Tool Length: 13.8″
Max Tool Weight: 17 lbs
Tool Change Time: 1.3 – 2.9 seconds (chip-to-chip)
Feed Rates & Performance:
Rapid Traverse Rates (X, Y, Z): 1,417 IPM
Cutting Feed Rate: ~787 IPM
Utilities & Physical Dimensions:
Power Requirement: 220 V, ~35 kVA, 3-Phase
Air Requirement: 80 PSI, 4 SCFM
Machine Weight: 15,500 lbs
Overall Dimensions (L × W × H): 120” x 112” x 114”
Location: Conroe, TX
