6in Kitagawa B-206 3 Jaw Lathe Power Chuck

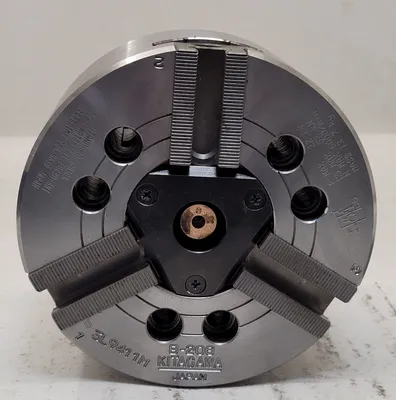

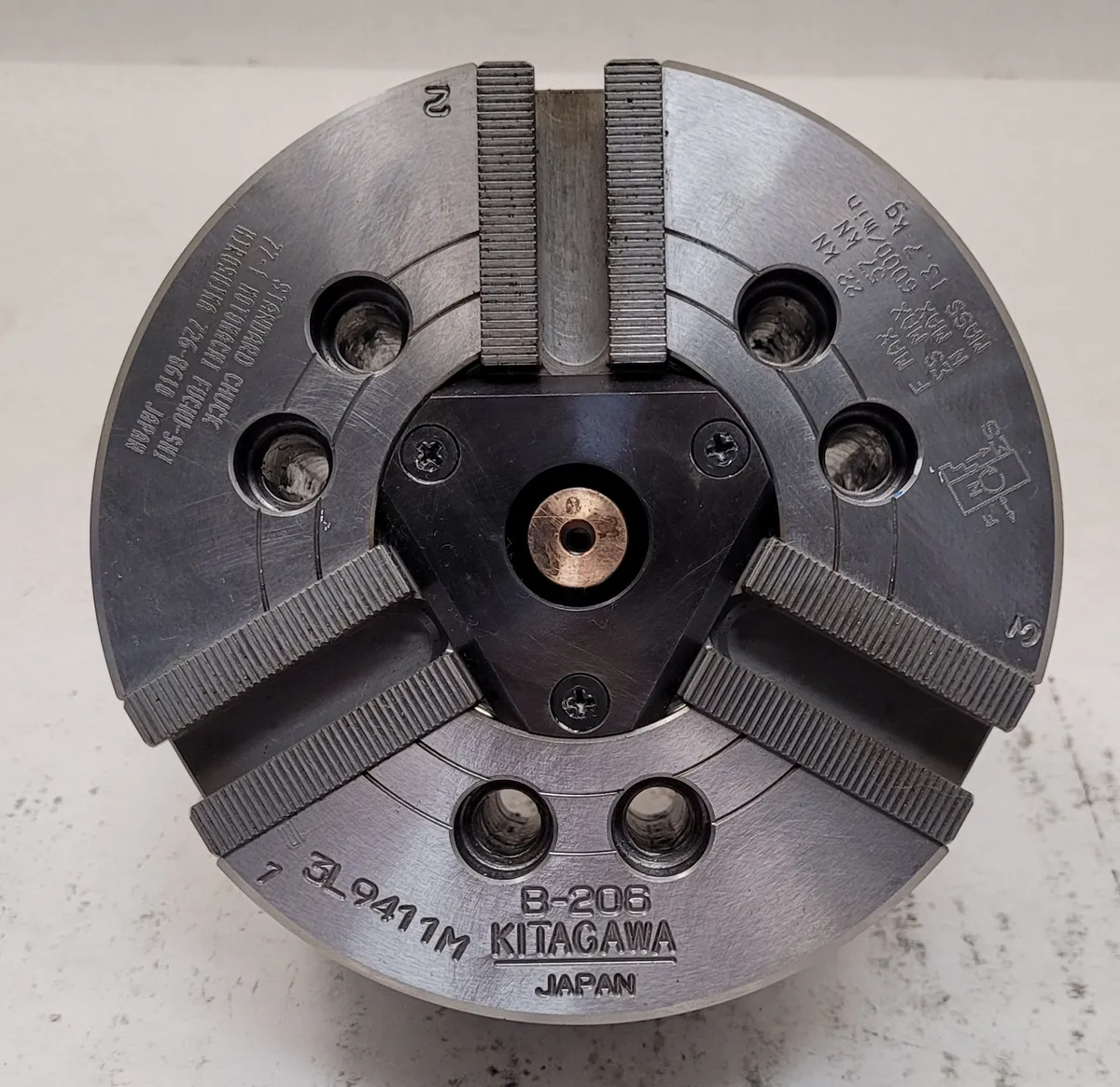

Kitagawa B-206 3 Jaw Chuck

New
Brand: Kitagawa
Model: B-206

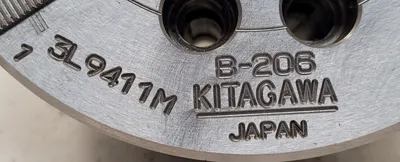

Serial: 3L9411M

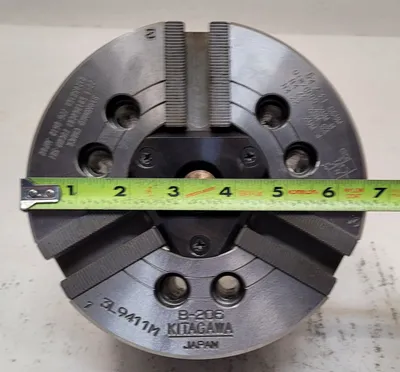

Chuck Size / Diameter: 6 inches (169 mm)
Through-Hole Diameter: 45 mm (1.772 inches)

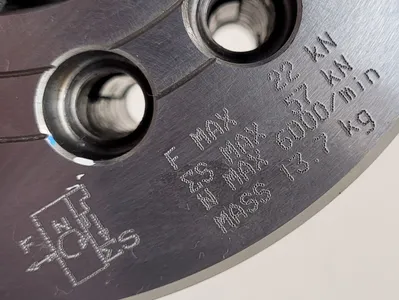

Max Speed: 6,000 RPM
Max Static Gripping Force: 57 kN (approx. 12,555 lbs / 5,812 kgf)
Max Draw Bar Pull Force: 22 kN (approx. 4,846 lbs / 2,243 kgf)
Jaw Stroke (Diameter): 5.5 mm (0.217 inches)
Plunger Stroke: 12 mm (0.472 inches)
Master Jaw Serration: 1.5 mm x 60°
Net Weight (with soft top jaws): 11.9 kg (26.2 lbs)
Moment of Inertia: 0.058 kg·m²
Matching Cylinder: S1246

Matching Hard Top Jaw: HB06B1
Matching Soft Top Jaw: SB06L1A

-WILL NEED TO GET JAWS, Part Numbers are above-

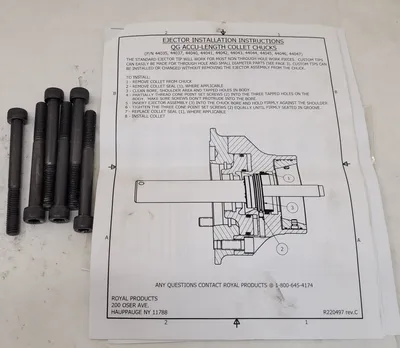

Comes with bolts and paper work for the part in through hole
