Dorian Tools SD35CXA Quick Change Tool Post w/ Holders 6 Piece Set

Dorian Tools SD35CXA Quick Change Tool Post w/ Holders 6 Piece Set

USED
Brand: Dorian Tools
Type: SD35CXA
Quick Change Tool Post
Total Pieces in Set, including post: 6
Lathe Swing: 14" to 17"
Tool Capacity: 3/4" to 1" (20–25 mm)
Optimum Center Height: 1.625" (41.28 mm)
Holding Post Thread Size: 3/4"-16
Tool Post Style: Wedge type
Repeatability: Precise within .0001"

A (Base Width): 3.500" (88 mm)
B (Body Height): 3.250" / 2.250" depending on reference surface
C (Overall Height): 5.650"
D (Bolt Hole Diameter): 0.750" (19 mm)
E (Centerline-to-Body): 1.199" (30.45 mm)
-Diagram in Photos

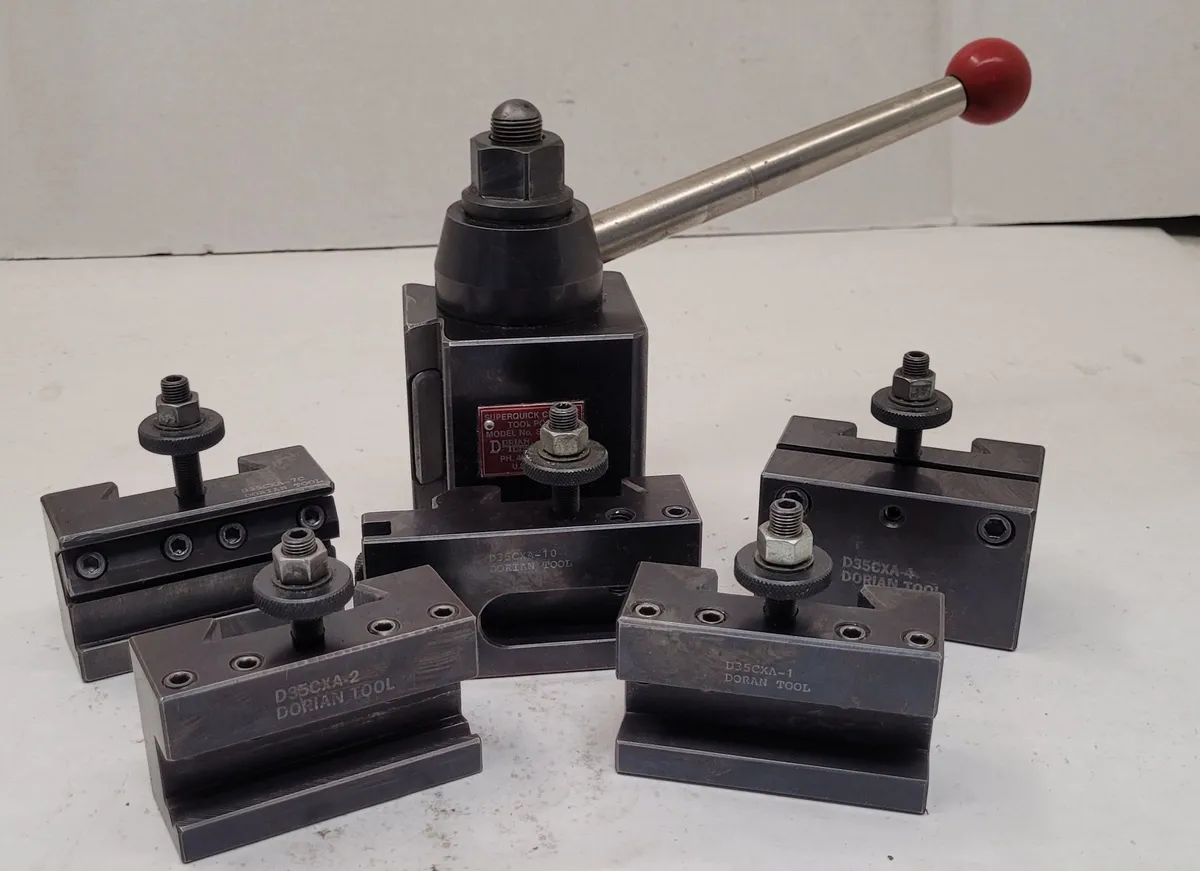

Includes the following holders:
D35CXA-1

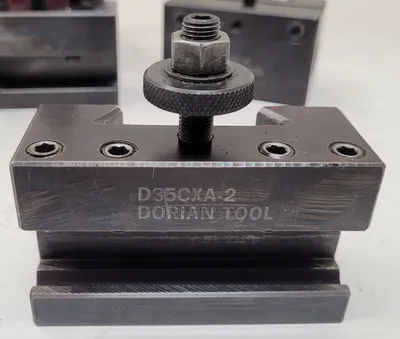

D35CXA-2
D35CXA-4
D35CXA-7C
D35CXA-10
