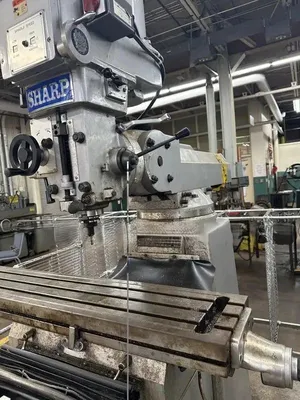

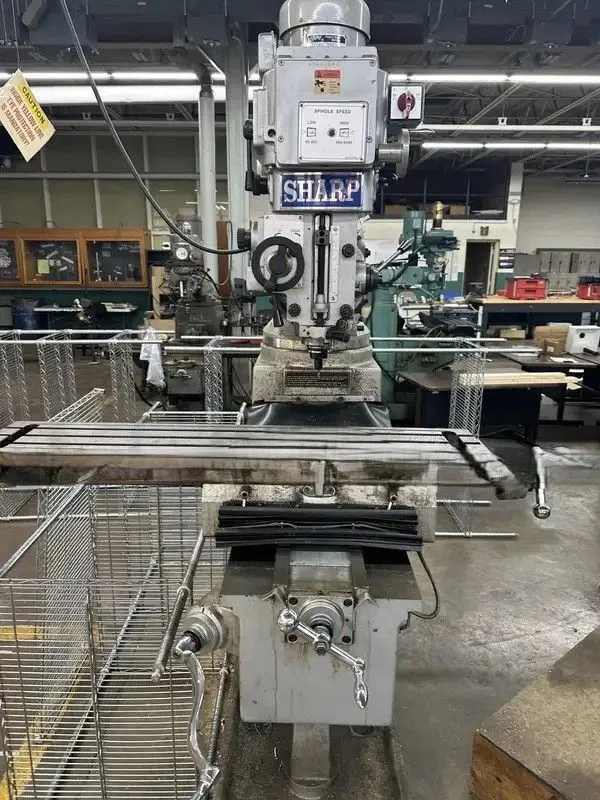

Sharp Model TMV-1 VERTICAL MILLING MACHINE 10x54" Table, 5HP

Sharp Mill TMV-1 Model

Manufacturer: Sharp
Model: TMV-1
Type: Vertical Knee Mill
Serial: 20403944

Key Specifications
Table Size: 10" x 54" (with 39" longitudinal X-axis travel and 16.3" cross Y-axis travel)

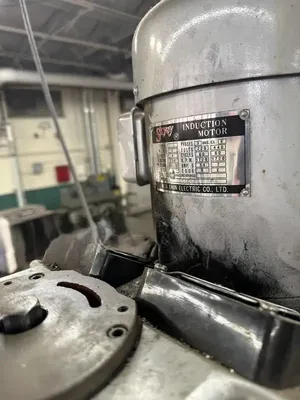

Spindle Motor: 5 HP, variable speed ranging from 60 to 4,500 RPM
Spindle Taper: NT-40 (NST #40)
Quill Travel: 5" with mirror-finished, chromed, quill down feed accuracy

Design Highlights
Box Ways: Hardened and ground box ways on the column and saddle offer superior rigidity and vibration dampening compared to standard knee mills. [1, 2]
Saddle Design: The underside of the saddle is hand-scraped for optimal oil retention, preventing chips and dirt from embedding into the knee ways. [1]
Backlash Control: Utilizes a double-nut backlash system on the table and saddle to keep feed screws in constant contact.

Dimensions 85 × 85 × 90 inches
Weight 3700lbs
Specifications Subject to Verification
