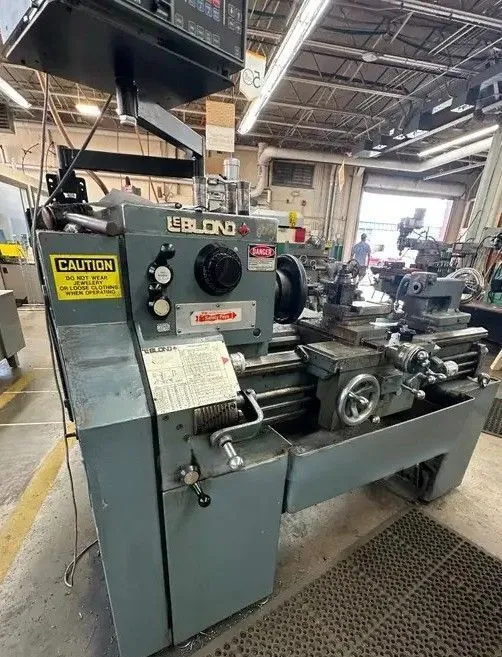

19" x 54" LeBlond Regal 19 Servo Shift Engine Lathe w/DRO & Inch/Metric

The LeBlond Regal 19" x 54" Servo Shift Engine Lathe featuring inch/metric threading
19-inch swing over the bed,
54 inches of distance between centers,
a hydraulic servo-shift dial for changing speeds.
It cuts standard inch threads from 2 to 112 TPI and metric thread pitches through a quick-change gear box.
Key Machine Specifications
Swing Over Bed: 19" (actual approx. 19-1/4")
Swing Over Cross-Slide: 12-1/4"
Distance Between Centers: 54"
Hole Through Spindle: 3-1/16"
Spindle Nose: L2
Spindle Speeds: 40 to 1600 RPM (48 changes via servo shift)
Tailstock Taper: #4 Morse Taper (MT)
Threading and Feed Capabilities
Inch Threads (TPI): 2 to 112 TPI (48 changes)
Metric Threads: Range of 0.5 to 2.8 mm pitch (or variant gear setup depending on the specific metric transposing box)
Longitudinal Feeds: 0.0018 to 0.104 IPR (Inches Per Revolution)
