| Swing | 16" | 406.4 mm |
| Machining Length | 30" | 762 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2.12" | 53.848 mm |
| Power | 7.5 hp | 5.6 kW |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Turning Dia | 16" | 406.4 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (ProtoTRAK SLX) | CNC (ProtoTRAK SLX) |
| Dimensions | 79 × 38 × 54 in | 79 × 38 × 54 in |
| Weight | 2200 lbs | 2200 lbs |

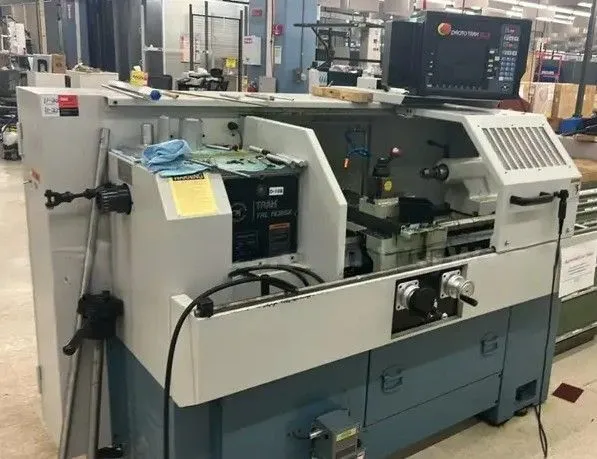

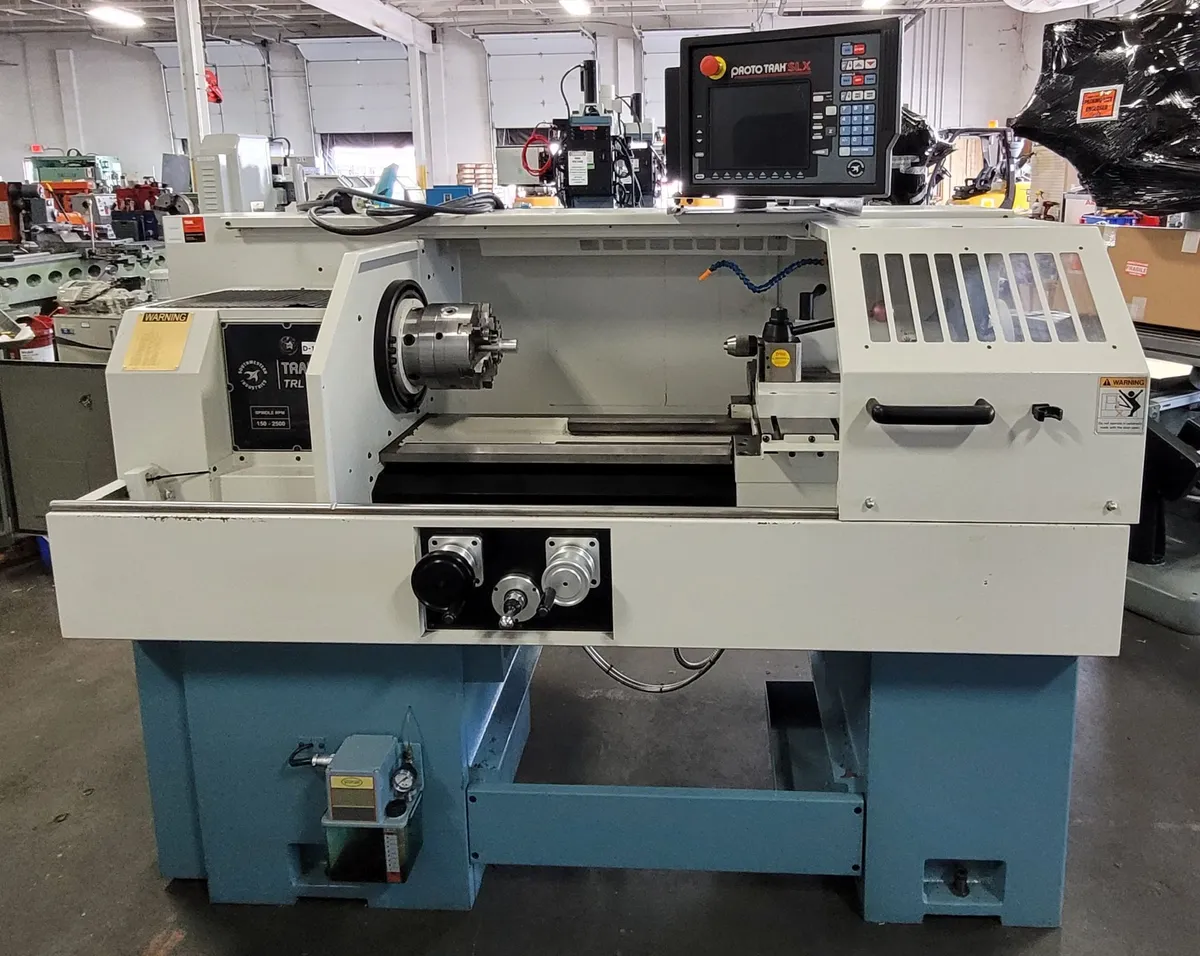

SOUTHWESTERN INDUSTRIES TRAK TRL1630SX CNC LATHE
New: 2016
Specifications:
Axis Configuration: 2-Axis
Chuck Size: 10 in 6-Jaw
Swing Over Bed: 16 in
Swing Over Saddle Wings: 16 in
Swing Over Cross Slide: 8.6 in
Distance Between Centers: 30 in
Cross Slide Travel: 9.6 in
Maximum Tool Section: 3/4 in
Spindle Through Hole: 2.12 in
Spindle Nose: D1-6 Camlock
Spindle Taper: MT #6
Spindle Speed Range: 150 – 2500 RPM
Spindle Motor: 7.5 HP
Tailstock Quill Travel: 5 in
Tailstock Quill Diameter: 2.36 in
Tailstock Taper: MT #4
Maximum Rapid Feed (X / Z): 100 / 150 IPM
Coolant Tank Capacity: 11 Gallons
Coolant Pump Motor: 1/8 HP
Electrical Requirements (Machine): 220V / 3 Phase / 60 Hz
Electrical Requirements (Control): 110V / 1 Phase / 8 Amp
Machine Dimensions (Net): 79 in × 38 in × 54 in
Shipping Dimensions: 87 in × 45 in × 67 in
Machine Weight (Net): 2,200 lbs
Shipping Weight: 2,750 lbs
Equipped with:

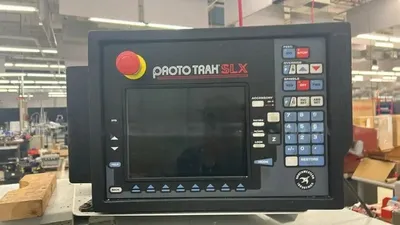

ProtoTRAK SLX CNC Control
Collet Closure Attachment and Collets
4-Way Quick Change Tool Post
Follow Rest
10 in 6-Jaw Chuck
Tailstock
Features:
Manual or CNC Operation
Electronic Handwheels and Jogstick
Brushless Servo Motors
Inverter-Duty Spindle Drive
Programmable Spindle Speeds
Sliding Door for Easy Setups
Bedways Hardened and Ground
Turcite-Coated Sliding Surfaces
Dovetails on Cross Slide
V-Ways on Saddle
Adjustable Saddle Gibs
Dynamic Spindle Braking
Oil Bath Headstock Lubrication
This equipment has been sold. Similar equipment available now is shown below.
