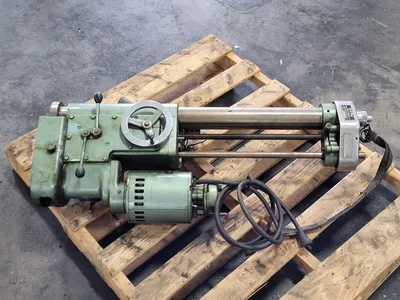

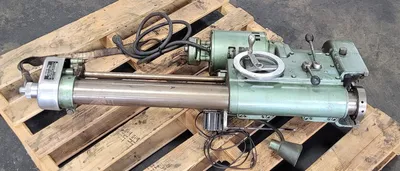

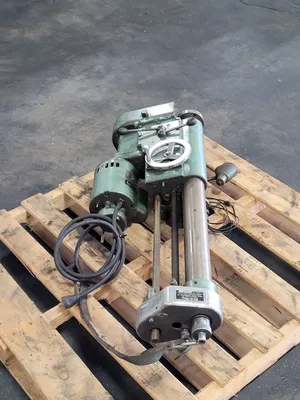

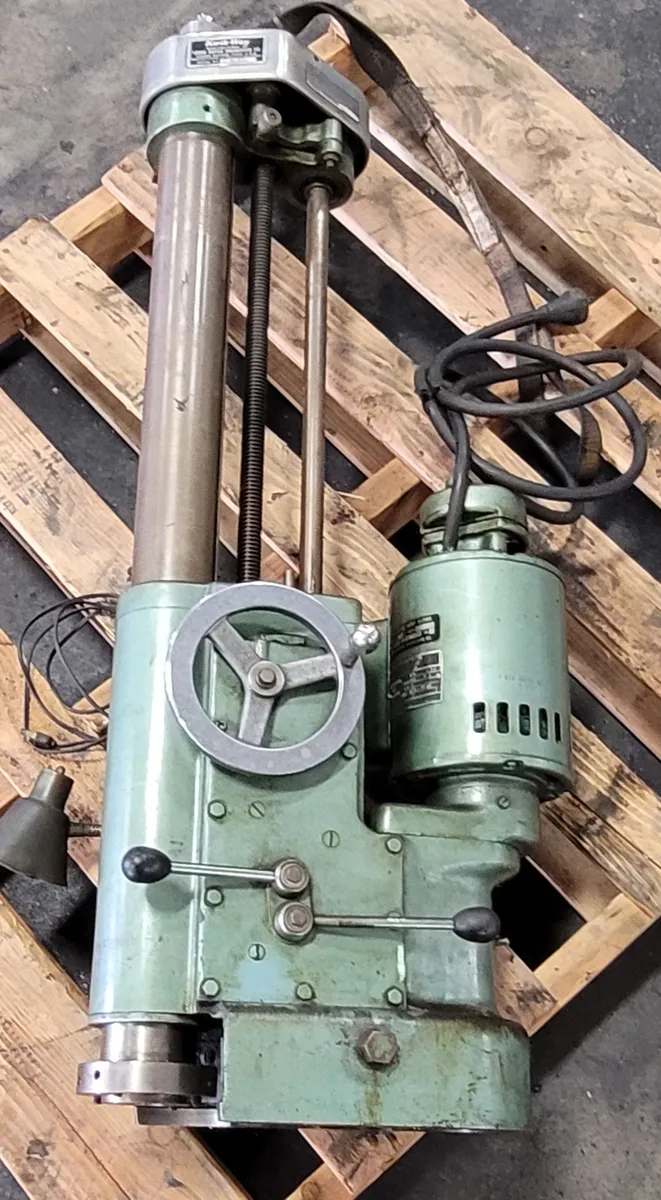

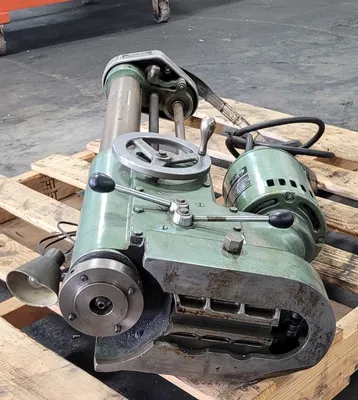

Kwik-Way Cylinder Boring Bar Model FL

Kwik-Way Cylinder Boring Bar Model FL

The Kwik-way model FL is a heavy-duty portable cylinder boring bar designed for automotive and industrial engine rebuilding, featuring a 3-inch to 6.75-inch bore capacity and an 18-inch stroke length.

USED
Brand: Kwik-Way
Tool Type: Cylinder Boring Bar
Model: FL

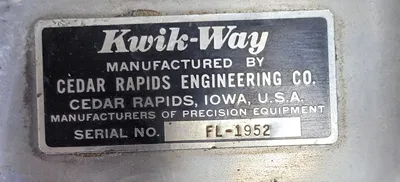

Serial Number: FL-1952

Bore Capacity: 3.00 inches to 6.75 inches
Stroke / Travel: 18 inches
Tool Bit Holder: 5/8" x 5/8"

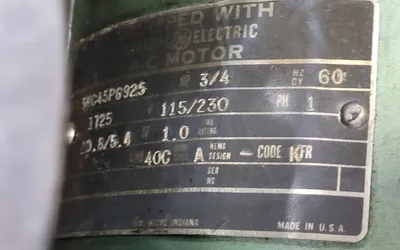

Motor Power: 3/4 HP
Spindle Speed: 1725 RPM

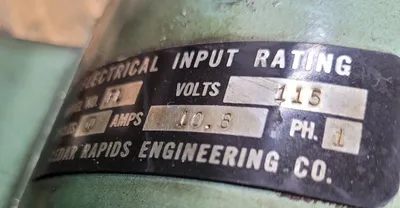

Electrical Requirement: 115V, single-phase, 60 Hz

Key Features
Portable Design: Mounts directly to engine blocks for precise on-site cylinder reboring.

Centering Mechanism: Uses an expansion-finger/centering-finger assembly to true the bar centrally in the bore before clamping.

Auto-Shutoff: Integrated depth stop and safety clutch mechanism to disengage feed automatically at the end of the cut
Bore Capacity: Handles larger diameters from 3.00″ to 6.75″

Shipping Dimensions:
48x40x18 – inches
Weight: 310lbs

Comes with manual and as pictured. no tool kit.

Specifications Subject to Verification
