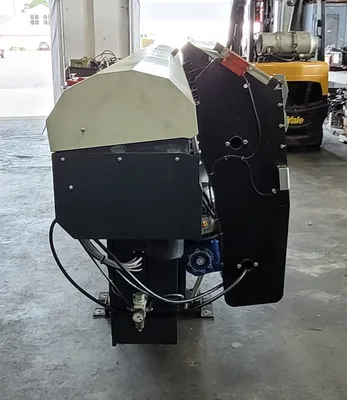

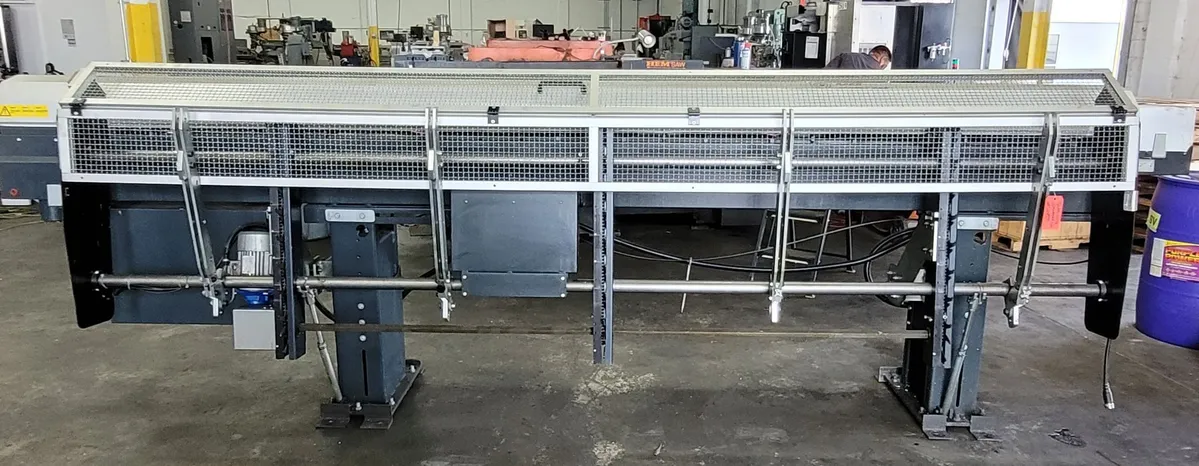

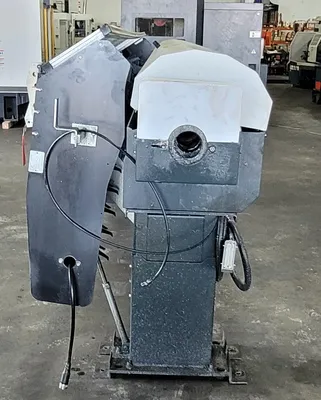

LNS Sprint 565 Bar Feeder

LNS Sprint 565 Bar Feeder

Serial Number: 240798
Year: 2015
Income Voltage: 220-480V
Control Voltage: 24V DC
3 Phase
Hertz: 50/60
FLA: 5.5-1.6a

Capacity & Dimensions
Diameter Range: 5 mm – 65 mm (1/4" to 2-1/2")
Bar Length Options: 2200 mm / 3200 mm / 3800 mm / 4200 mm (up to ~14 ft)
Loading Capacity: 9 bars (for max ø 65 mm) or 11 bars (for ø 52 mm)
Max Remnant Length: 450 mm
Headstock Type: Fixed
Partial Changeover: 2 Minutes
Total Changeover: 10 Minutes

Machine Weight: Approx. 3,080 lbs (1,397 kg)
Machine Overall Dimensions: 180”L x 54”W x 58”H

Swiss Made

Specifications Subject to Verification
