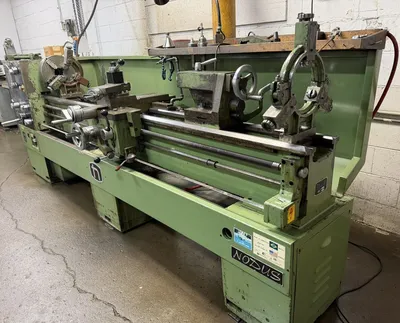

| Swing | 17.68" | 449.07 mm |
| Gap Swing | 20" | 508 mm |
| Centers | 85" | 2,159 mm |
| Spindle Bore | 2.03" | 51.562 mm |
| RPM | 2,000 RPM | 2,000 RPM |
| Power | 8 hp | 6 kW |
| Taper | D1-6 | D1-6 |
| Dimensions | 141 L x 42 W x 64 to 67 H | 141 L x 42 W x 64 to 67 H |
| Weight | 7000 lbs | 7000 lbs |
Capacity:
Swing Over Bed: 17.68"
Swing in the Gap: 20"
Swing Over Cross Slide: 11"
Distance Between Centers: 85"
Bed Length: 109"
Spindle:
Spindle Bore (Through Hole): 2.03" (typically listed as 2")

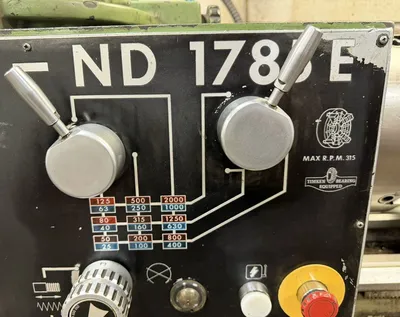

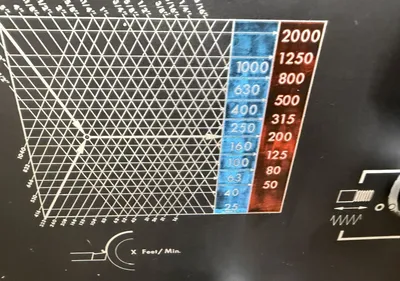

Spindle Speed Range: 28 to 2,000 RPM (Variable speed)
Motor & Electrical:
Main Motor Power: 8 HP

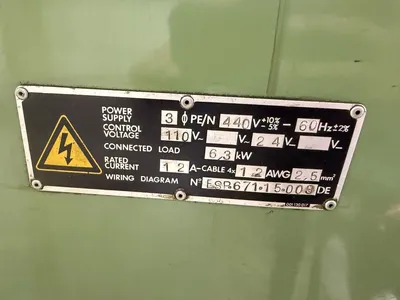

Electrical Requirements: wired 440V, 3-Phase

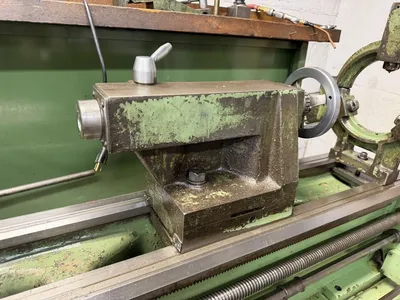

Tailstock & Feeds:
Quill Travel: 8"

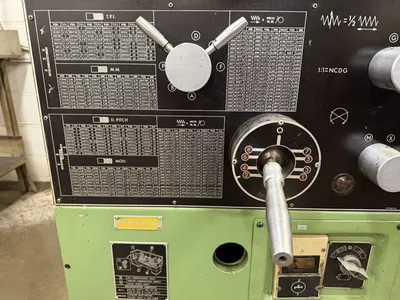

Threading: Capable of both SAE (Inch) and Metric threading
Dimensions & Weight:
Machine Dimensions: ~141" L x 42" W x 67" H
Approximate Shipping Weight: ~7,000 lbs
This equipment has been sold. Similar equipment available now is shown below.
