| Rect-Cap (H) | 10" | 254 mm |
| Rect-Cap (W) | 12" | 304.8 mm |
| Rounds-Cap | 10" | 254 mm |
| Power | 5 hp | 3.7 kW |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Width | 1.25" | 31.75 mm |
| Blade Thickness | 0.042" | 1.0668 mm |
| Blade Length | 138" | 3,505.2 mm |

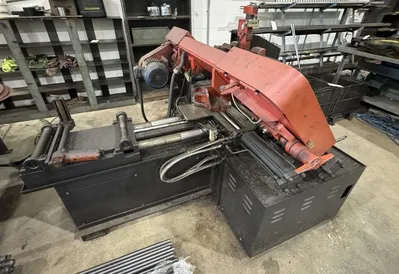

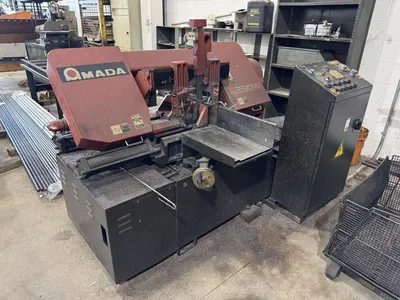

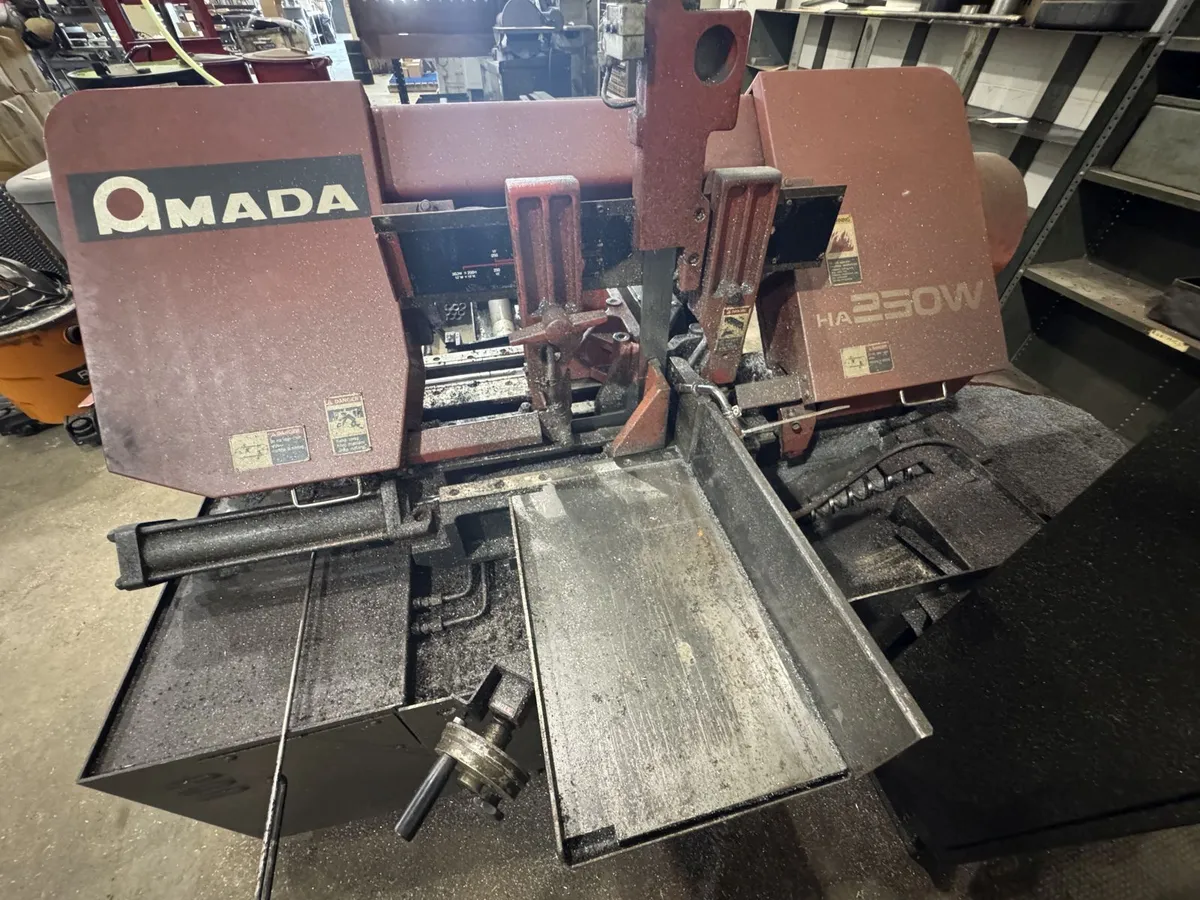

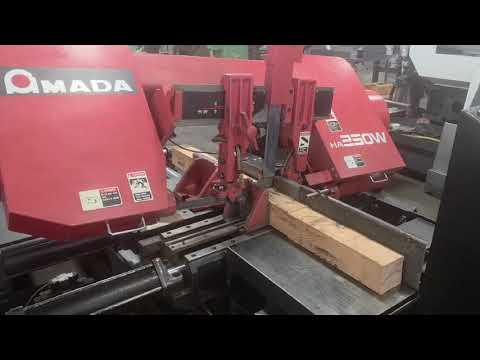

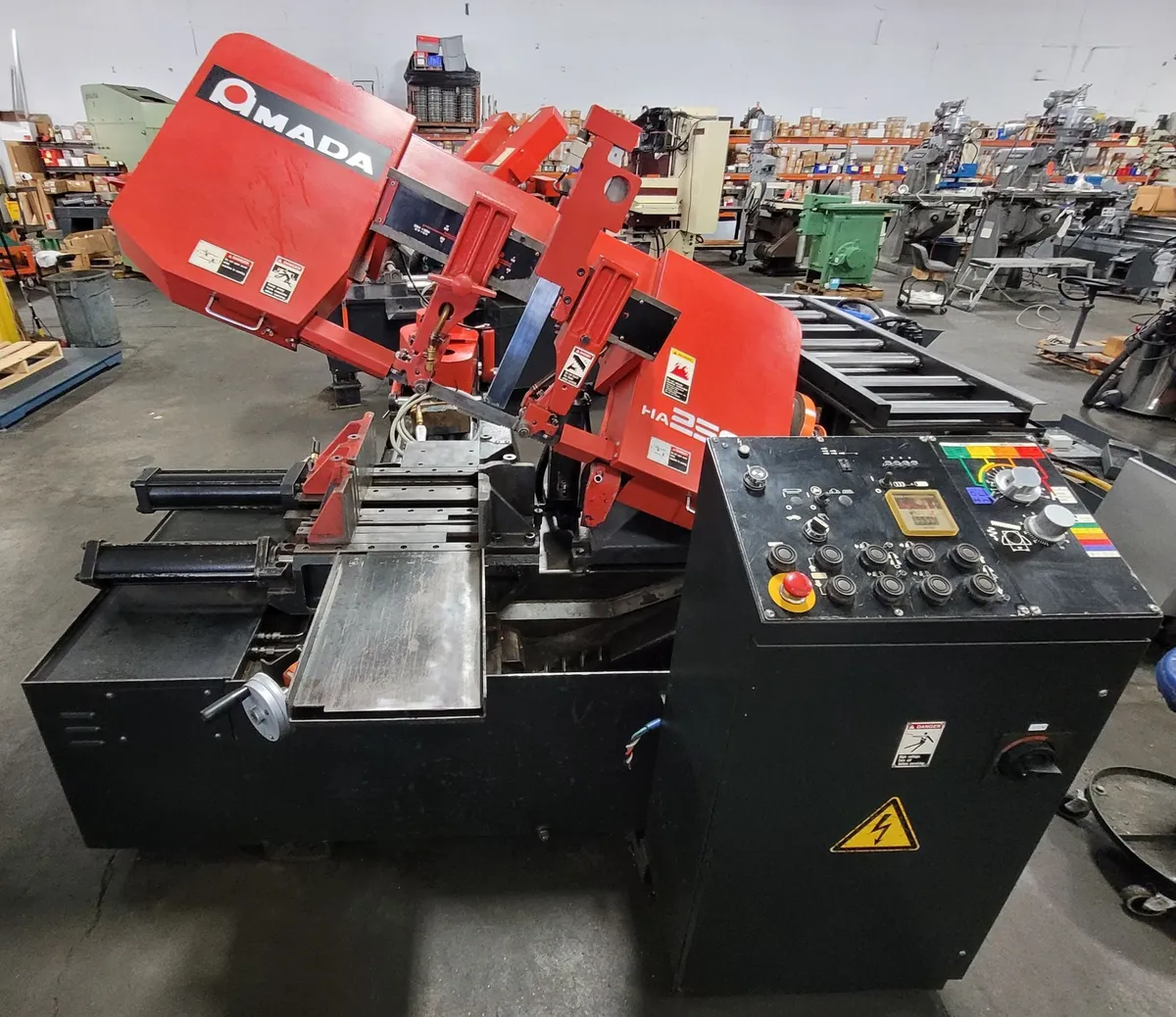

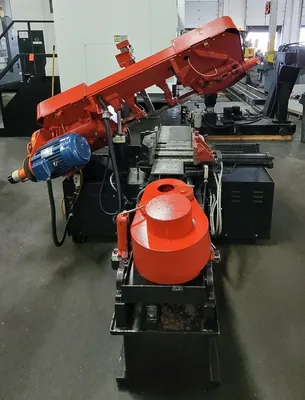

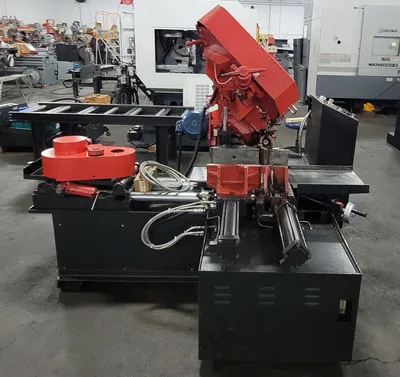

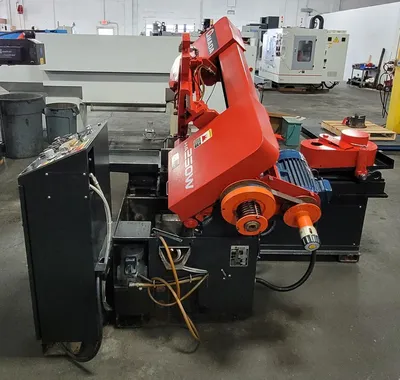

The 2003 Amada HA250W is an automatic, scissor-style horizontal band saw.
It is designed for cutting solid bar stock and structural metals with pinpoint repeatability.
Capacity & Dimensions
Round Capacity: 1.18 to 10 inches
Rectangle Capacity: 11.8 × 10 inches
Work Load Capacity: 3,307 lbs (1,500 kg)
Machine Weight: Approx. 2,650 to 3,307 lbs
Table Height: 27.6 inches (from floor)
Saw Blade & Drive
Blade Dimensions: 11' 6" × 0.042" x 1.25”
Blade Speed: 89 to 295 ft/min (27 to 90 m/min), stepless

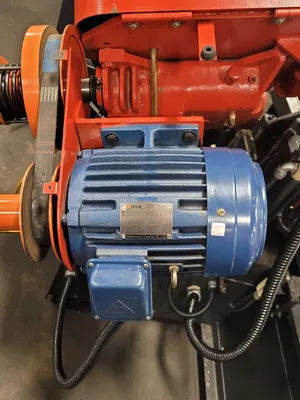

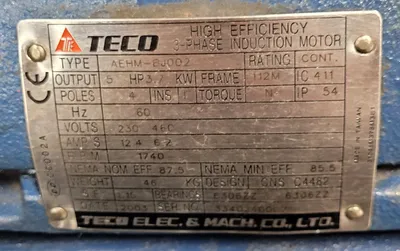

Blade Motor: 5 HP
Material Feed & Indexing
Shuttle Stroke: 15.75 inches
Index Length: 0.394 to 141.7 inchesMulti-Index: Up to 9 times
System Requirements & Features
Hydraulic Motor: 1 HP
Power Supply: 220V/440V, 3 Phase, 60 Hz
Standard Features:
Automatic kerf compensation,
Hydraulic blade tensioning,
Powered chip conveyor,

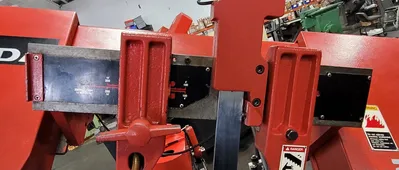

Split front/rear vises

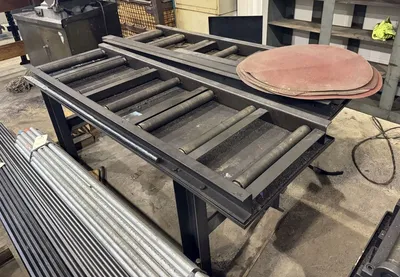

Infeed Conveyors
