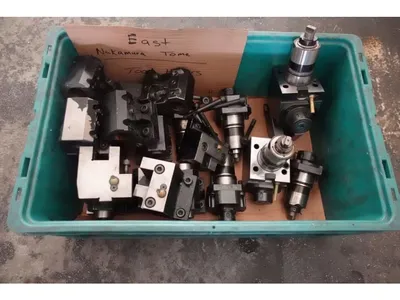

2016 Nakamura-Tome, SC-200MY, Precision CNC Machine w Tooling

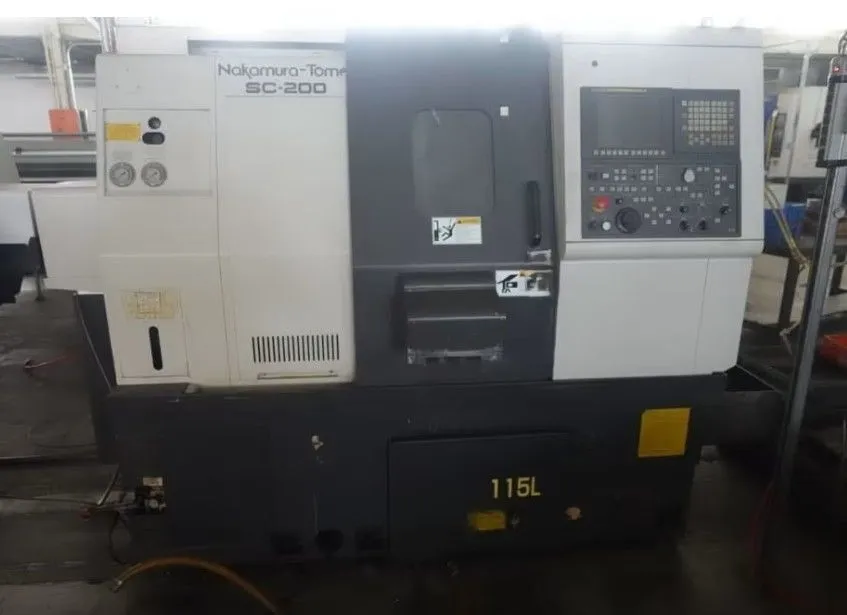

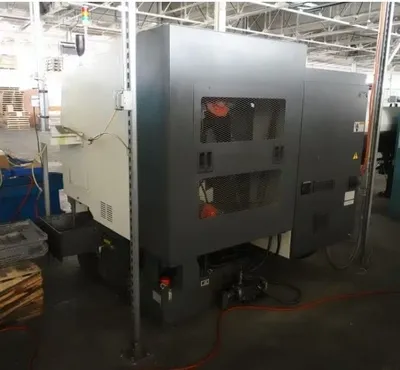

2016 Nakamura-Tome, SC-200MY, Precision CNC Machine

Key Machine Specifications
Maximum Turning Diameter: 340 mm to 390 mm
Maximum Turning Length: 317 mm to 330 mm
Bar Capacity: 65 mm (standard) with optional 71 mm upgrades available
Chuck Size: 8-inch standard

Travels & Axis Feeds
X-Axis Travel: 277 mm
Y-Axis Travel: 41 mm (82 mm total)
Z-Axis Travel: 365 mm
Rapid Traverse (X / Z): 24 m/min (X-axis) / 36 m/min (Z-axis)

Spindle & Milling Capacity
Main Spindle Speed: Up to 4,500 RPM
Main Spindle Motor: 11/7.5 kW to 15/11 kW
Milling Motor: 5.5 / 3.7 kW
Live Tool / Milling Speed: Max. 6,000 RPM
C-Axis: 0.001-degree increment indexing capability

Turret: 12 Tool Station
Bar Feeding - LNS Sprint 565 Bar Feeder
Feeder Size: Appx Feeder Size: 180" x 54" x 58
Hakusan Chip Conveyor/Coolant Unit
Control: Fanuc

Shipping Dimensions:
Machine: 92" L x 73" W x 85” H
Chip Conveyor/Cooling Unit: 115”L x 18”W x 30”H
LNS Sprint: 180”L x 54”W x 58”H
Overall Weight: 13,000lbs
