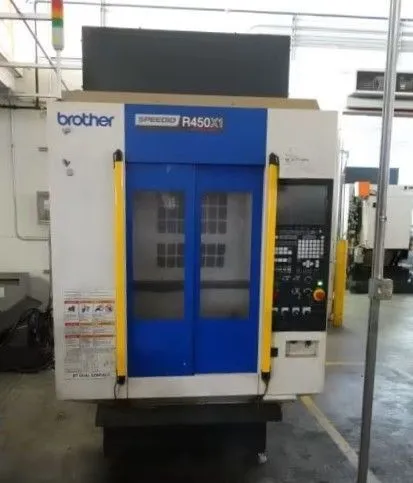

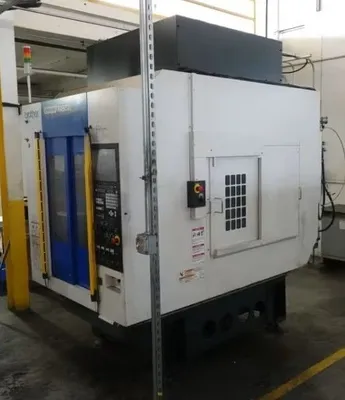

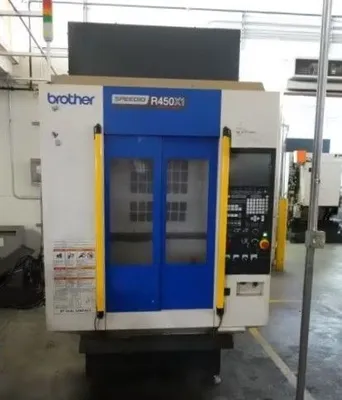

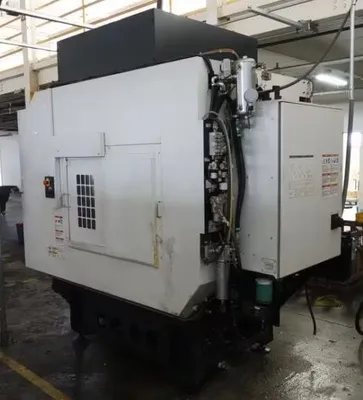

2015 Brother, SPEEDIO R450X1, 3-Axis CNC Vertical Machining Center

2015 Brother, SPEEDIO R450X1, 3-Axis CNC Vertical Machining Center

Core Specifications
Serial #: 111606
X-Axis Travel: 17.7" (450 mm)
Y-Axis Travel: 12.6" (320 mm)
Z-Axis Travel: 12.0" (305 mm)
Spindle: BT-30 Taper,
Max RPM: 16,000 RPM
Tool Capacity: 22-Tool Automatic Tool Changer (ATC)
Table Size: 23.6" x 11.8"
Max tool length- 7.9”
Max tool diameter- 3.1”
Max tool weight- 6.6 Lbs

Machine hours- Operation time-5,690
Total operation time- 15,690
Power on time- 56,595

Rapid Traverse: 1,969 IPM (X, Y, Z)
Chip-to-Chip Time: 1.5 seconds
Pallet Changer: Reduces part load/unload downtime by allowing the operator to fixture a part on one pallet while the machine cuts on the other
wired for 220 volt / 3 Phase / 60 H.Z.

Shipping Dimensions:
65″ W x 112″ L x 105″ H – 6000lbs
