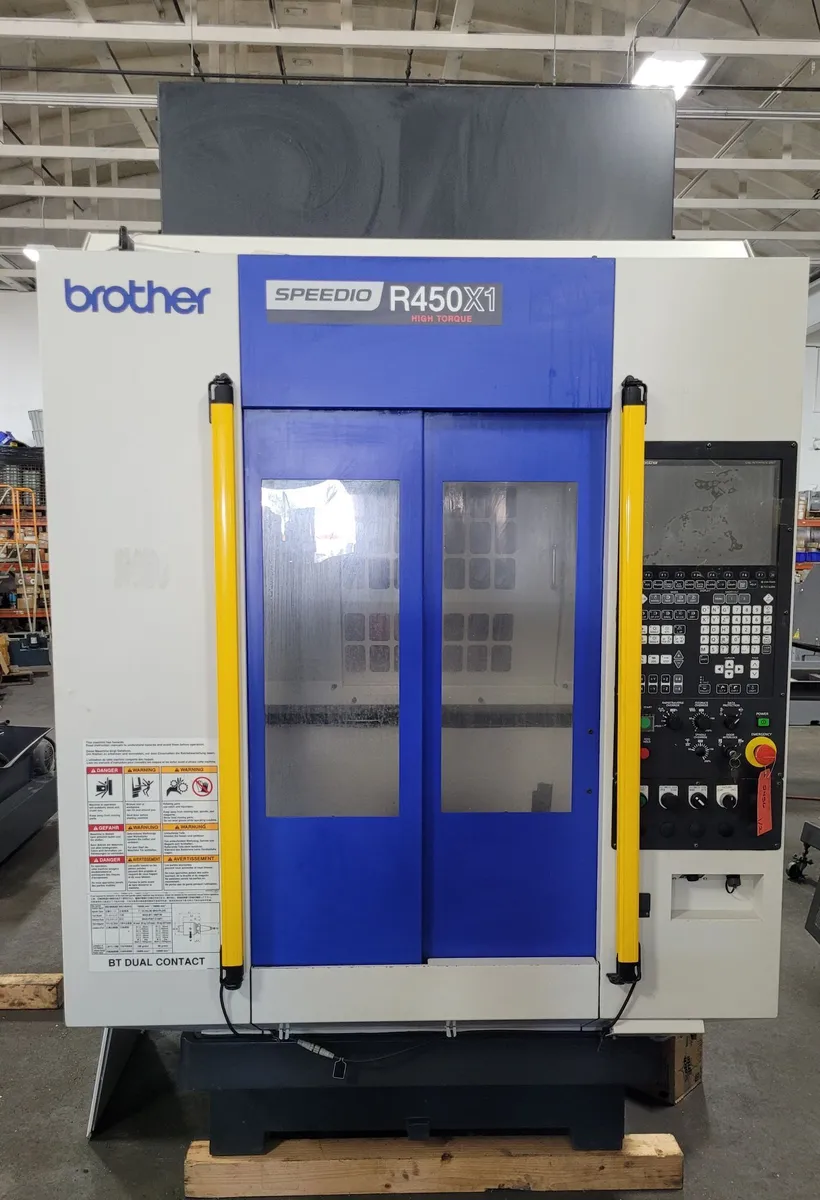

BROTHER SPEEDIO R450X1 3-Axis CNC Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
$42,500.00 USD
New 2015, Brother CNC Control, Machine Hours: Operation Time – 3,690, Power On Time – 11,537, Coolant Through Spindle, Coolant Tank & (2) Coolant Pumps
2015 Brother SPEEDIO R450X1 3-Axis CNC Vertical Machining Center
Core Specifications
Serial #: 111606
X-Axis Travel: 17.7" (450 mm)
Y-Axis Travel: 12.6" (320 mm)
Z-Axis Travel: 12.0" (305 mm)
Spindle: BT-30 Taper,
Max RPM: 16,000 RPM
Tool Capacity: 22-Tool Automatic Tool Changer (ATC)
Table Size: 23.6" x 11.8"
Max tool length- 7.9”
Max tool diameter- 3.1”
Max tool weight- 6.6 Lbs

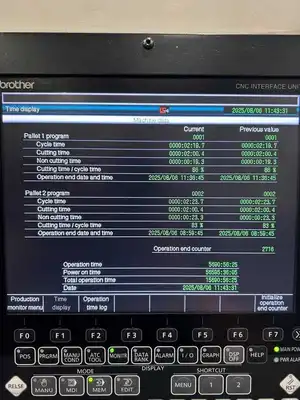

Machine hours- Operation time-3,690
Total operation time- 3,690
Power on time- 11,537
Rapid Traverse: 1,969 IPM (X, Y, Z)
Chip-to-Chip Time: 1.5 seconds

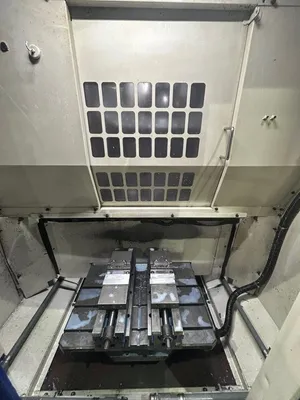

Pallet Changer: Reduces part load/unload downtime by allowing the operator to fixture a part on one pallet while the machine cuts on the other
Wired for 220 volt / 3 Phase / 60 H.Z.
Shipping Dimensions:
65″ W x 112″ L x 105″ H – 6000lbs
New 2015, Brother CNC Control, Machine Hours: Operation Time – 3,690, Power On Time – 11,537, Coolant Through Spindle, Coolant Tank & (2) Coolant Pumps
Imperial
| X | 17.7" |
| Y | 12.6" |
| Z | 12" |
| RPM | 16,000 RPM |
| # ATC | 22 |
| Taper | BT-30 |
| Pallet-W | 23.6" |
| Pallet-L | 11.8" |
| # Axis | 3 |
| Control | CNC (Brother CNC Control) |
| Dimensions | 65 W x 112 L x 105 H |
| Weight | 6000 lbs |
2015 Brother SPEEDIO R450X1 3-Axis CNC Vertical Machining Center
Core Specifications
Serial #: 111606
X-Axis Travel: 17.7" (450 mm)
Y-Axis Travel: 12.6" (320 mm)
Z-Axis Travel: 12.0" (305 mm)
Spindle: BT-30 Taper,
Max RPM: 16,000 RPM
Tool Capacity: 22-Tool Automatic Tool Changer (ATC)
Table Size: 23.6" x 11.8"
Max tool length- 7.9”
Max tool diameter- 3.1”
Max tool weight- 6.6 Lbs
Machine hours- Operation time-3,690
Total operation time- 3,690
Power on time- 11,537
Rapid Traverse: 1,969 IPM (X, Y, Z)
Chip-to-Chip Time: 1.5 seconds
Pallet Changer: Reduces part load/unload downtime by allowing the operator to fixture a part on one pallet while the machine cuts on the other
Wired for 220 volt / 3 Phase / 60 H.Z.
Shipping Dimensions:
65″ W x 112″ L x 105″ H – 6000lbs
