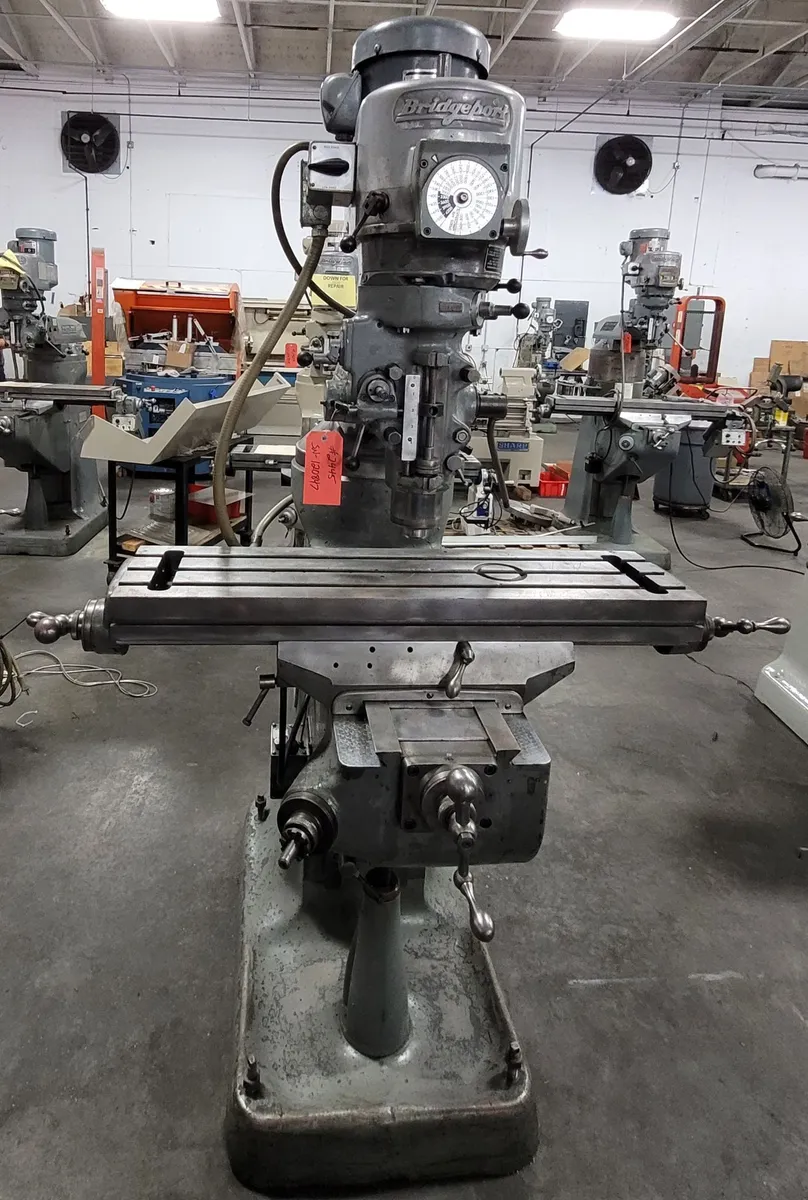

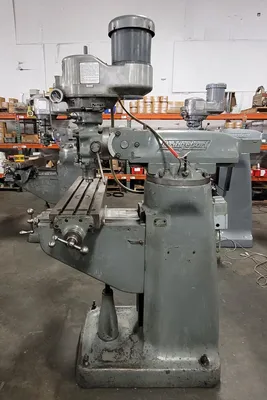

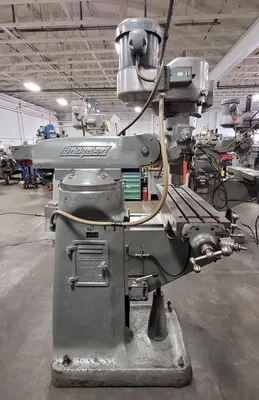

Bridgeport Series 1 Mill w/ Rebuilt 2HP, Chrome Ways, 9x36 Table

Bridgeport Series 1 Mill w/ Rebuilt 2HP, Chrome Ways, 9x36 Table

GENERAL SPECIFICATIONS

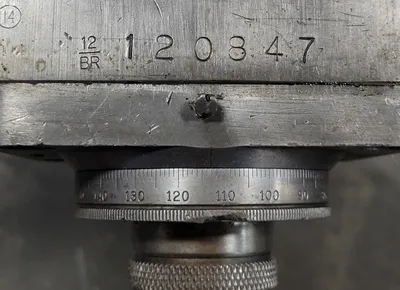

Serial Number: 120847

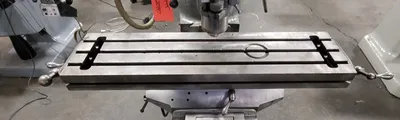

9x36 Table, T-Slot

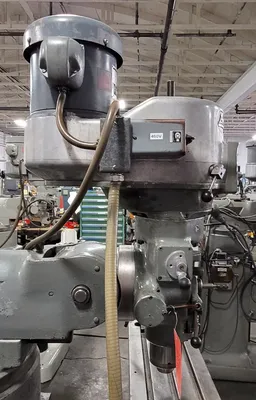

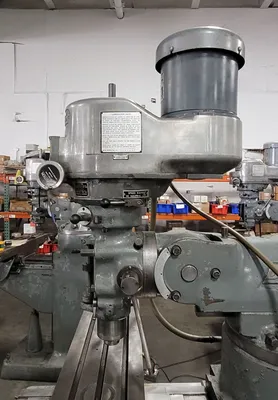

2HP

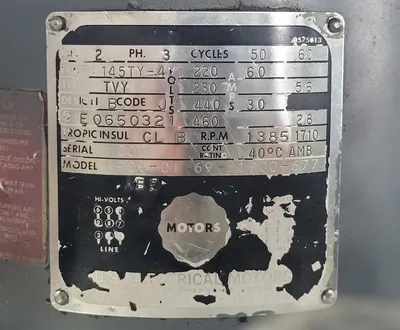

Wired: 460V, 3 Phase

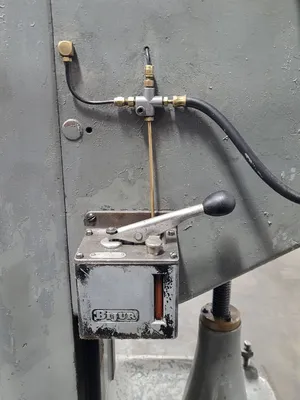

One Shot Lube

X-Axis (Table Travel): 31" (without power feed) up to 36" (with power feed)
Y-Axis (Saddle Travel): 12"Z-Axis (Knee Travel): 16"
Ram Travel: 12"
Quill Travel: 5"
Throat Distance: 6.75" (minimum) to 18.75" (maximum)
Spindle Taper: R-8
RPM: 60-4200
Quill Diamater: 3.375
Max Weight Workpiece: 750lbs
Max Height, Table to Floor: 47.25”

Dimensions:
6’ x 5’ x 7’
2200lbs

Specifications Subject to Verification
