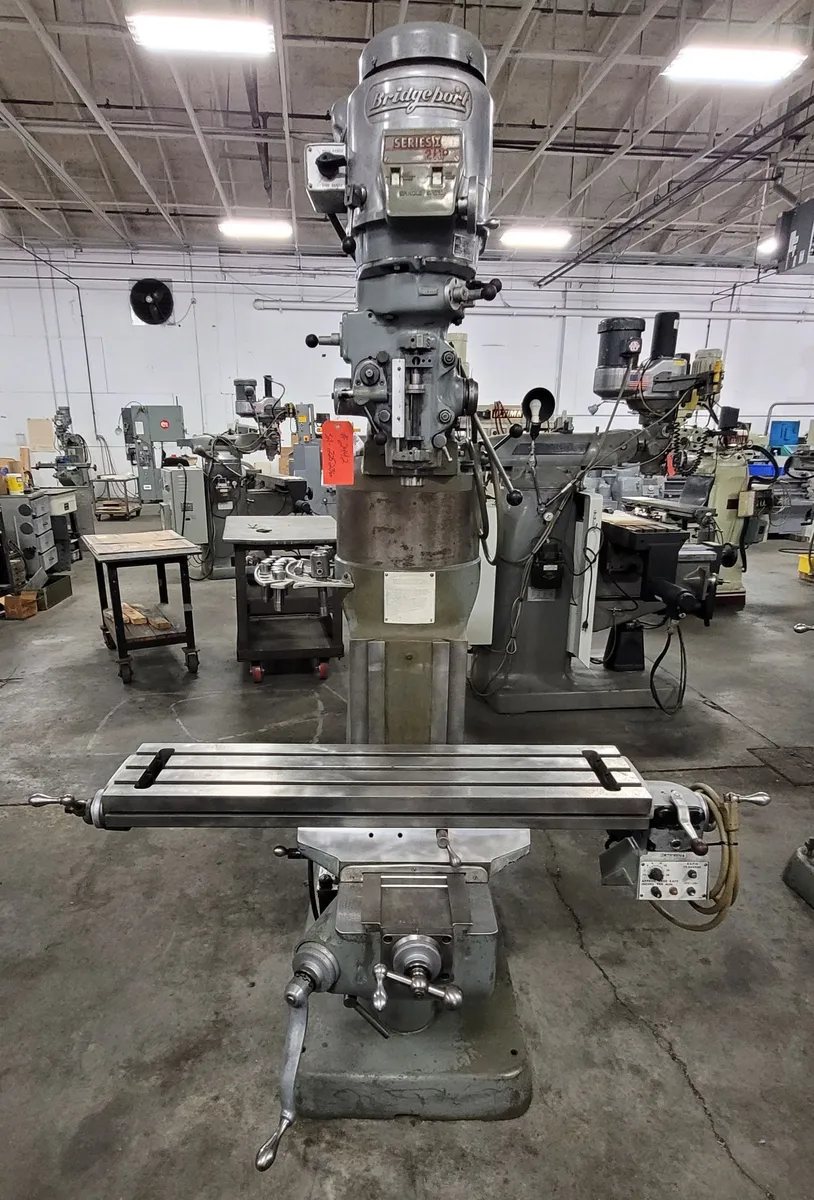

Bridgeport Series 1 Mill w/ Rebuilt 2HP, PF, Riser Block, Chrome Ways, 9x42 Table

Bridgeport Series 1 Mill w/ Rebuilt 2HP, PF, Riser Block, Chrome Ways, 9x42 Table

GENERAL SPECIFICATIONS
Serial Number: 225236
7” Riser
Assorted Collets
Power Feed
9x42 Table, T-Slot
2 HP
Wired: 230V, 3 Phase
One Shot Lube

X-Axis (Table Travel): 31" (without power feed) up to 36" (with power feed)
Y-Axis (Saddle Travel): 12"Z-Axis (Knee Travel): 16"Ram Travel: 12"
Quill Travel: 5"
Throat Distance: 6.75" (minimum) to 18.75" (maximum)
Spindle Taper: R-8
RPM: 60-4200
Quill Diamater: 3.375
Max Weight Workpiece: 750lbs
Max Height, Table to Floor: 47.25”

Dimensions:
6’ x 5’ x 7’
2200lbs

Specifications Subject to Verification
