20" x 40" Bridgeport Romi CNC Lathe

20" x 40" Bridgeport Romi CNC Lathe

Have one to sell?
502-457-4749
Scott@machinery-central.com
ConditionUsed
1 available
$12,500.00 USD
Have one to sell?

Overview

Type:
CNC, Lathes
Manufacturer:
BRIDGEPORT ROMI
Model:
EZ PATH II
Year:
1995
Stock #:
2396
Status:
For Sale
Serial #:
016001517349
Country:
United States
Swing20"508 mm
Machining Length40"1,016 mm
# Axis22
Chuck Size10"254 mm
Bar Capacity2.5"63.5 mm
Power10 hp7.5 kW
Max RPM3,500 RPM3,500 RPM
TailstockYesYes
Live ToolingNoNo
Sub SpindleNoNo
ControlCNC (Bridgeport EZ-Path CNC Control)CNC (Bridgeport EZ-Path CNC Control)
Dimensions107" L x 56" W x 66" H107" L x 56" W x 66" H
Weight50005000

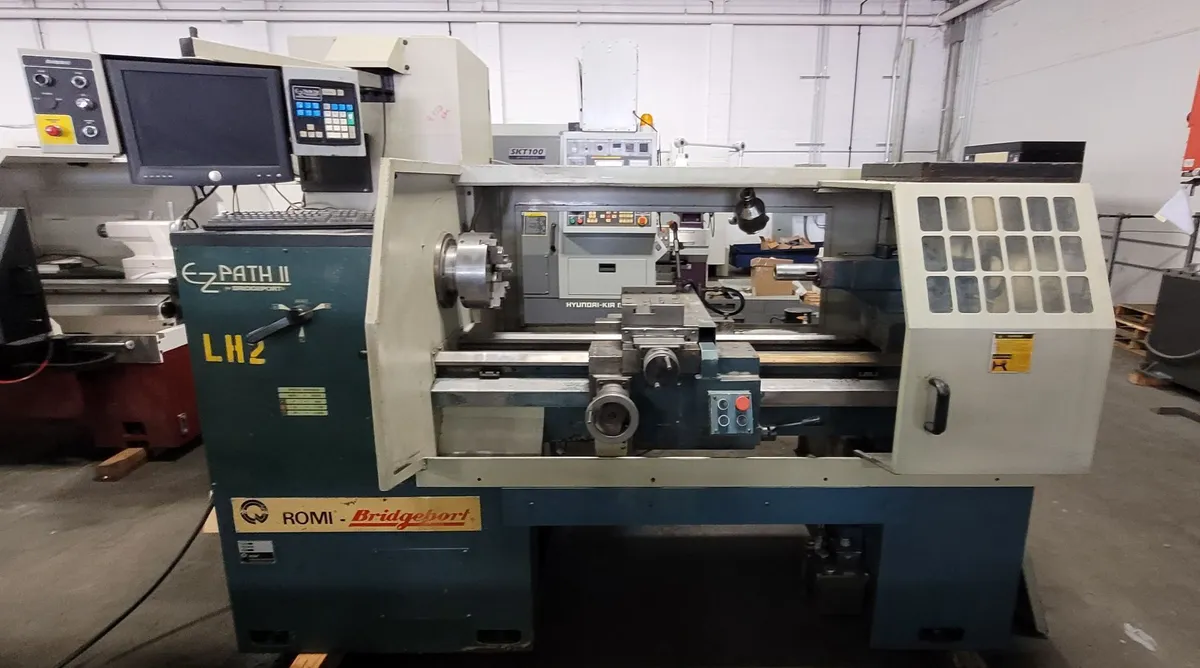

Bridgeport EZ Path II CNC Lathe
Main Motor: 10 HP
X-Axis Travel:10"
Z-Axis Travel: 40"
Swing Over Bed: 20"
Swing Over Cross Slide: 10"
Distance Between Centers: 40"
230V, 3-Phase, 60Hz
Spindle Speeds: Variable up to 3,500 RPM
Machine Weight: Approx. 5,000 lbs.
Footprint: Approx. 107" L x 56" W x 66" H
New Controller
New Motherboard
New Static Hard Drive
New Power Supply
New USB Port
Variable Spindle Speeds,
10" 3-Jaw Chuck,
Tailstock,
Bijur Lube System,
Quick Change Tool Post,
Sliding Chip Enclosure,
Coolant System
