2012 SWI TRAK K3SX CNC MILL W/SMX CONTROL, PDB, Knee PF

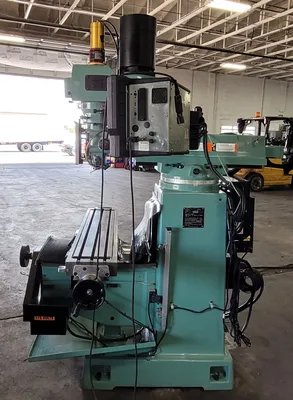

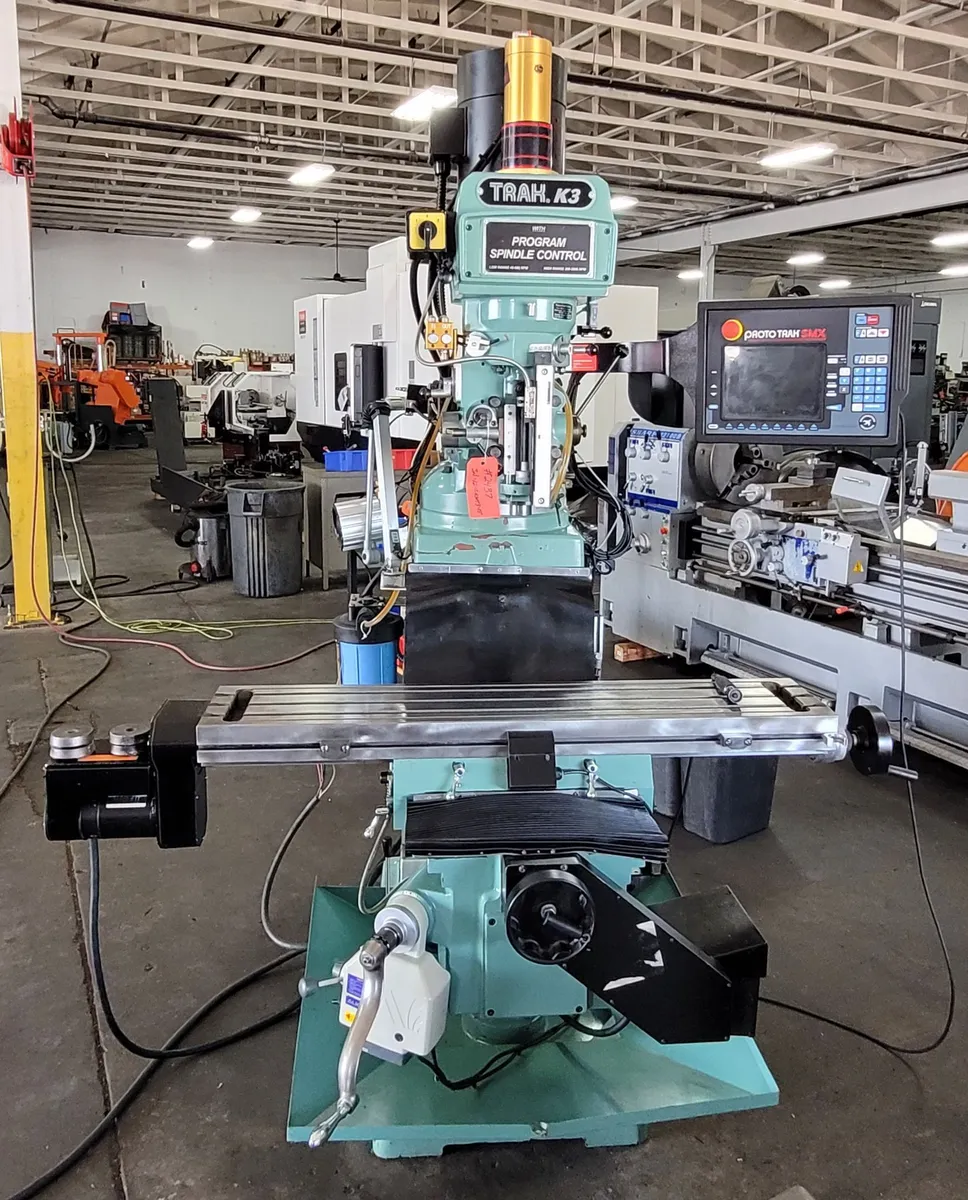

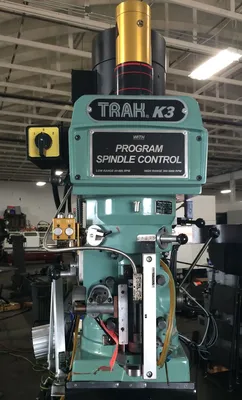

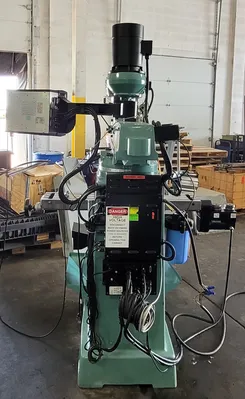

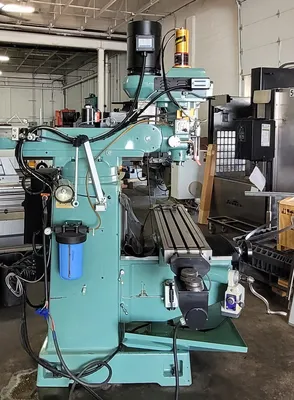

2012 SOUTHWESTERN INDUSTRIES TRAK K3SX VERTICAL MILL WITH SMX CNC CONTROL

Brand: Southwestern Industries Trak
Model: K3SX
Type: Vertical Mill
Year: 2012

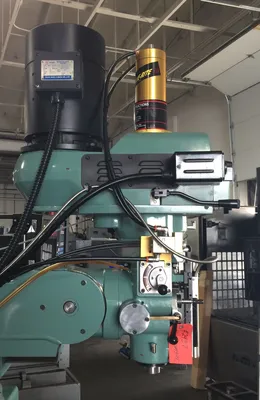

Maxi Torque Right Power Draw Bar

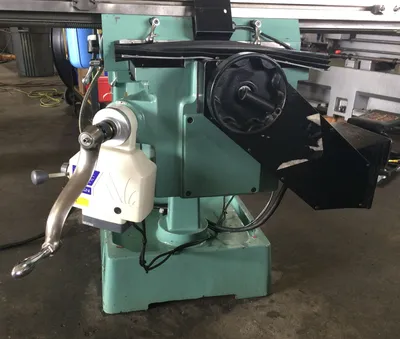

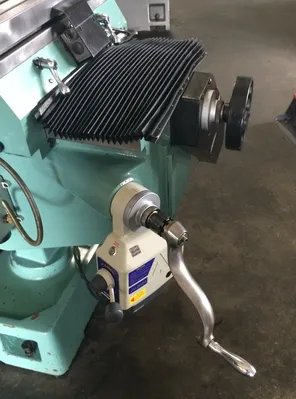

Align Power feed in the Knee

Capacity & Travel Specs
Table Size: 50" × 10"
Longitudinal Travel (X-Axis): 32"
Cross Travel (Y-Axis): 16"
Vertical Knee Travel (Z-Axis): 16"
Ram Travel: 15"
Maximum Weight of Workpiece: 850 lbs

Spindle Specs
Spindle Taper: R8
Spindle Speed Range: 60 to 4,200 RPM
Quill Diameter: 3-3/8”
Maximum Quill Travel: 5"
Head Tilt: 45° forward/back, 90° left/right

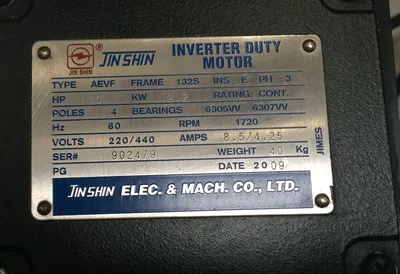

Spindle Motor: 3 HP

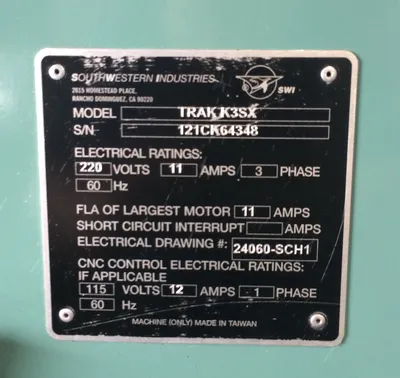

Electrical & Physical Specs
Machine Weight: 4500lbs
Overall Dimensions: 6' L X 7' W X 8' H

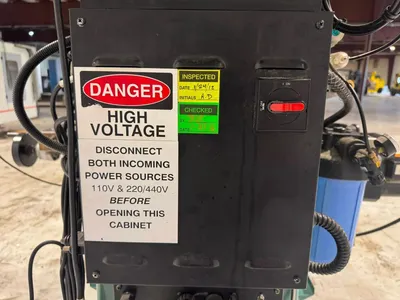

Machine Power Requirement: 220V - 3-Phase
Control Power Requirement: 110V, 1-Phase

Key Control & Hardware Features

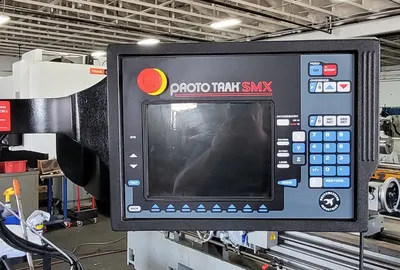

ProtoTRAK SMX System: Offers 2-axis CNC and 3-axis DRO, with true manual handwheels.
Construction: Chrome-hardened and ground quill with precision 7207 CP4 spindle bearings.

Specifications Subject to Verification
