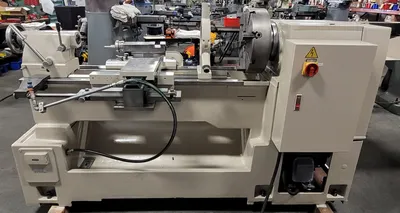

2008 Sharp 1640L Engine Lathe w/Taper

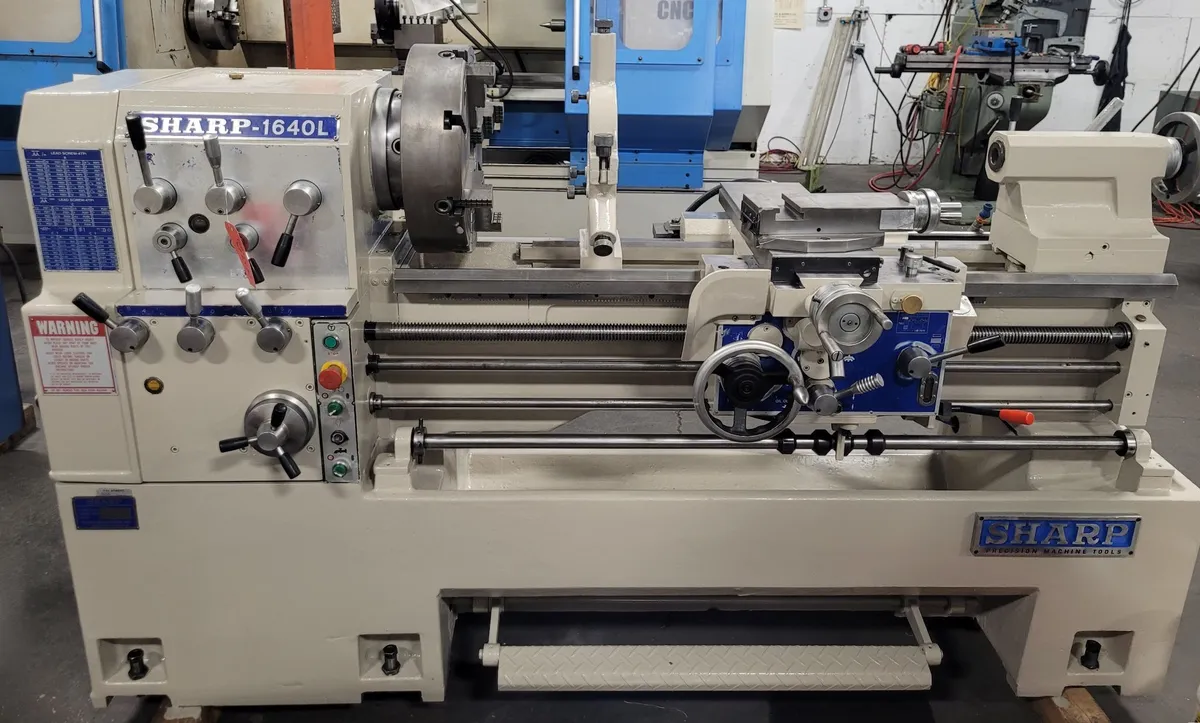

2008 Sharp 1640L Engine Lathe

USED
Brand: Sharp
Model: 1640L
Type: Lathe
Year: 2008
Serial Number: 7905223

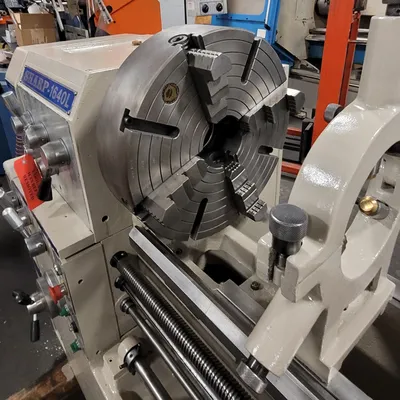

10” – 3 Jaw Chuck

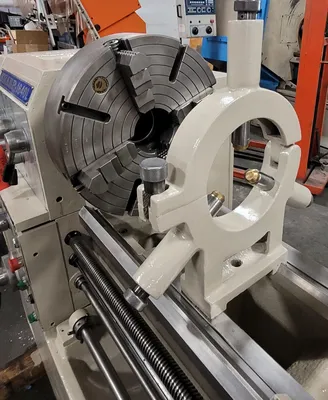

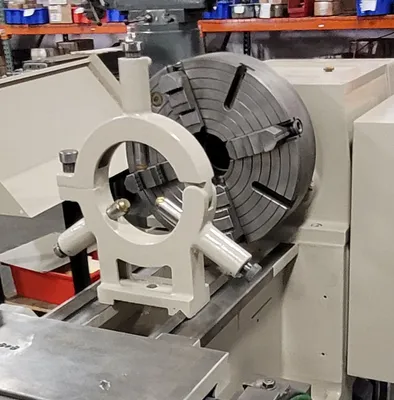

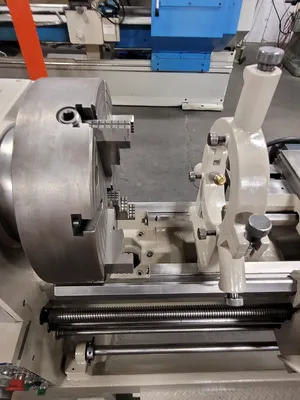

Steady Rest

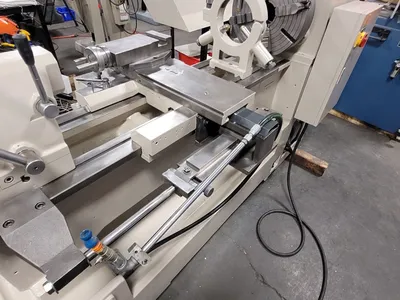

Taper Attachment

Capacity
Swing Over Bed: 16"
Swing Over Cross Slide: 8.75"
Swing Over Gap: 25.5"
Gap Width (In Front Of Face Plate): 11.81 in.
Distance Between Centers: 40"

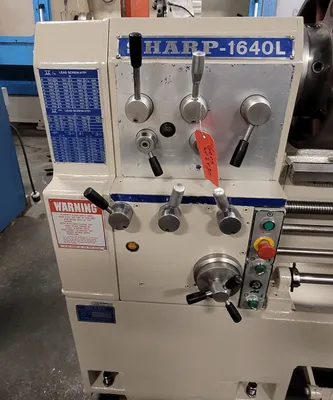

Headstock
Spindle Bore: 3.18"
Spindle Nose: D1-8 Camlock
Spindle Speeds: 12 speeds, ranging from 40 to 2,000 RPM
Spindle Motor: 7.5 HP

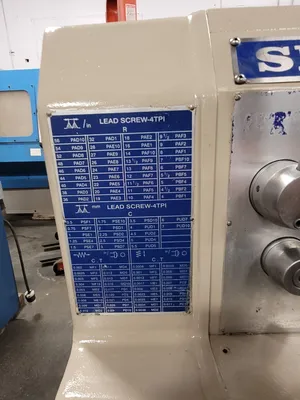

Threading & Feeds
Inch Threads: 4 – 56 TPI (36 selections)
Metric Threads: 0.5 – 7 mm
Longitudinal Feeds: 0.002 – 0.032 in/rev
Cross Feeds: 0.0001 – 0.0094 in/rev
Leadscrew Pitch, Diameter 1.37 in., 35 mm
Diametral Pitch Threads, Number: 0.157-2.20 in., 36 / 4-56 mm, 36

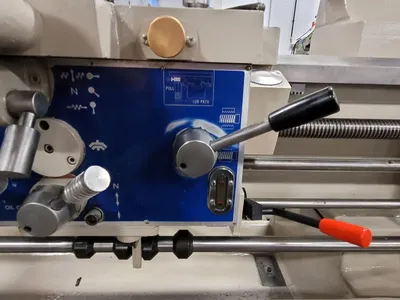

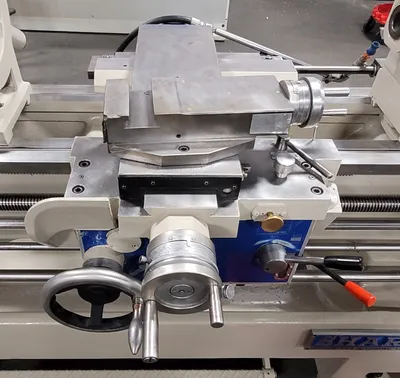

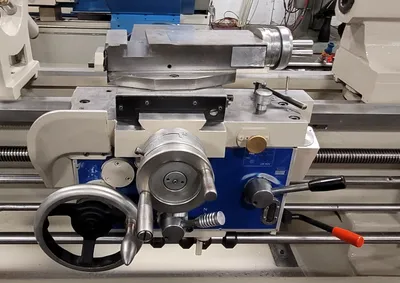

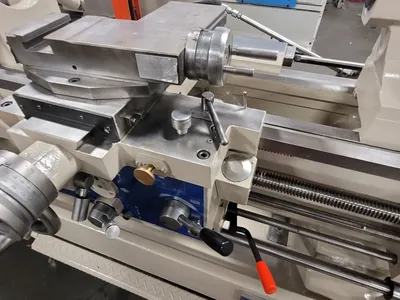

Carriage
Cross Slide Travel: 9.84in/250mm
Compound Travel: 4.92in/125mm
Compound Width: 4.5in/114.3mm

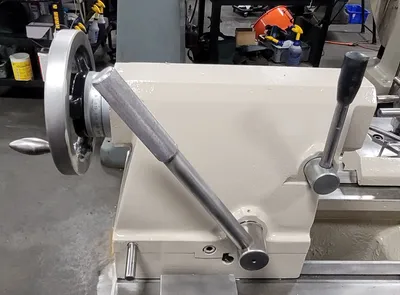

Tailstock
Quill Diameter: 2.28"
Quill Travel: 5.9"
Quill Taper: MT #4

Dimensions & Weight
Bed Length: 84.44"
Bed Width: 11.8"
Approximate Weight: 3,500lbs
Footprint: 7.05' L x 2.66' W x 3.9' H

Specifications Subject to Verification
