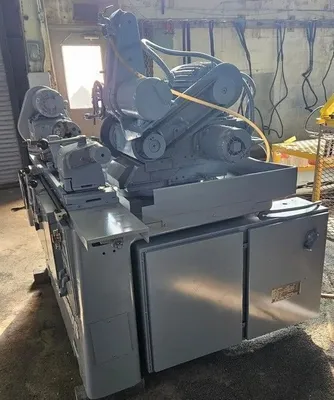

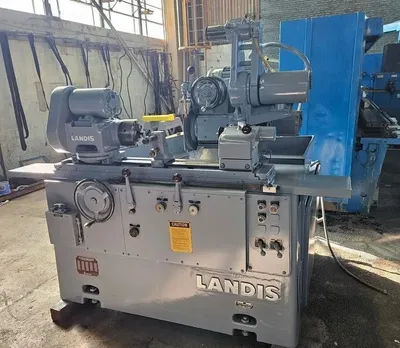

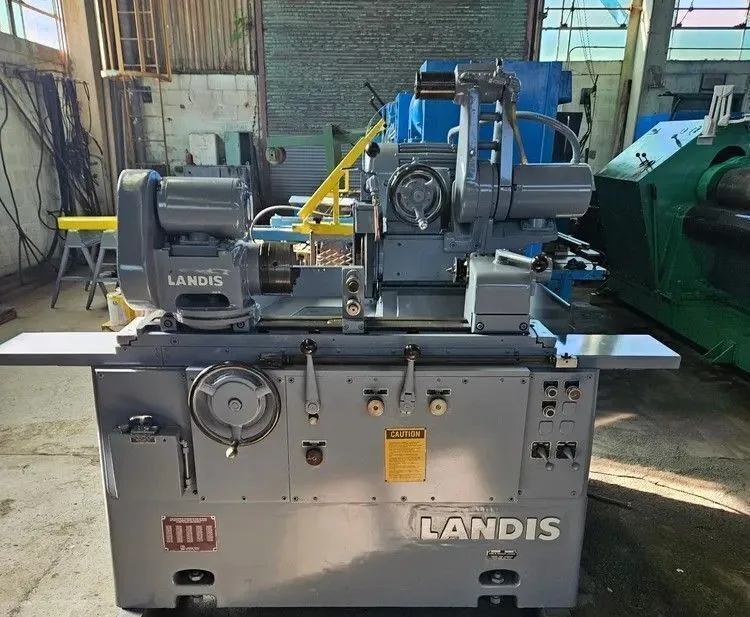

10" x 20" LANDIS "1R" UNIVERSAL CYLINDRICAL GRINDER w/SWING DOWN INTERNAL

10" x 20" LANDIS UNIVERSAL CYLINDRICAL GRINDER
Serial No 858-2, Model 1R, Ltr R

EQUIPPED WITH:
1 HP Internal Grinding Spindle Attachment (Swing-Down)
Universal Swivelling Headstock for
Angular Settings & Face Grinding
Hydraulic Longitudinal Table Feed
Hydraulic In-Feed
Automatic Plunge
Electric Sparkout Timer
Bijur Lubrication System
Coolant System

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 10.875"
Grinding Diameter, Maximum 10"
Distance Between Centers, Nominal 20"
Grinding Wheel Diameter, Minimum 7.5"
Grinding Wheel Diameter, Standard 12"
Grinding Wheel Width, Maximum 1.5"
Grinding Wheel Width, Standard 1"
Grinding Wheel Hole Diameter 5"
Table Swivel Taper 4 IPF
Table Swivel Angle 20-DEGREES
Headstock Swivel Range 120-DEGREES
Grinding Wheelhead Swivel Range 90-DEGREES
Workhead Center Taper #10 JARNO
Tailstock Center Taper #6 JARNO
(2) Spindle Speeds, Range 2000 & 2530 RPM
Internal Grinding Spindle Speed 16500 RPM
Workhead Spindle Speeds, Range 60 to 600 RPM
Table Longitudinal Feeds, Infinite 2 to 240 IPM
Grinding Wheelhead Spindle Motor 5 HP/1775 RPM
Internal Grinding Attachment, HP/RPM 1 HP/3600 RPM
Electrical System 220-440/3/60

Shipping Dimensions:
106" × 60" x 78” (inches) – 4800lbs

Specifications Subject to Verification
