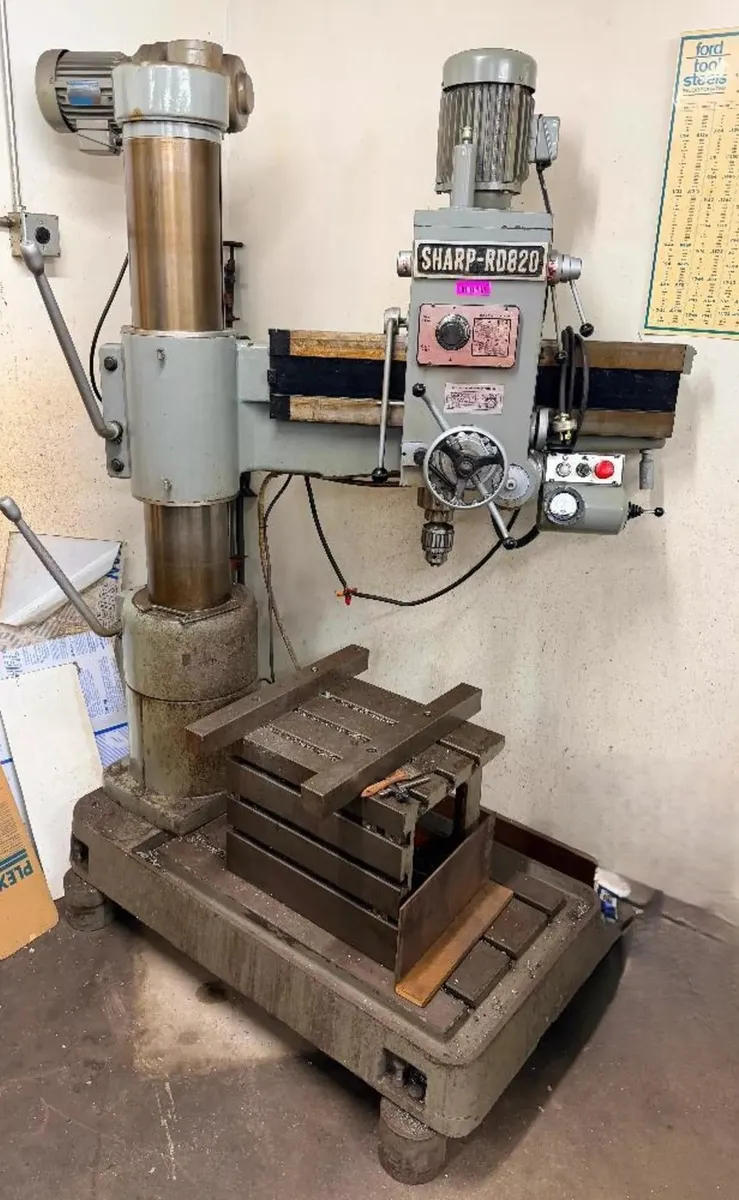

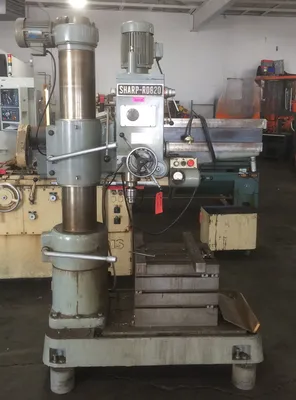

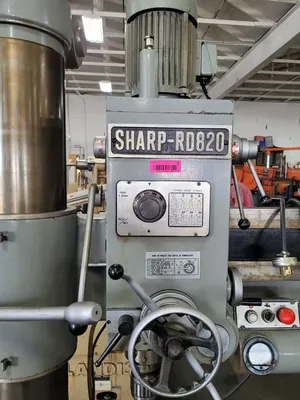

8" x 33" Sharp RD820 RADIAL ARM DRILL PRESS

Sharp RD820 RADIAL ARM DRILL PRESS

USED
Brand: Sharp
Model: RD820
Type: RADIAL ARM DRILL PRESS
Serial Number: 10649
Year of MFG: 1989
Wired: 220V, 60HZ, 3 Phase

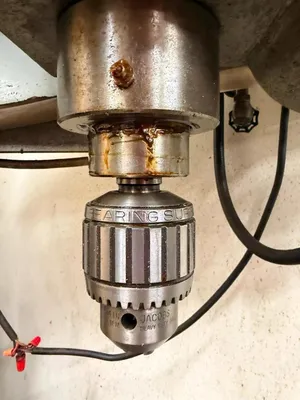

Jacobs Heavy Duty Drill Chuck: 18N

Capacity
Drilling : 1.968” cast iron, 1.259” steel
Boring : 4.125” cast iron, 2.75” steel
Tapping (Steel / Cast Iron): 0.98" / 1.26"

Spindle
Spindle Taper: MT #4
Spindle Travel: 8.27"
Spindle Speeds: 6 steps (73 - 1247 RPM or 88 - 1500 RPM depending on the configuration)
Spindle Feeds: 3 to 6 steps (0.002" - 0.006" per revolution)

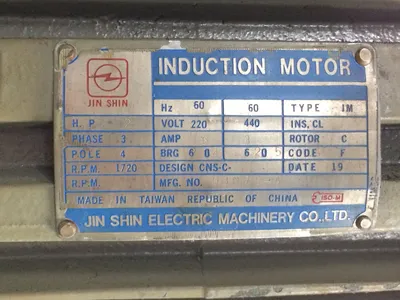

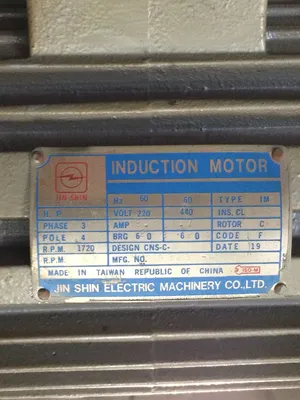

Motor: 3 HP
Motor Clamp: Manual
Coolant Pump: 1/8HP

Reach & Clearance
Column to Spindle Center (Max / Min): 33.46" / 9.06"
Base to Spindle End (Max / Min): 47.64" / 14.76"
Spindle Head Travel: 25.2"
Elevating Height of Arm: 24.61"

Dimensions & Weight
Table Dimensions: 23.62" x 17.52" x 14.96" (Box Table)
T-slots and drain channels on box table
Base Dimensions: 49.21" x 25.20" x 6.30"
Machine Height (Max): 91.34"

Shipping Dimensions:
66'' × 32'' × 87'' (inches) – 3100lbs

Specifications Subject to Verification
New pictures coming soon.
