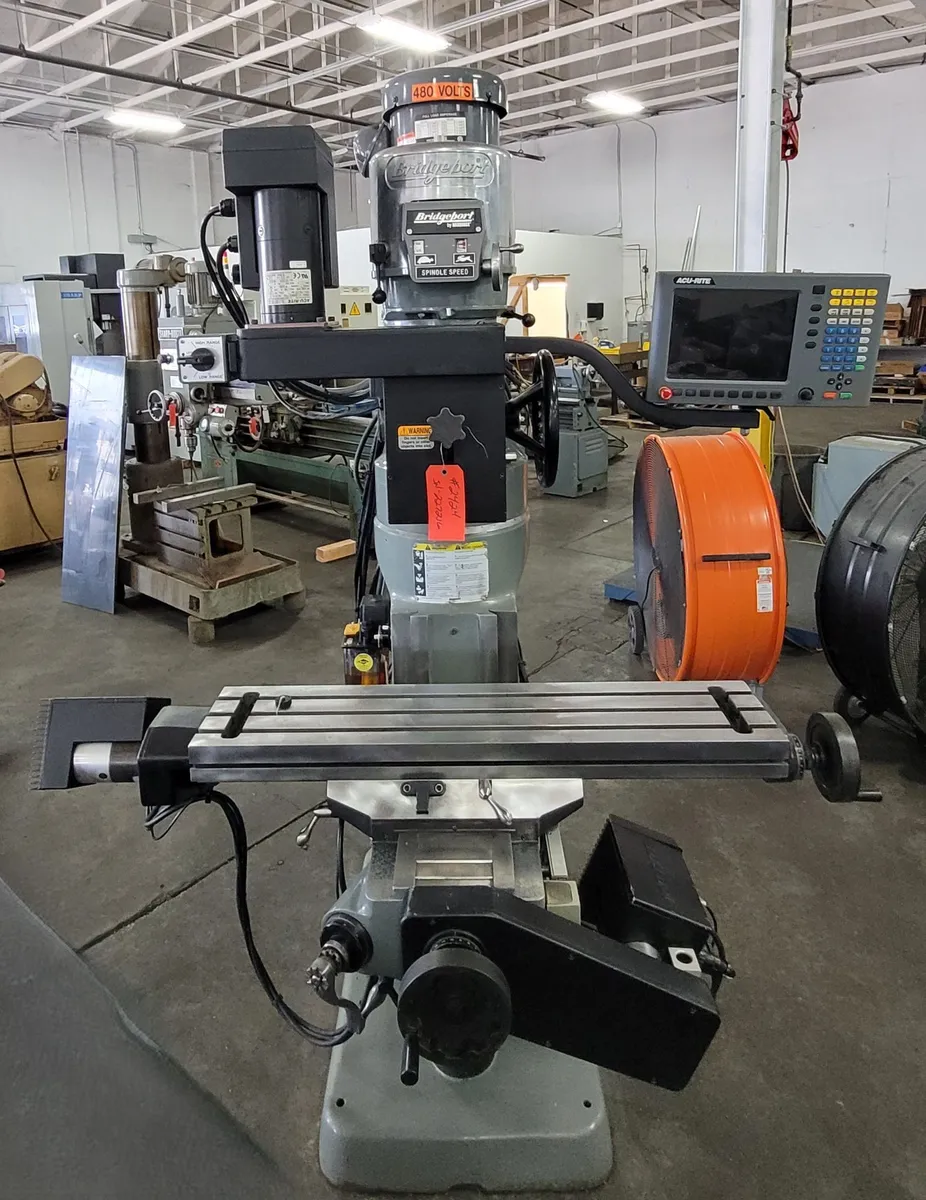

Bridgeport 3 Axis CNC Knee Mill w/AcuRite Millpwr G2 Controller, 4" Riser

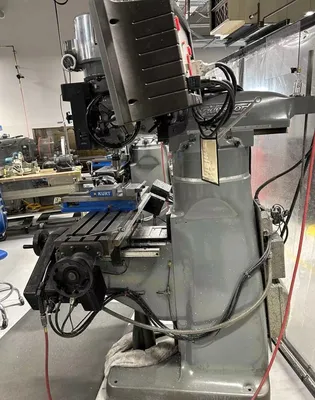

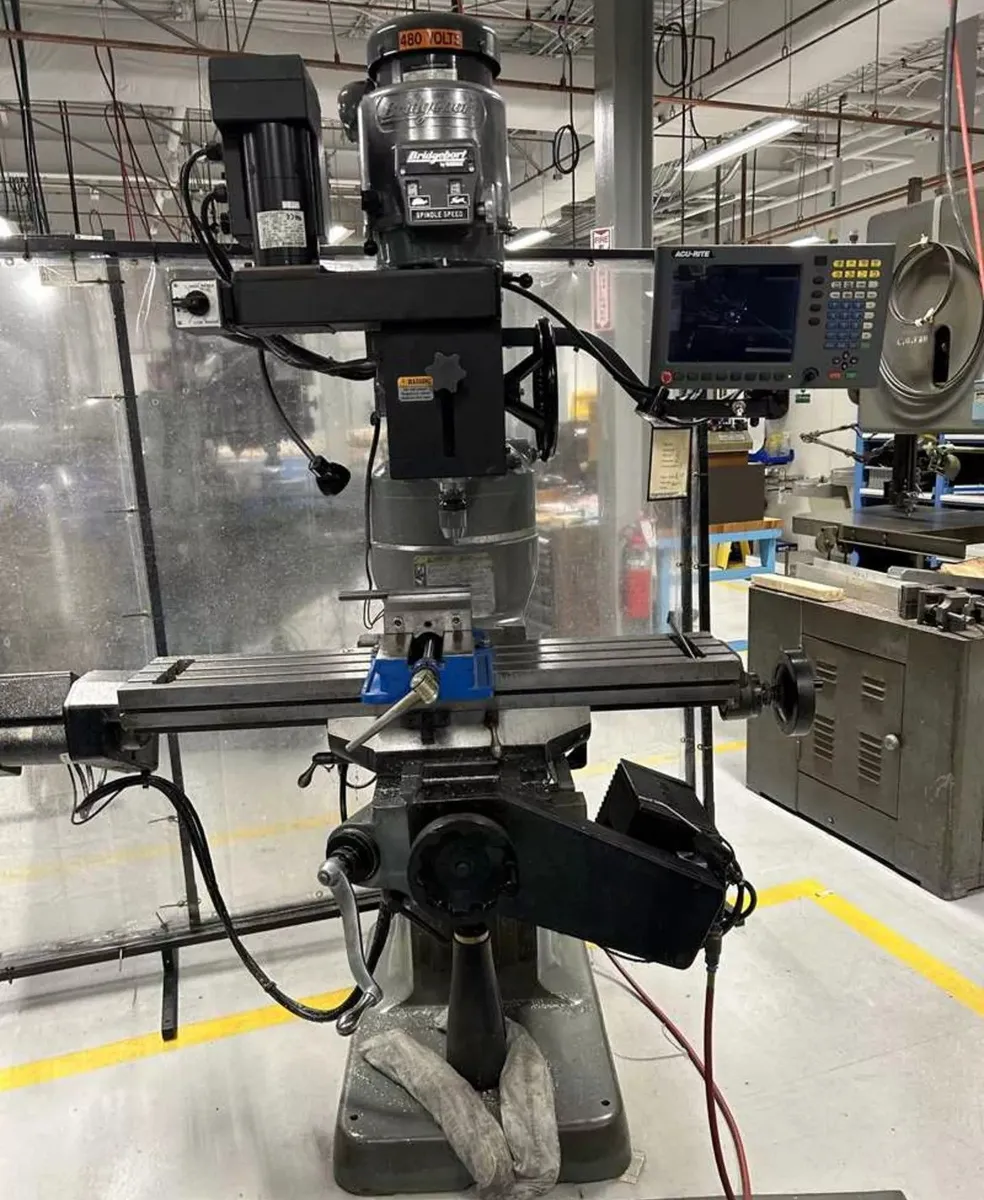

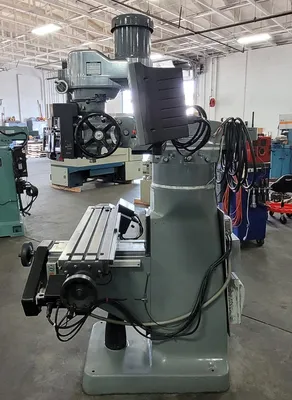

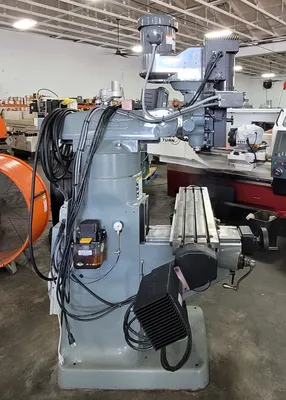

Bridgeport 3-Axis CNC Vertical Milling Machine
Bridgeport Model: 2J
Serial: 227216

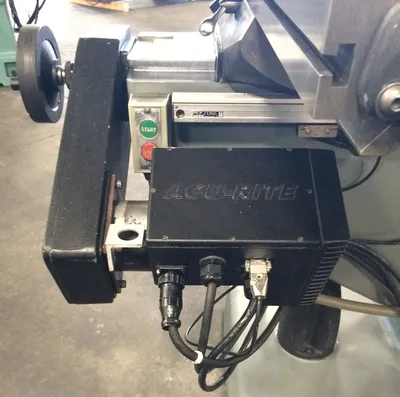

Acu-Rite Millpwr G2 3 axis CNC Control and 3 Axis DRO

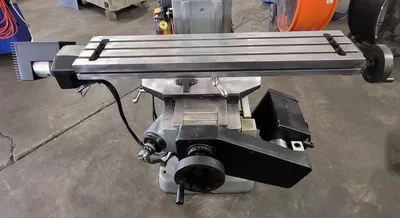

Table Size: 9" x 48"

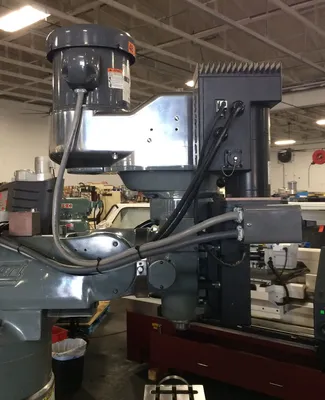

4" Riser
Machine Travels (X/Y): 35" / 12"
Power/Manual Quill Z-Axis Travel: 5"
Knee Travel: 16"
Spindle Taper: R8
Spindle Speeds: 60 to 4200 RPM

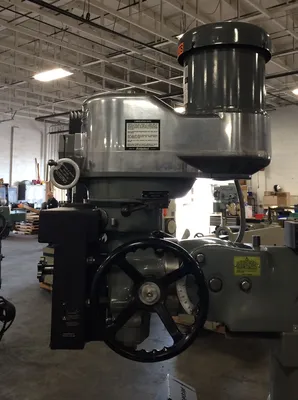

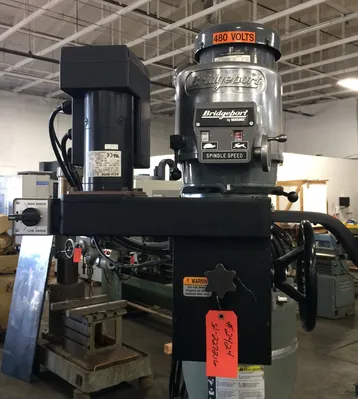

Spindle Drive: 2 HP Variable Speed Head
Chrome ways

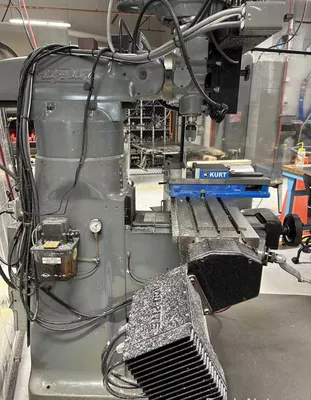

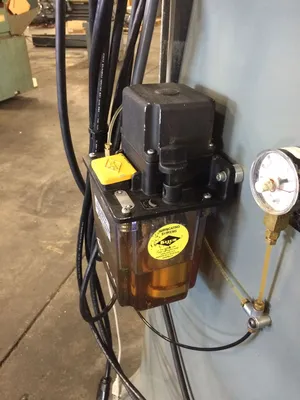

Bijur Auto Lube
Kurt 6" Machinist Vise

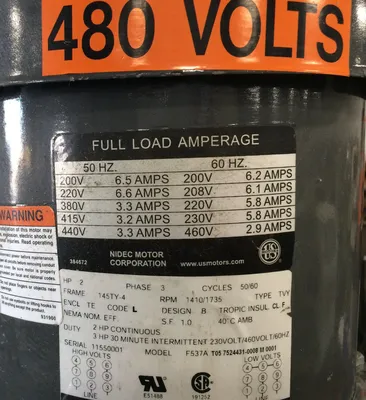

Electrics:230/460 Volt, 3 Phase (currently wired 480V)
Main Unit Approx Weight: 2500.00 lbs
Main Unit Dimensions (in inches): Length: 65.00" Width: 60.00" Height: 84.00"

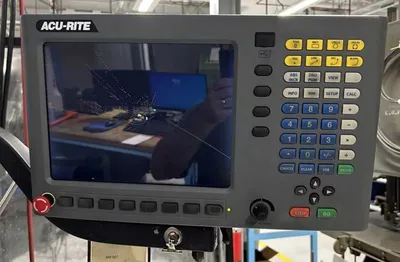

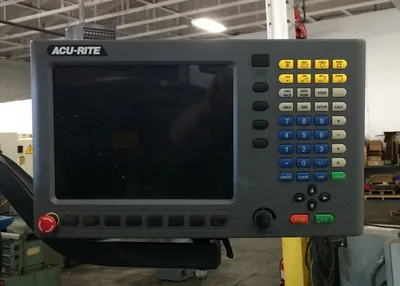

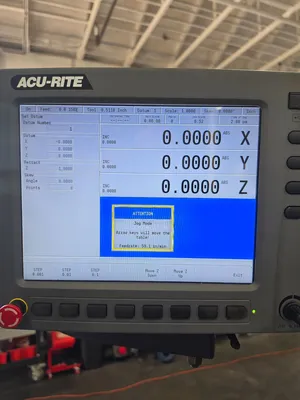

The ACU-RITE MILLPWR G2 is a 3-axis CNC control designed for knee mills, featuring a 12.1-inch color LCD, 1.4 GHz processor, 2 GB memory, and conversational programming.
It supports 3D contouring, USB/Ethernet connectivity, and uses precision glass scales for closed-loop feedback, allowing for easy manual-to-CNC operation.

Key Specifications:
Processor: 1.4 GHz Celeron® M.
Display: 12.1" high-resolution color LCD, flat panel.
Axis Control: 2 or 3-axis (3-axis with optional Z-axis package).
Feedback: Closed-loop with ACU-RITE precision glass scales.
Memory/Storage: 2 GB Internal memory.
Connectivity: USB (x2) and Ethernet.
Programming: Conversational, G-Code, and DXF file converter.
Features: Position-Trac™ (workpiece zero recovery), 3-D contouring, pocket/hole pattern cycles, 3D part-review graphics, and full digital readout (DRO).

Functionality and Input:
Input: Softkeys, alphanumeric keypad, and dedicated milling keys (e.g., Circle, Line, Blend).
Operations: Features include 3-D contouring, engraving, pocketing, and island-boss creation.
Environment: IP 54 (front) / IP 40 (back) protection.

The G2 control is designed for easy, rapid programming directly at the machine with canned cycles for common operations, allowing users to move between manual and CNC modes seamlessly.

FOB Louisville
