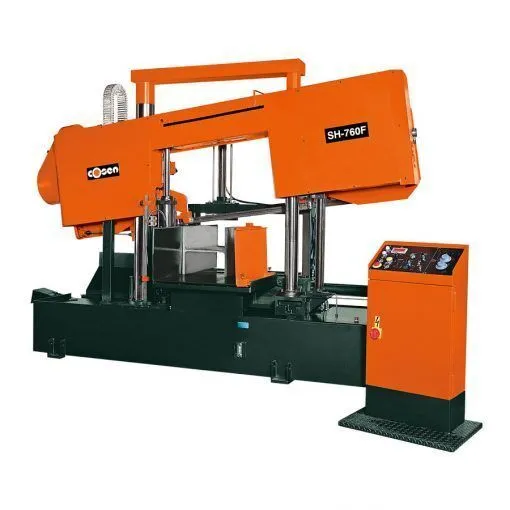

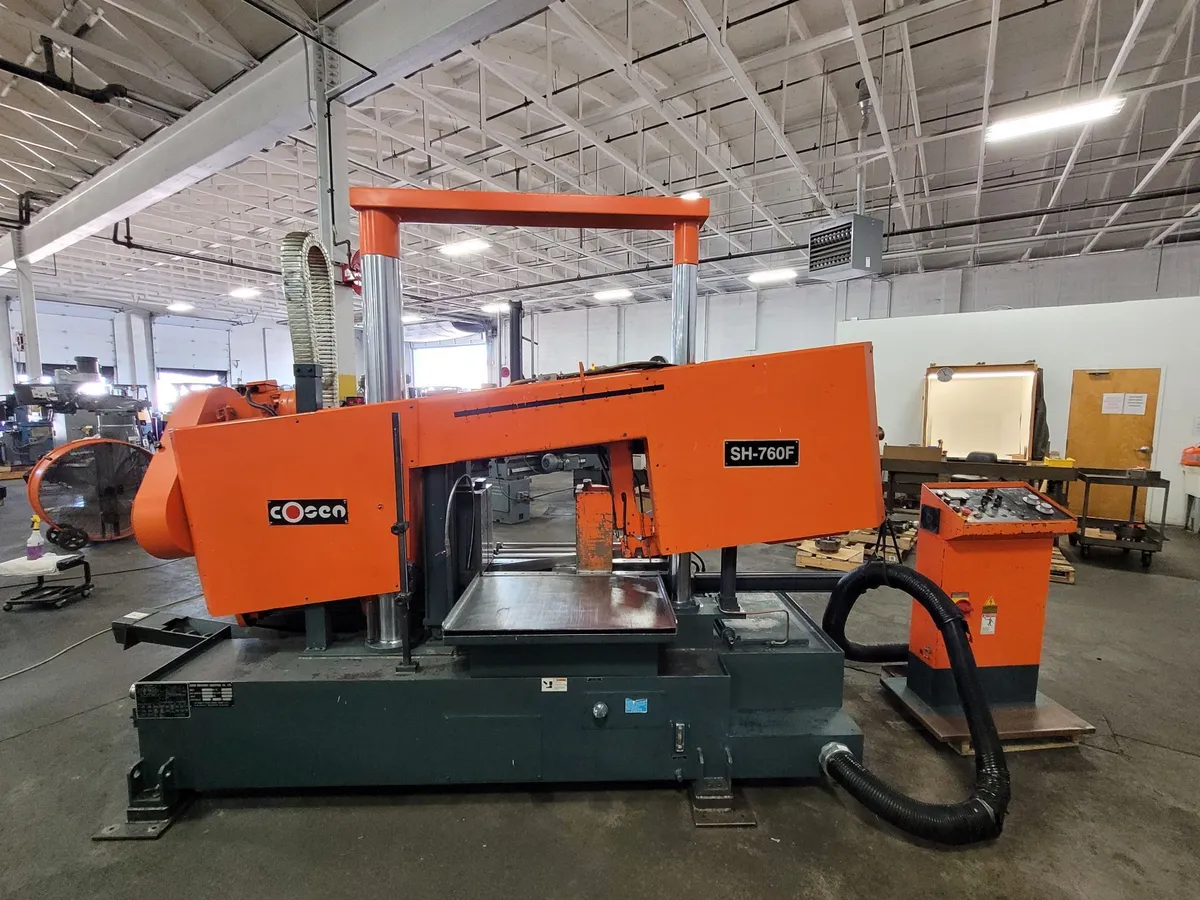

20.5″ x 30″ Cosen Horizontal Bandsaw Model SH-760F
New 2014
Specifications:
Maximum Cutting Capacity Round 22″
Maximum Cutting Capacity Square 20.5″
Maximum Cutting Capacity Rectangular (HxW) 20.5″ x 30″
Blade Speed (Variable) 42-312 FPM
Blade Size (LxWxT) 21′ 10.4″ x 2″ x .063″
Blade Motor 10 H.P.
Hydraulic Motor 2 H.P.
Coolant Motor 1/4 H.P
Workbed Height 27.5″
Weight 5620 lbs
Floor Space (LxWxH) 56″ x 132″ x 94″
20.5″ x 30″ Cosen Horizontal Bandsaw Model SH-760F
Features:
Hydraulic dual column design
Gearbox designed to accept high lateral pressure (no thermal distortion)
Inverter blade drive system which allows infinitely variable blade speeds
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Cast-iron guide arms
Cast-iron hydraulic vise
Split vise jaw for reduced burr
Automatic hydraulic blade tensioning device
Dual valve feed pressure and feed rate system for optimal cutting performance
On the way in.
