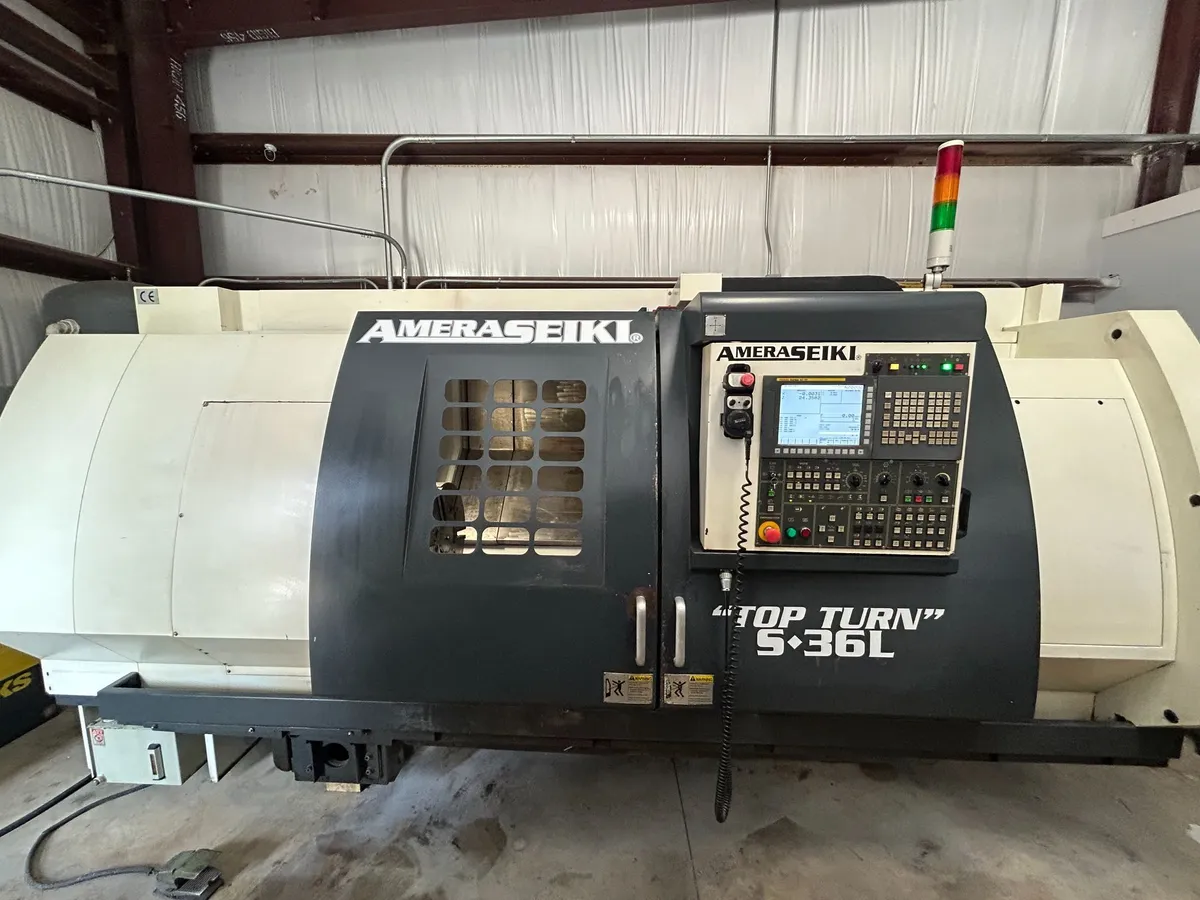

Ameri Seiki S-36L"Top Turn" CNC Lathe w/Fanuc 0i-TF Control new 2018

2018 Ameri Seiki "Top Turn" S-36L CNC Lathe w/Fanuc 0i-TF Control

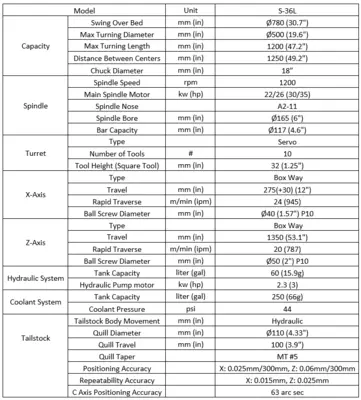

Capacity
Swing Over Bed mm (in): Ø780 (30.7)
Max Turning Diameter mm (in): Ø500 (19.6)
Max Turning Length mm (in): 1200 (47.2)
Distance Between Centers mm (in): 1250 (49.2)
Chuck Diameter: 18”

Spindle
Spindle Speed rpm: 1200
Main Spindle Motor kw (hp): 22/26 (30/35)
Spindle Nose: A2-11
Spindle Bore mm (in): Ø165 (6)
Bar Capacity mm (in): Ø117 (4.6)

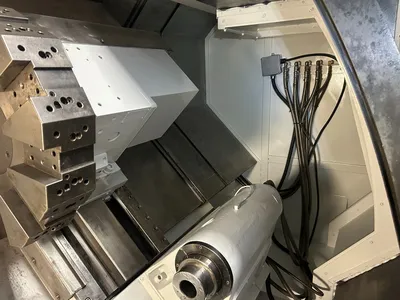

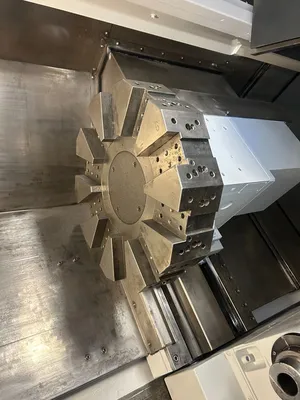

Turret
Type: Servo
Number of Tools #: 10
Tool Height (Square Tool) mm (in): 32 (1.25)

X-Axis
Type Box Way
Travel mm (in) 275(+30) (12)
Rapid Traverse m/min (ipm): 24 (945)
Ball Screw Diameter mm (in): Ø40 (1.57) P10

Z-Axis
Type: Box Way
Travel mm (in): 1350 (53.1)
Rapid Traverse m/min (ipm): 20 (787)
Ball Screw Diameter mm (in): Ø50 (2) P10

Hydraulic System
Tank Capacity liter (gal): 60 (15.9g)
Hydraulic Pump motor kw (hp): 2.3 (3)

Coolant System
Tank Capacity liter (gal): 250 (66g)
Coolant Pressure psi: 44

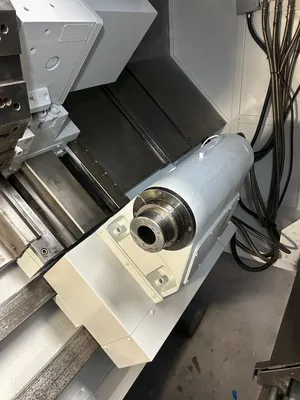

Tailstock
Tailstock Body Movement mm (in): Hydraulic
Quill Diameter mm (in): Ø110 (4.33")
Quill Travel mm (in) 100 (3.9")
Quill Taper MT #5

Positioning Accuracy: X: 0.025mm/300mm, Z: 0.06mm/300mm
Repeatability Accuracy: X: 0.015mm, Z: 0.025mm
C Axis Positioning: Accuracy 63 arc sec
