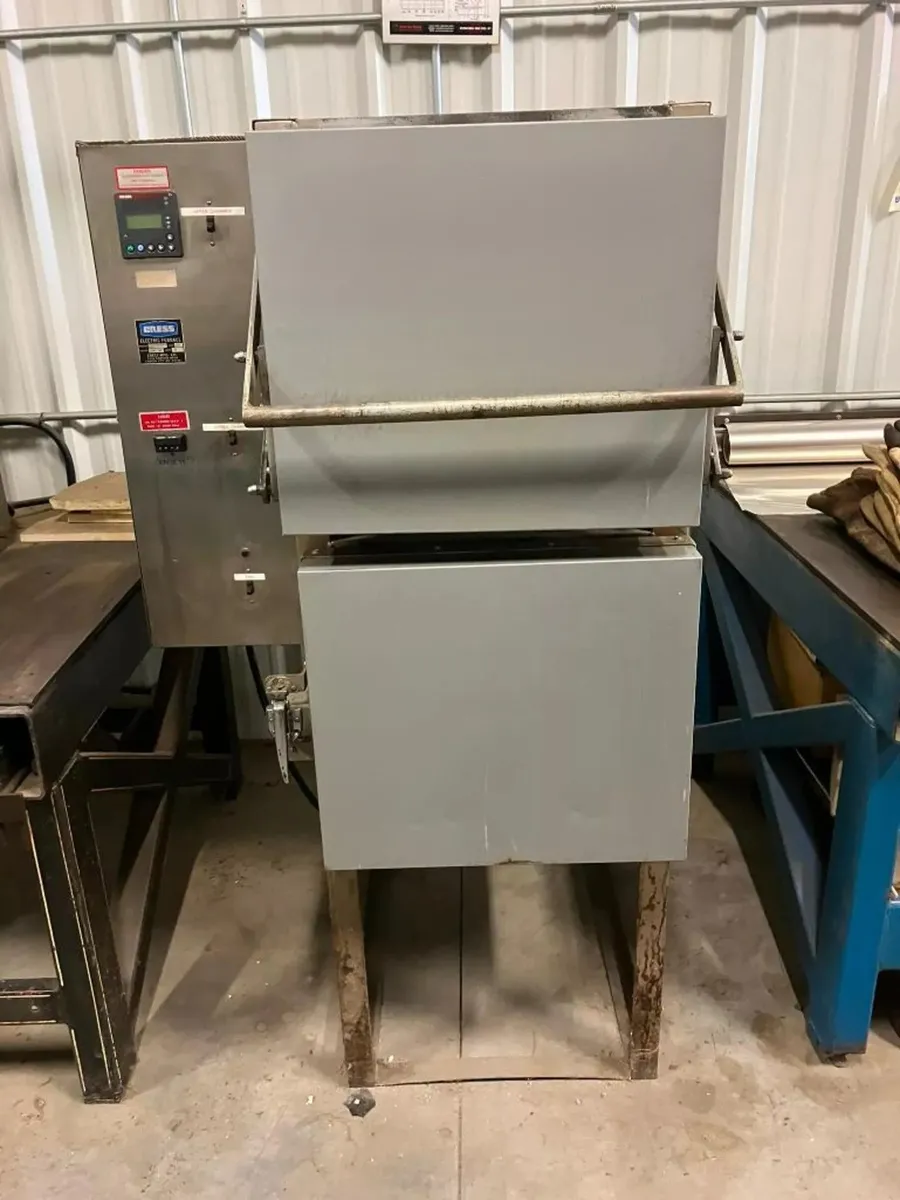

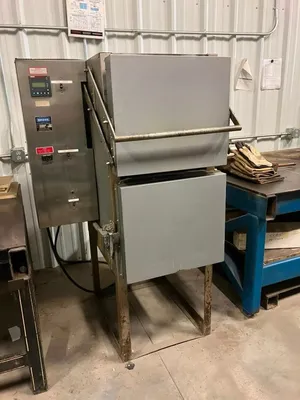

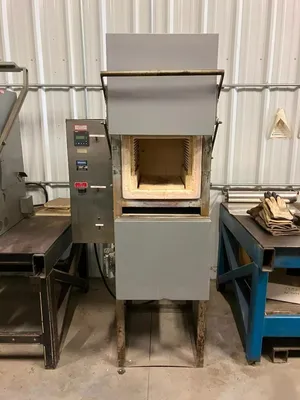

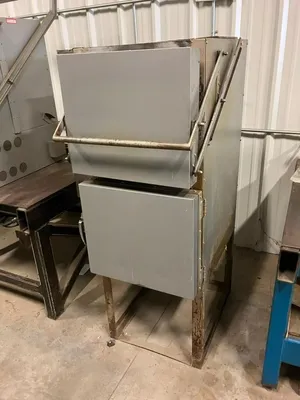

12"x12"x20" Cress C122012D/F40935L Duel Chamber Heat Treat/Draw Furnace

The Cress C122012D/F40935L is a dual-chamber electric furnace (12"W x 12"H x 20"D per chamber) designed for heat treating (upper) and tempering (lower) with a 2,250/1,250 max temp rating, 8.5 kW power, and automatic controllers.
It is used for industrial heat treating, assaying, and laboratory testing.

Upper Chamber Width 12 in
Upper Chamber Length 20 in
Upper Chamber Height 12 in
Lower Chamber Width 12 in
Lower Chamber Length 17 in
Lower Chamber Height 12 in
Overall Width 37 in
Overall Length 38 in
Overall Height 64 in
Maximum Temperature Upper Chamber 2250 ºF
Maximum Temperature Lower Chamber 1250 ºF
Power 230V 3 Phase
Weight 950 lb

Features:
Construction: Heavy gauge sheet steel with gray hammertone finish; insulating firebrick in upper chamber, block insulation in lower chamber.
Elements: Alloy wire heating elements mounted on side walls.
Safety: Dual door safety switches cut power to elements when the door is opened.
Door: Counterbalanced design for safe operation
