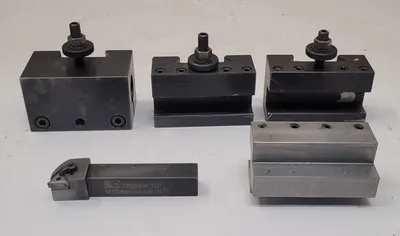

Dorian Tool – Set of 3 Tool Holders w/ Kennametal Tool

Dorian Tool – Set of 3 Tool Holders w/ Kennametal Tool

Brand: Dorian Tool

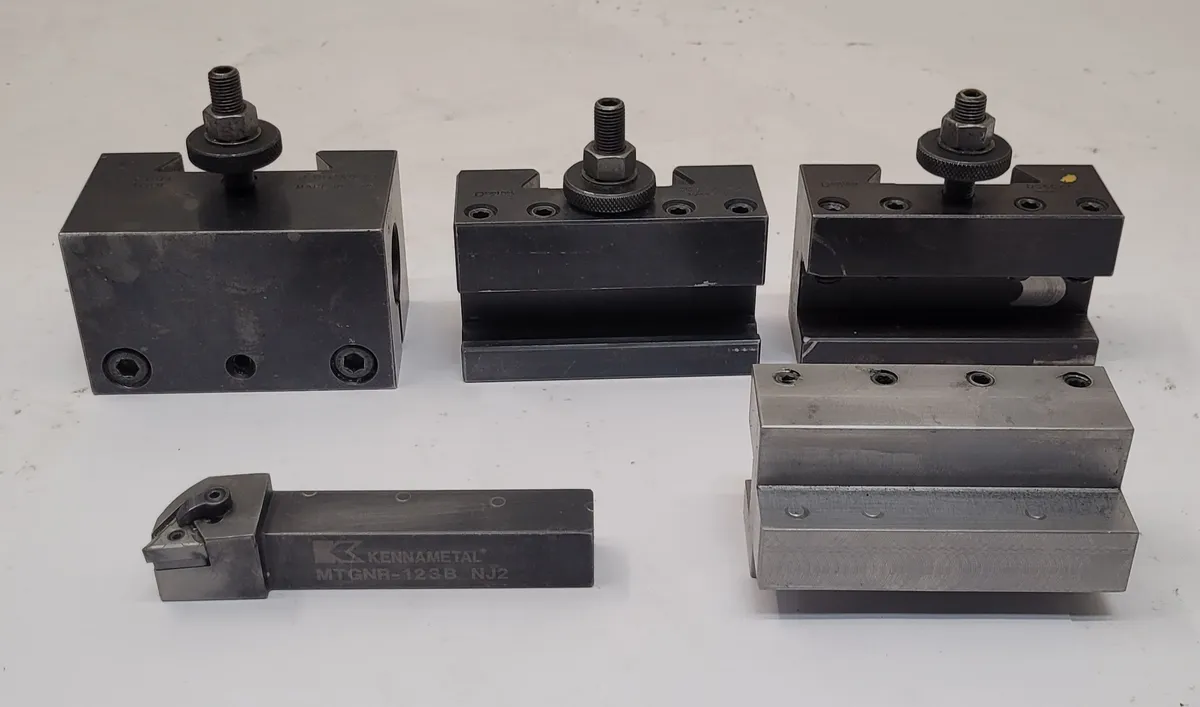

Set of 3

Part Numbers Include:

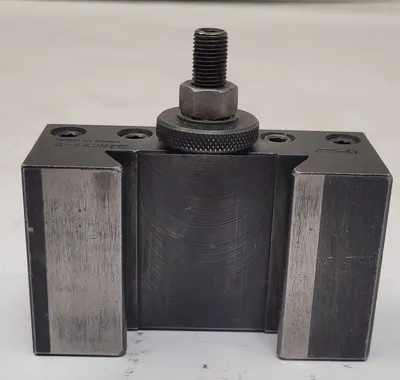

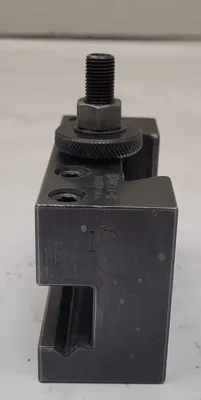

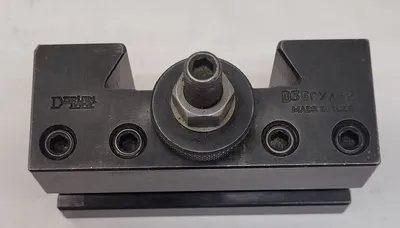

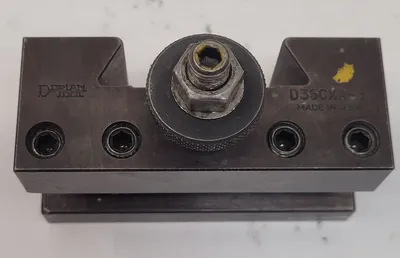

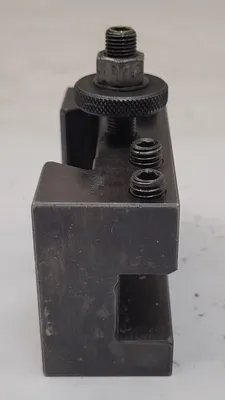

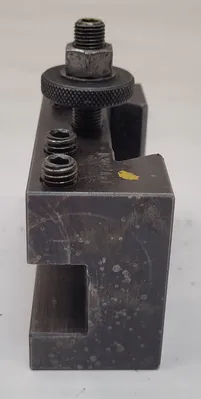

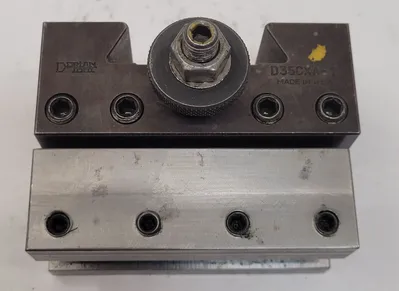

D35CXA-1
Holder Number: 1 (Turning & Facing)
Series: CXA (for 14" to 17" swing lathes)
Tool Capacity: 3/4" to 1" square shank
Dimensions: 3.75" Length (C) x 2.5" Height (E) x 1.75" Width (D)
Centerline Height: 2.29" (Maximum)

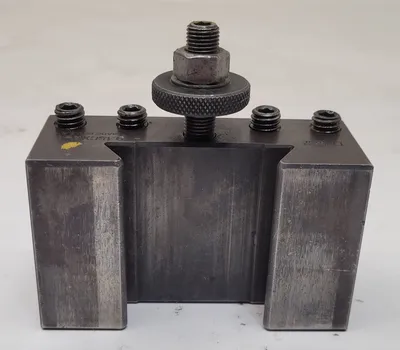

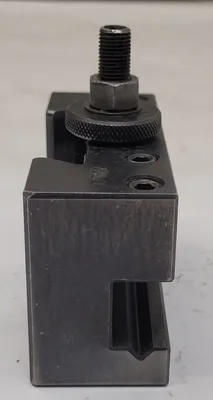

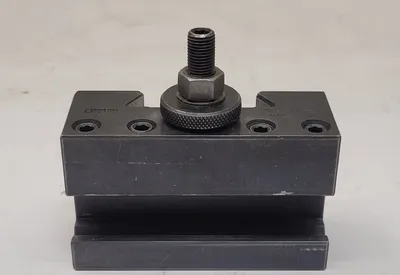

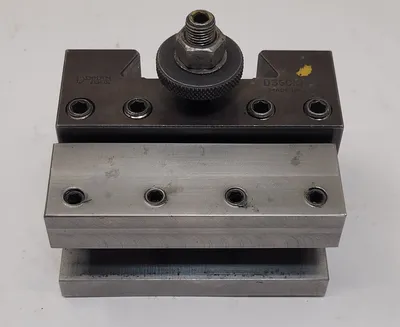

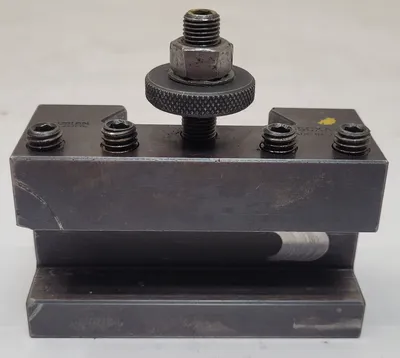

D35CXA-2
Lathe Swing: 14 to 17 inches
Shank Capacity (Square): 3/4" - 1"
Boring Bar Capacity: Up to 1"
Overall Width: 3.75"
Overall Height: 2.5"
Maximum Centerline Height: 2.29"
Features: V-Groove for versatility

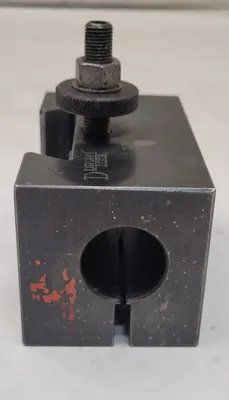

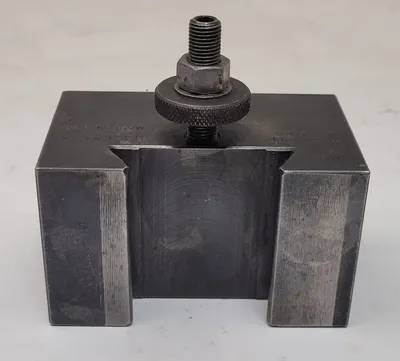

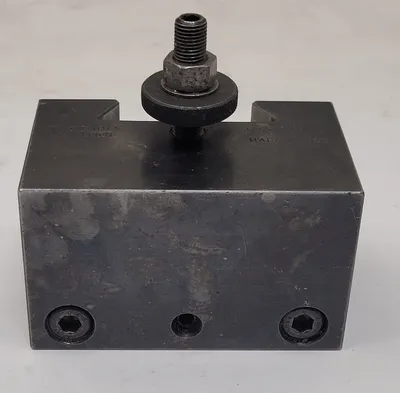

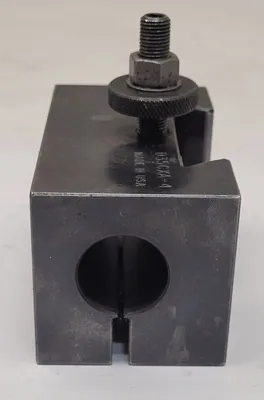

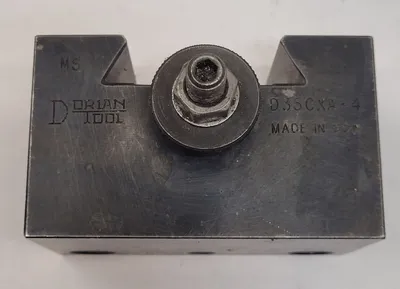

D35CXA-4
Lathe Swing: 14 to 17 inches
Holder Type: Boring Bar
Tool Capacity: 1”
Overall Width: 3.75" (95 mm)
Overall Height: 2.25"
Overall Length: 2.25"

Also includes:

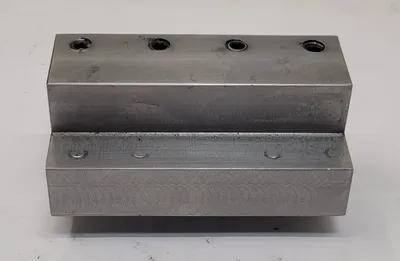

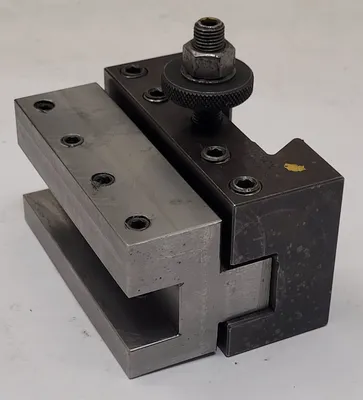

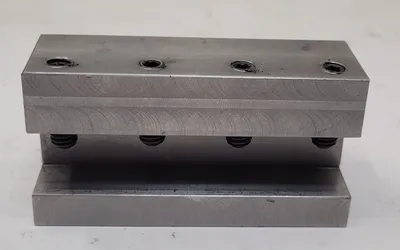

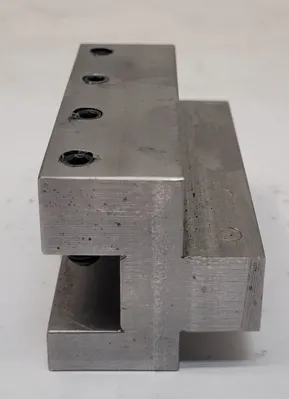

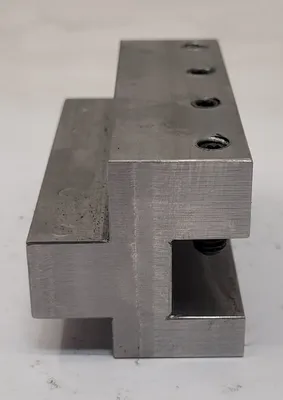

1 – Tool Holder Adapter

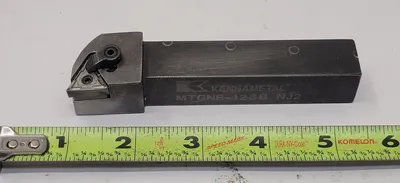

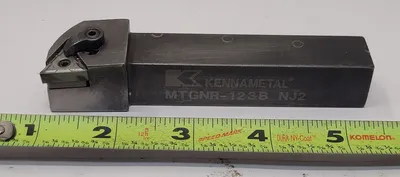

1 – Kennametal MTGNR-123B Tool
Shank Height 0.75 in
Shank Width 0.75 in
F Dimension 1 in
Tool Length 4.5 in
Head Length 1.127 in
Gage Insert TN..332
Lock Pin ID Drive Size 5/64
Clamp Screw ID Drive Size 3/32
