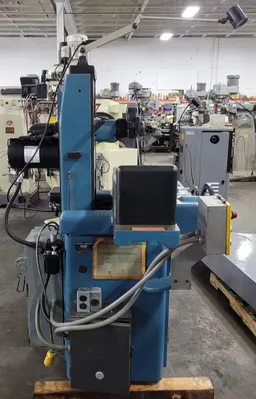

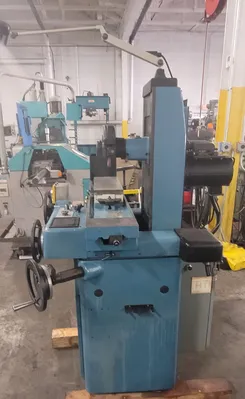

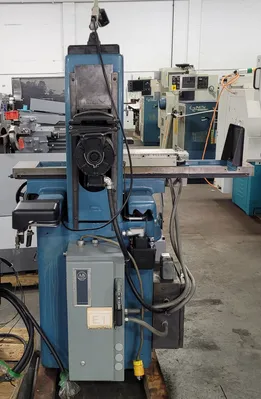

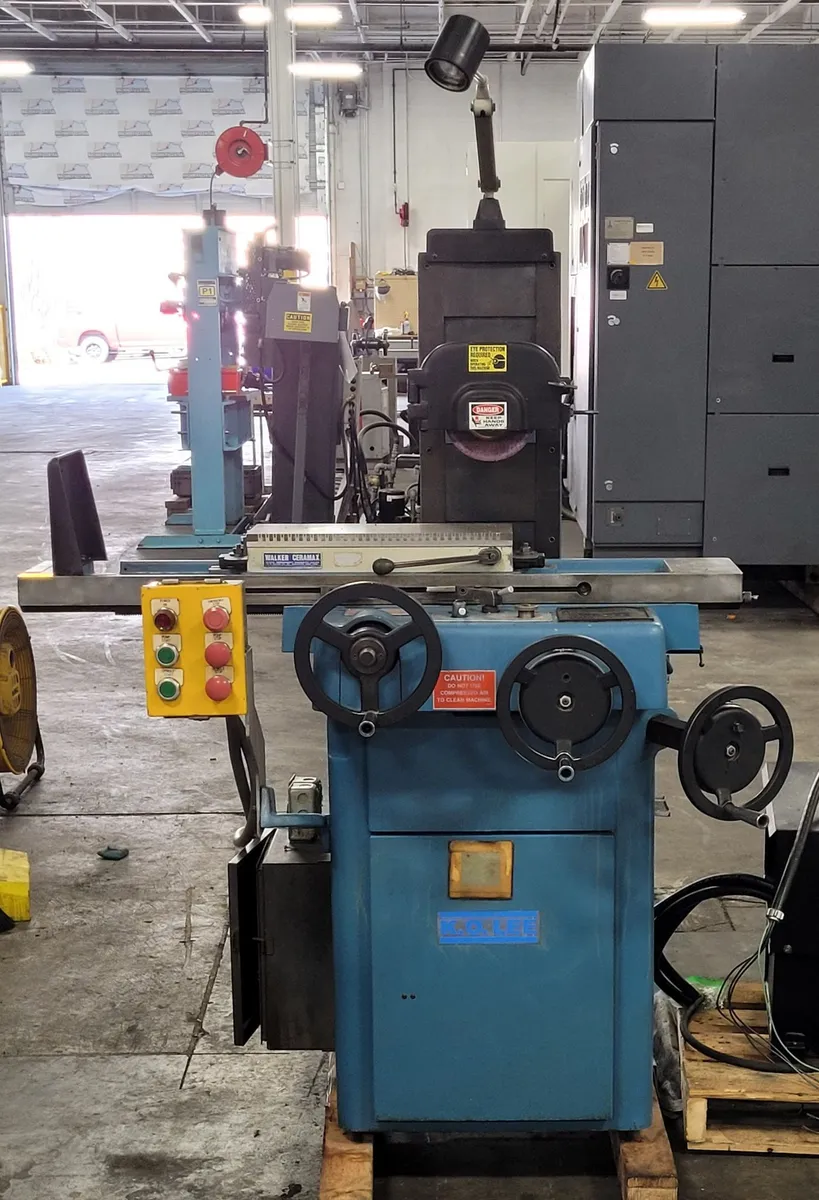

The K.O. Lee S618H1 is a 6” x 18” high-precision hydraulic surface grinder, often featuring a 1.5 HP to 2 HP spindle motor, 3600 RPM spindle speed, and a table load capacity of 550 lbs.
It is designed for fine grinding with automatic cross-feed and longitudinal table speeds ranging from 16' to 82' ft./min.

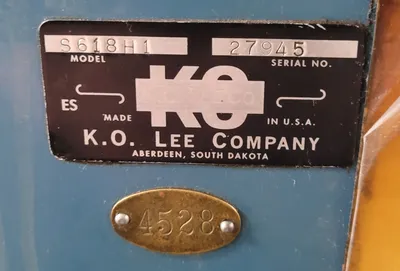

Serial Number: 27945
Key Technical Specifications:
Working Surface: 6” x 18”

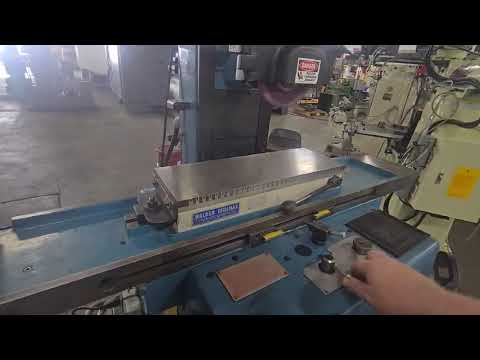

Walker Ceramax Magnetic Chuck
Table Travel (Max): 7” x 19”

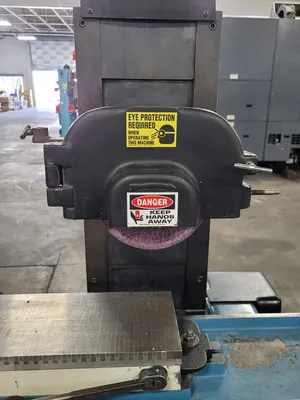

Grinding Wheel Size: 8" x 1/2" x 1-1/4"
Spindle Speed: Approx. 3600 RPM

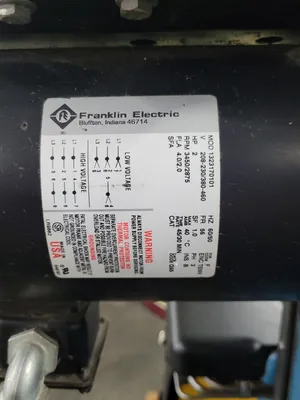

Spindle Motor: 1.5 HP Standard (2 HP Optional)
Vertical Feed Graduation: 0.0002” (0.05 mm)
Cross Feed Graduation: 0.0001” (0.02 mm)
Approx. Net Weight: 2046 lbs
Features & Capabilities:

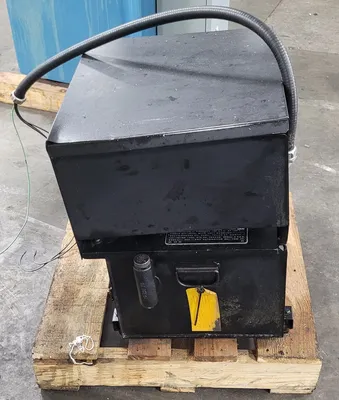

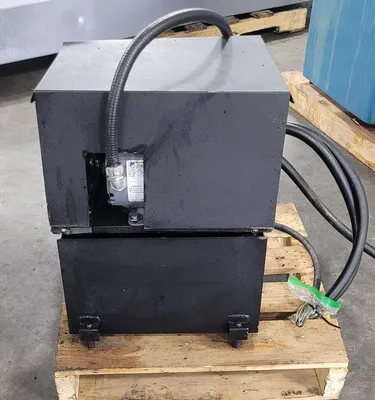

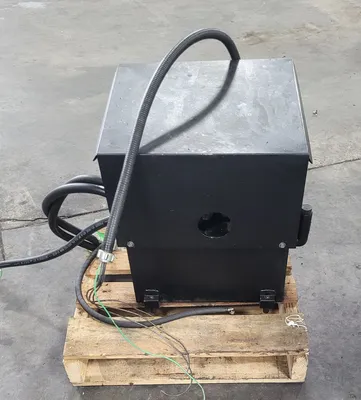

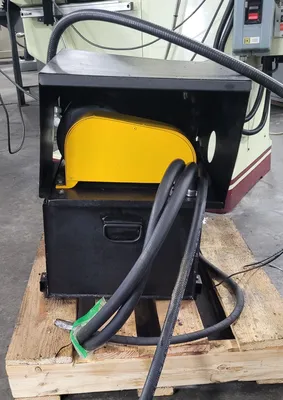

Hydraulic System: Includes a 1 HP hydraulic pump motor for automatic table movement.
Surface Capacity: Maximum distance from center of spindle to table is 20.47”.

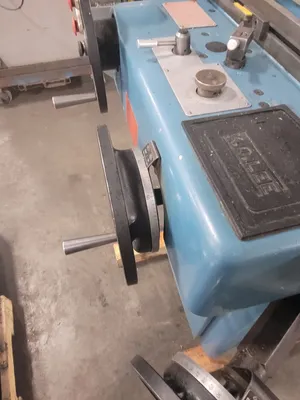

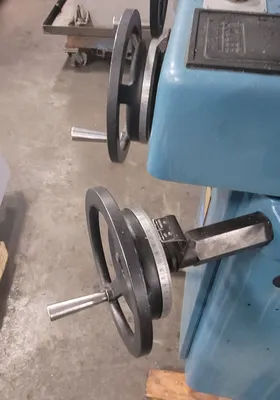

Operation: Features include independent table speed control, dampened reversal, and safe, quick-release manual table operation.
Structure: Cartridge-type spindle with pre-loaded angular contact bearings.
