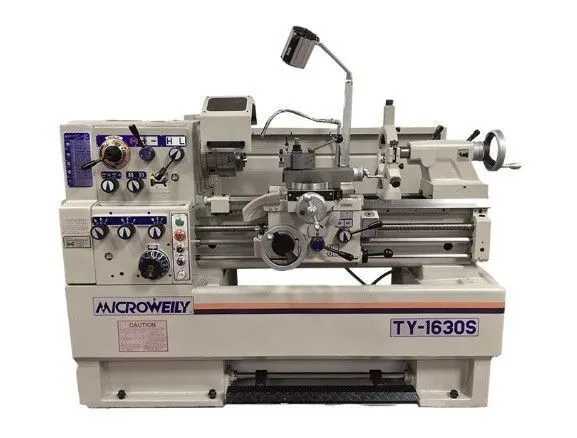

16” x 30” MICROWEILY TY-1630S Toolroom Lathe,
s/n A9304-009,
Swing: 16",
Swing over the Cross Slide: 9 7/16",
Centers: 30",
Spindle nose: D1-6
Spindle taper in nose/sleeve: No.6/No.4 Morse
Number of spindle speeds:12
Speed range rpm:30-2000
Imperial threads: 40 Nos. 2-56 T.P.I.
Metric threads mm: 53 Nos. 0.4-14 Pitch
Diametral pitch threads: 32 Nos 4-32 D.P.
Module pitch threads: 44 Nos. 0.4-7 M.P.
Tailstock Quill taper: No.4 Morse
Heidenhain 2-Axis DRO,
Inch/Metric Threading,
10” 3-Jaw Chuck,
12” 4-Jaw Chuck,
Aloris Quick Change Tool Post,
Tailstock,
Steady Rest,
55-2000 RPM,
79" x 40" x 56"
4000lbs
