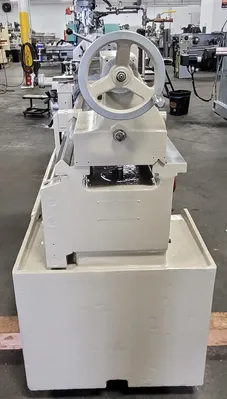

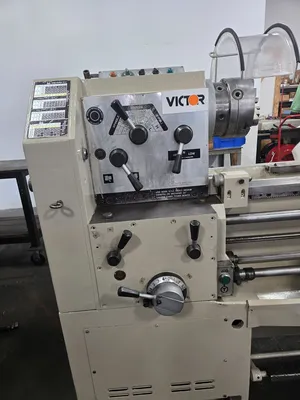

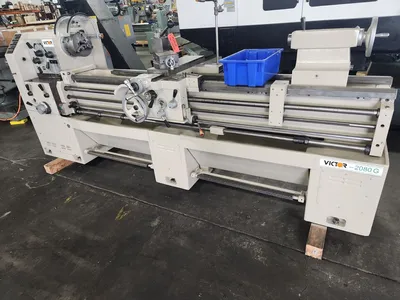

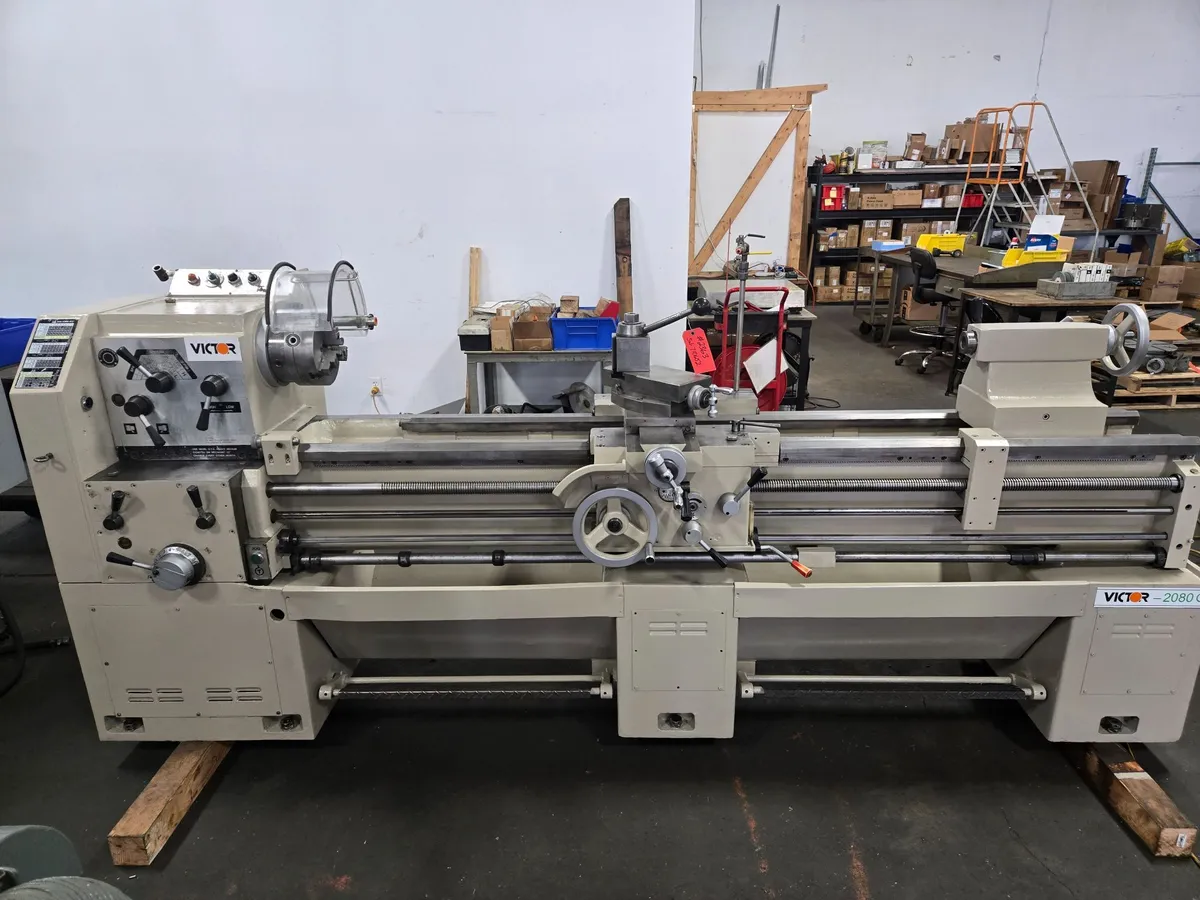

20/26 x 80 Victor 2080G Gap Bed Lathe w/Inch/Metric Threading

The Victor 2080G is a heavy-duty gap bed engine lathe designed for precision, featuring a 20-inch swing over the bed and 80 inches between centers, often found in industrial, maintenance, and toolroom environments.

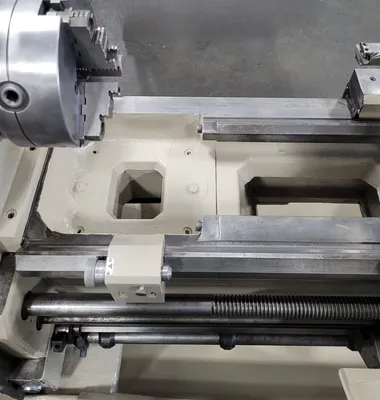

The "G" designation indicates a removable gap section, allowing for a larger, short-length capacity (typically 26-30" diameter) for flange turning.

Key Technical Specifications
Swing Over Bed: 20"
Swing in Gap: Approx. 26-3/8"
Swing Over Cross Slide: 12-1/2" to 13"
Distance Between Centers: 80"
Spindle Bore: 3-1/8"
Spindle Nose: D1-8 Camlock
Spindle Speeds: 30 to 1800RPM

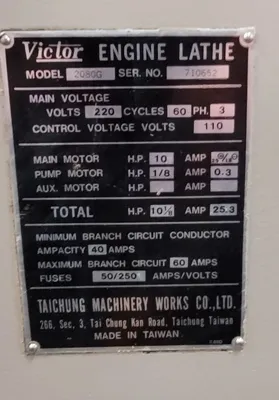

Main Motor: 10 HP(3 Phase, 220V)
Bed Width: 12" (Hardened and Ground)
Tailstock Quill Travel: 5-1/8"
Tailstock Taper:MT5
Weight: Approx. 6,870 lbs

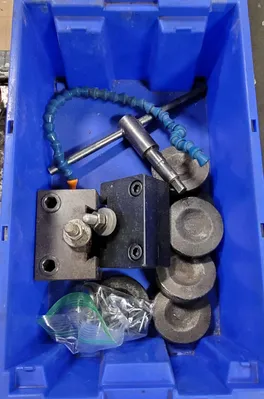

Standard Features and Equipment

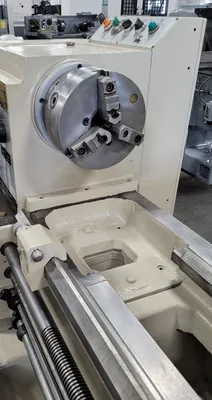

8” 3-Jaw Chuck,

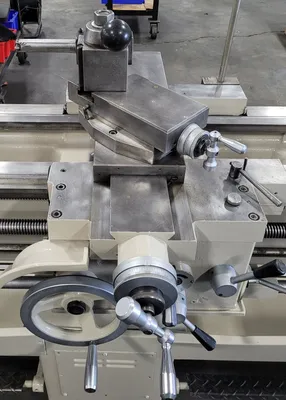

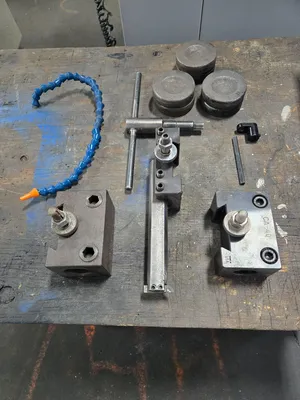

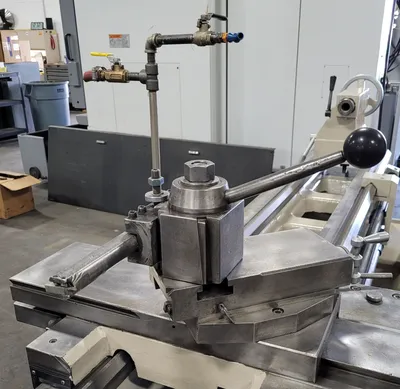

Quick Change Tool Post,

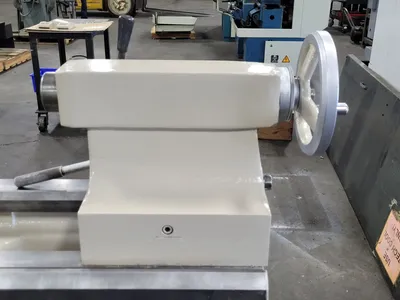

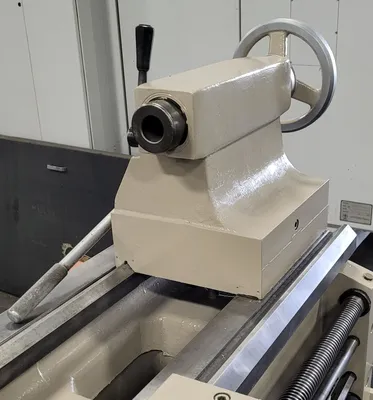

Tailstock,
Steady Rest

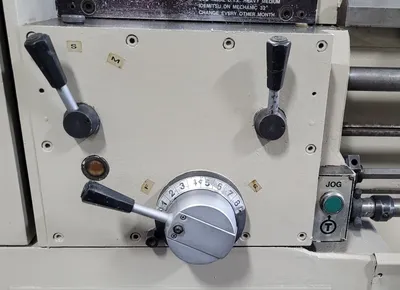

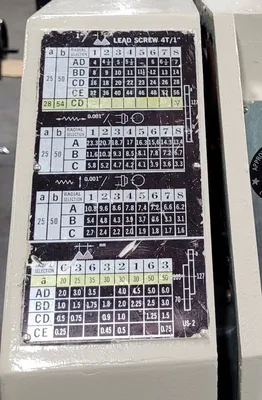

Thread Capacity: Inch (60 kinds, 2-112 TPI) and Metric (41-60 kinds, 0.1-14mm)
Feeds: Longitudinal and Cross
Safety: Emergency foot brake
