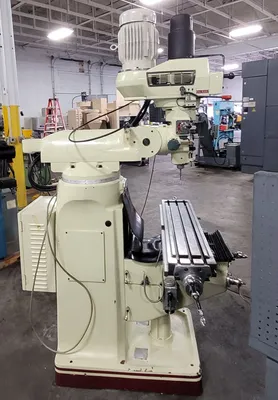

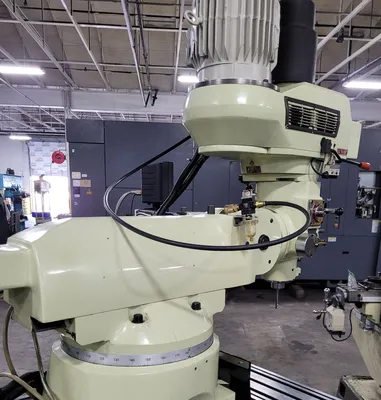

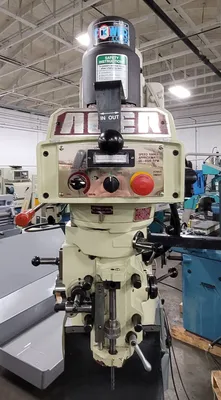

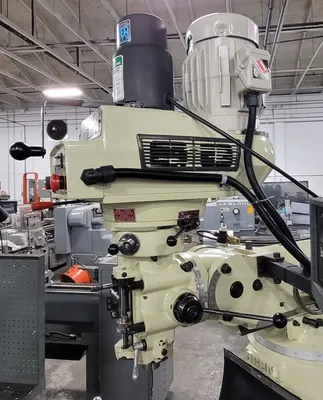

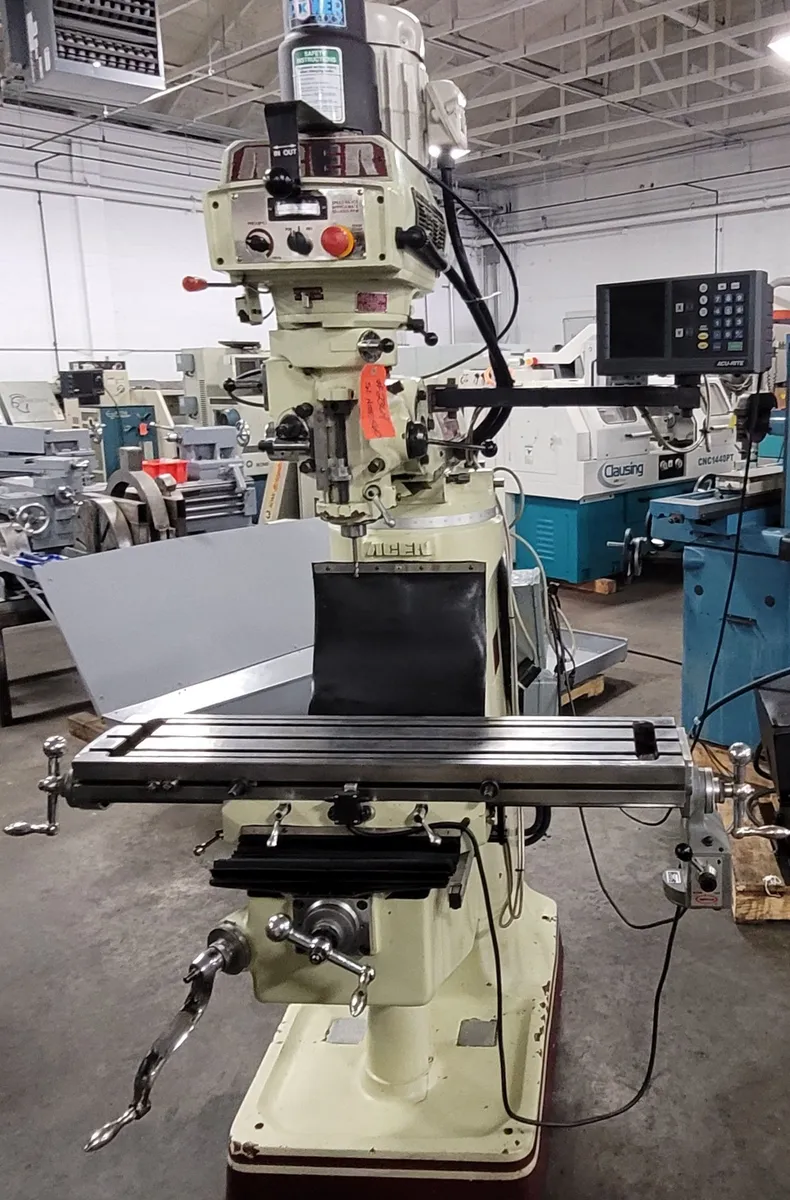

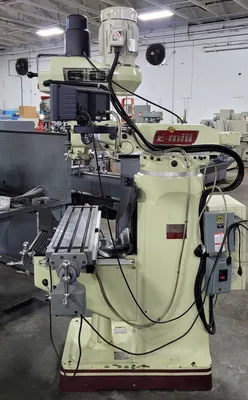

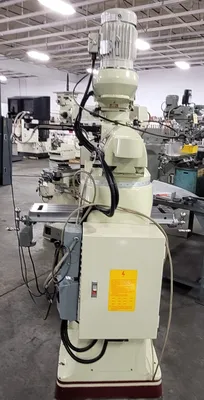

The 2001 Acer E-Mill 3VS is a 3 HP, 9" x 42" vertical milling machine featuring a 60–4,500 RPM variable-speed spindle, R-8 taper, and 5" quill travel.
It includes Meehanite casting, hardened/ground ways, and a 2-axis digital readout (DRO), designed for precision machining in 220V (3 phase).

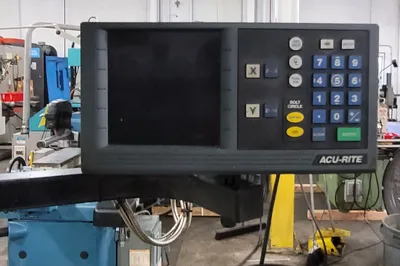

AcuRite 2 Axis DRO

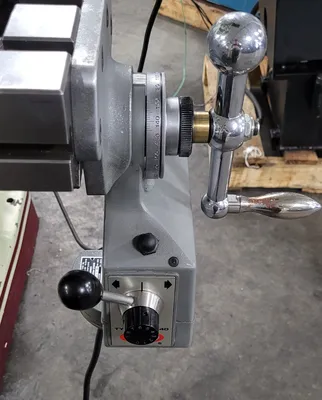

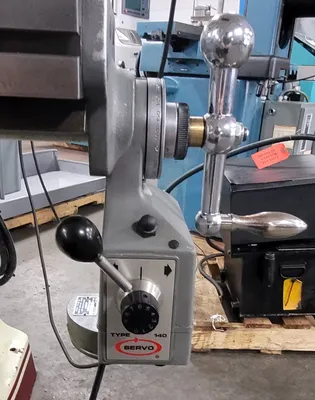

Servo X Axis Power Feed
Kurt Power Draw Bar
Key Specifications for 2001 Model 3VS:
Table Size: Standard 9" x 42"

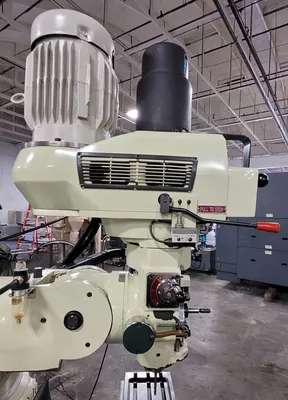

Motor: 3 HP Baldor motor with inverter drive
Spindle Speed: 0 – 4,500 RPM (variable speed)
Spindle Taper: R-8
Quill Travel/Diameter: 5" travel / 3-3/8" diameter
Travels (X/Y/Z): Approx. 28"–34" Longitudinal, 12" Cross, 16" Knee
Weight: Approx. 2,500lbs
Standard Features:
Control: Variable frequency drive (VFD) for speed control
Ways: Hardened and ground dovetail ways (HRC 52°)
Lubrication: One-shot lubrication system
Construction: Meehanite casting for rigidity
