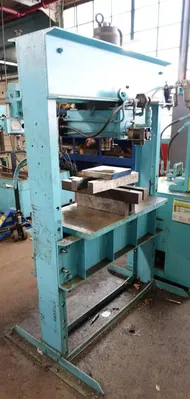

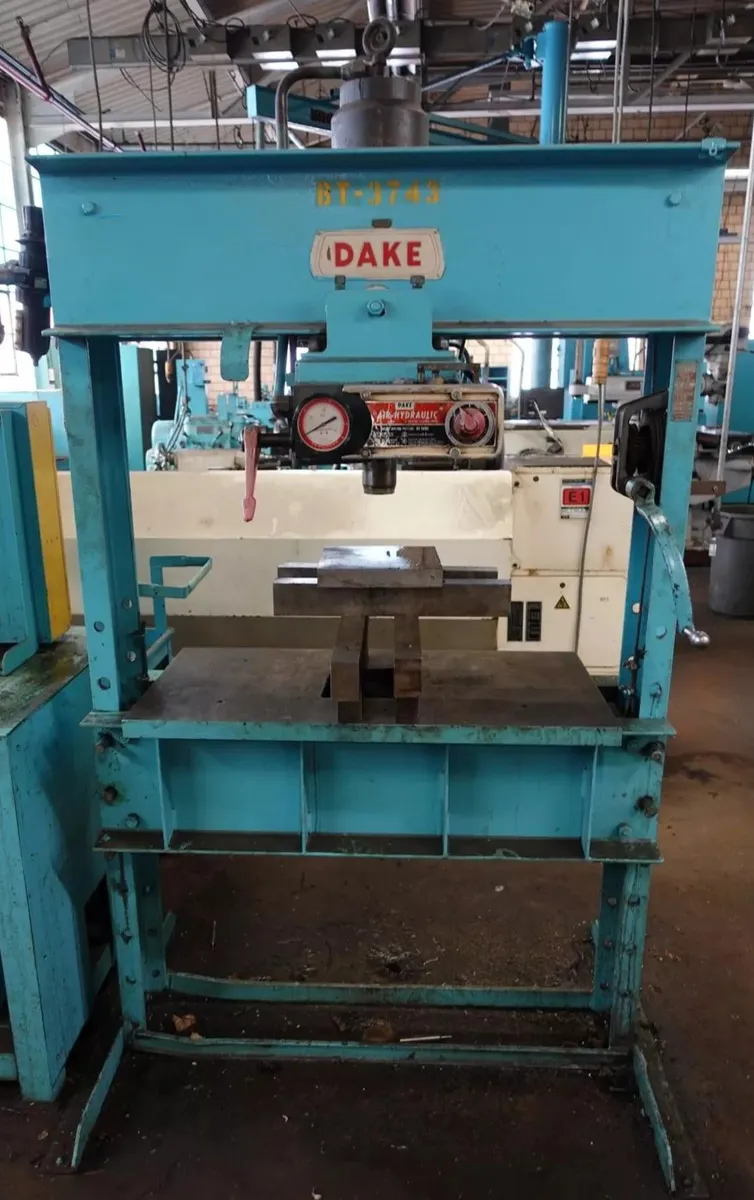

75 Ton Dake 6-275 H Frame Press

The Dake 6-275 is a 75-ton capacity air hydraulic H-frame press designed for heavy-duty workshop use, featuring a 10-inch ram stroke, 44-inch width between uprights, and a 24-5/8 inch horizontal workhead travel.
It operates at 90-125 PSI, offering 45 IPM advance speed and 2 IPM pressing speed.
Key Specifications for Dake 6-275:
Capacity: 75 Tons
Operation: Air-Operated
Ram Travel (Stroke): 10 inches
Width Between Uprights: 44 inches
Width Between Table Channels: 8-1/4 inches
Maximum Ram to Table (Daylight): 36 inches
Horizontal Workhead Travel: 24-5/8 inches
Air Pressure Required: 90-125 psi
Approx. Speed: 45 ipm advance, 2 ipm pressing
Dimensions: 55" x 36" Base, 86" Height
Weight: 1,500 - 1,550 lbs
