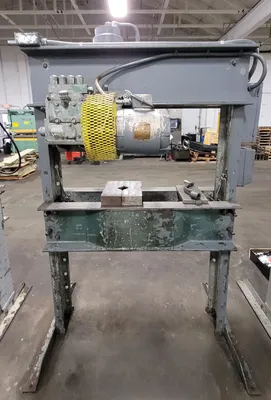

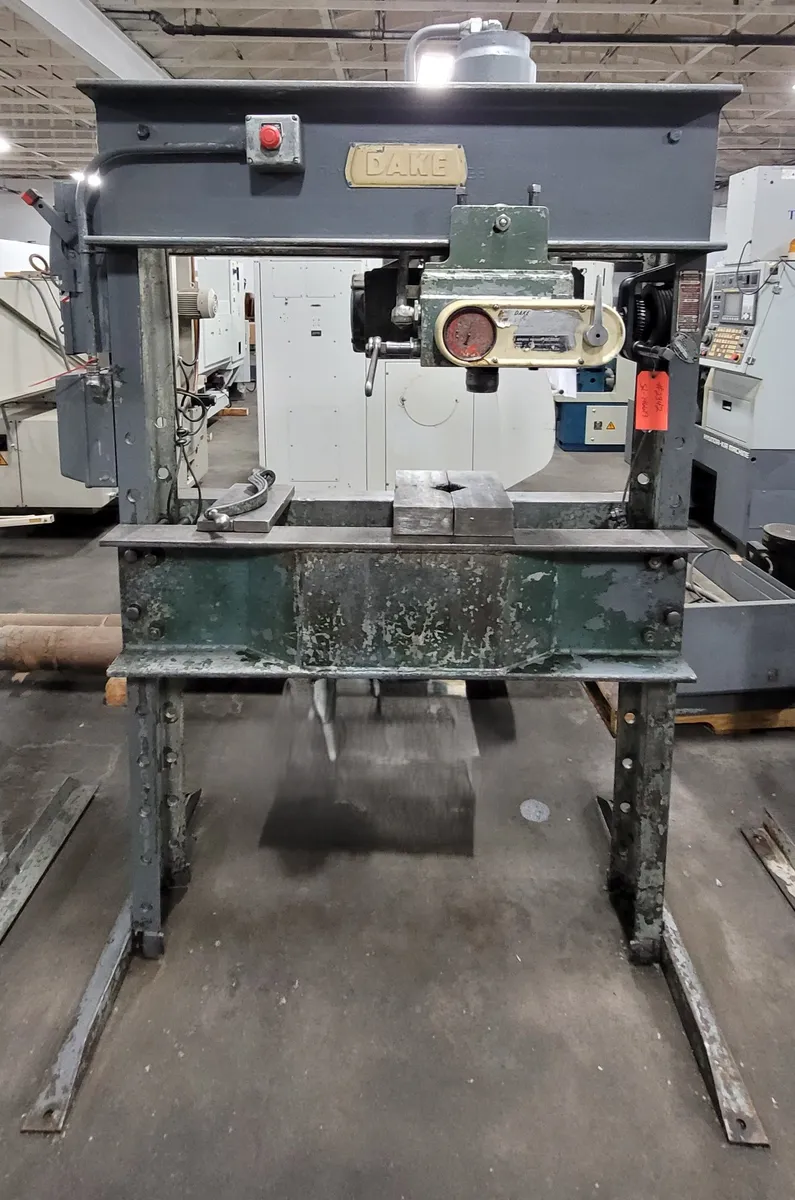

75 Ton Dake 5-075 Elec-Draulic H Frame Press

The Dake 5-075 Elec-Draulic I H-Frame Press is a 75-ton electric-hydraulic press featuring a movable workhead, 44-inch width between uprights, and 6–36 inch table range.
It operates on 220V/440V 3-phase power, with a 2 HP motor, 10-inch ram travel, and a 24-inch horizontal workhead travel. The press is designed for heavy-duty industrial, maintenance, and production applications.

Key Specifications for Dake 5-075 (Elec-draulic):
Capacity: 75 tons
Operation: Electric/Hydraulic (Elec-draulic)
Motor: 2 HP, 220V/440V, 3-Phase
Width Between Uprights: 44 inches
Width Between Table Channels: 8 1/4 inches
Ram to Table: 6 inches (min) – 36 inches (max)
Ram Travel: 10 inches
Horizontal Workhead Travel: 24 inches
Ram Speed (Advance): 28 IPM (approx.)
Ram Speed (Pressing): 5 IPM (approx.)
Weight: 1,245 lbs
Dimensions: ~55" x 36" x 87"
Key Features:

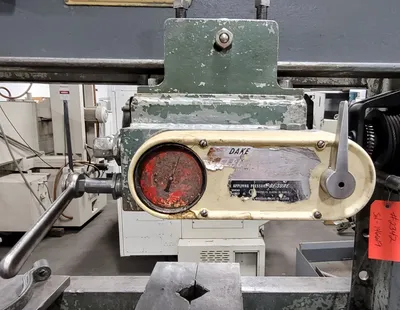

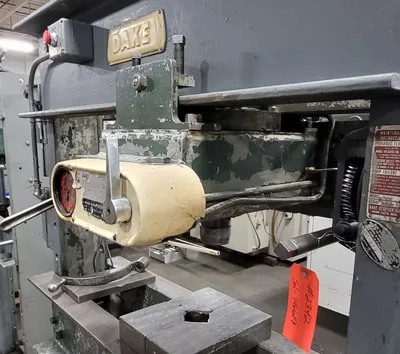

Movable Workhead: Travels horizontally 24 inches for off-center work.

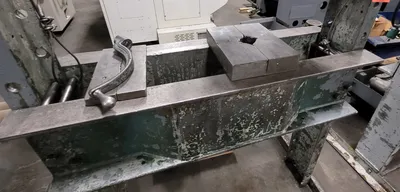

Table Adjustment: Adjustable table with self-locking hoist.
Control: Fingertip control and safety overload bypass.
