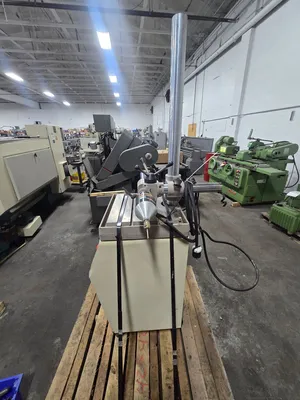

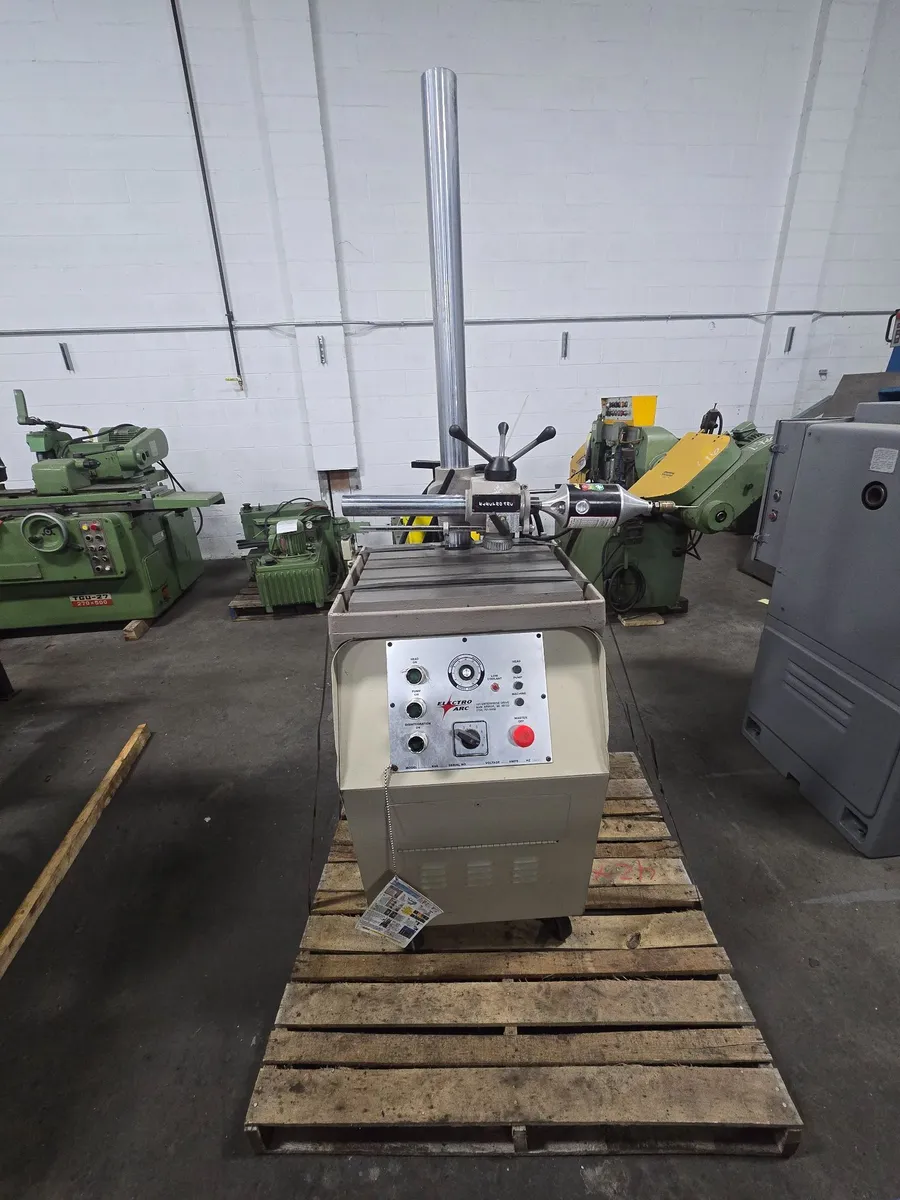

Electro Arc Disintegration Machine/Tap Disintegrator.
Model 2-SE
KVA 10
Electrical: 220 Volts.
Frequency: 50/60 Hz.
Serial No. 15278
This 10 KVA Electro Arc 2-SE can salvage parts without damage in minutes –disintegrate broken screws, fasteners, bolts and taps – no heat distortion or thread damage

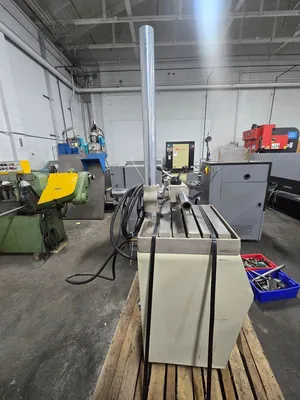

The sturdy single crossarm provides rigidity and ease of setup.
Making positioning easy
Arc•er Head
Manual Feed
30” (762 mm) of work space between spindle and table
Easy to secure parts to the work surface
Minimal maintenance required

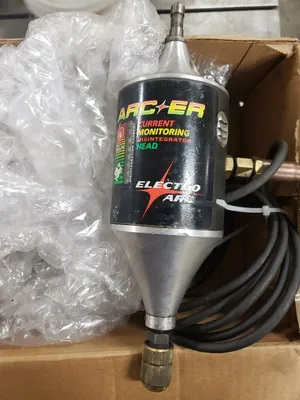

Compact, Durable ARCER Head.
This portable disintegrator head provides reliable, accurate heavy-duty service with minimal maintenance.
The state-of-the art LED Amp Meter right in the body makes process control easy.
Head is 12 1/2 ” long overall and weighs 5.5 lb. A 1/2 ” diameter, 2” long straight shank allows the head to be used remotely in fixtures or with other machine tools.
Spring Feed
Assists operator in feeding the disintegrator head in a continuous movement.
Manually adjusted.
Adjustable depth stop with automatic shutoff/retract.

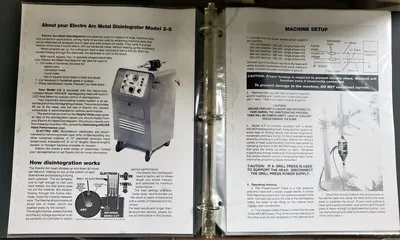

Standard Features
The head works by creating 50/60 positive arcs per second at the target metal with a molybdenum electrode.
Provides 9” (229 mm) of rack and pinion travel. Built-in LED current monitoring indicator color-coded to
assist operator feed control. Operate at any angle. Can be rotated 360 degrees around the crossarm axis.
Feed scale graduated in 1 /16 ” (1 mm) increments.
CROSSARM: 2 1/4 " diameter 15" long hard-chrome plated radial crossarm. 360° rotation around the column.
Manual crossarm and rotation locks.

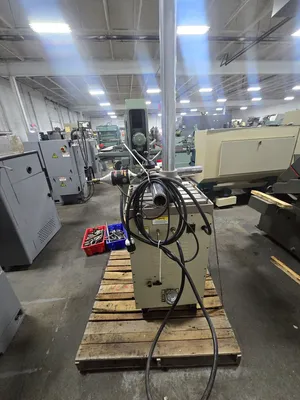

COLUMN : Hard chrome plated, 2 3/4 " diameter, 36" high. Maximum work height from head: 17" to the
table; 50" to the floor.12" lift rack for raising/lowering the crossarm.

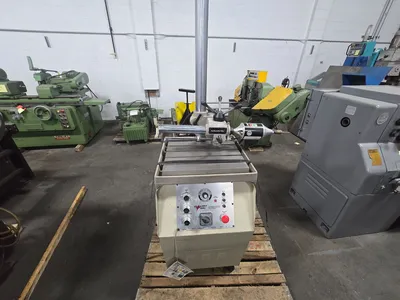

Heavy reinforced frame construction. 34" high. Ground, cast iron work top 20" wide x 18" deep with five

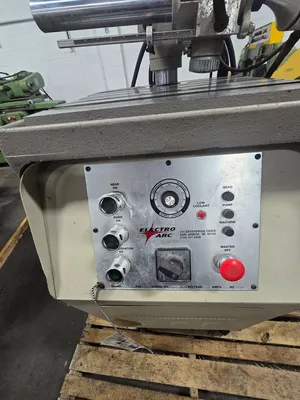

1/2 " “T” slots. Recessed control panel; lighted push buttons; indicator light for low coolant level; external fuses; master stop; four heavy-duty ball bearing casters.
Ventilating louvres. Storage drawer for electrodes and collets.
Built-in coolant tank. Wire mesh cartridge filter intake. Pump: 2 GPM, 90 PSI. Motor 1 /3 HP, single phase,
120 volt. Power coolant cable (conducts both liquid coolant and low-voltage current) 7 1 /2 ft. (2.3 m).
Approximate weights: Net: 390 lb. Gross domestic: 430 lb. Gross export: 450 lb.
