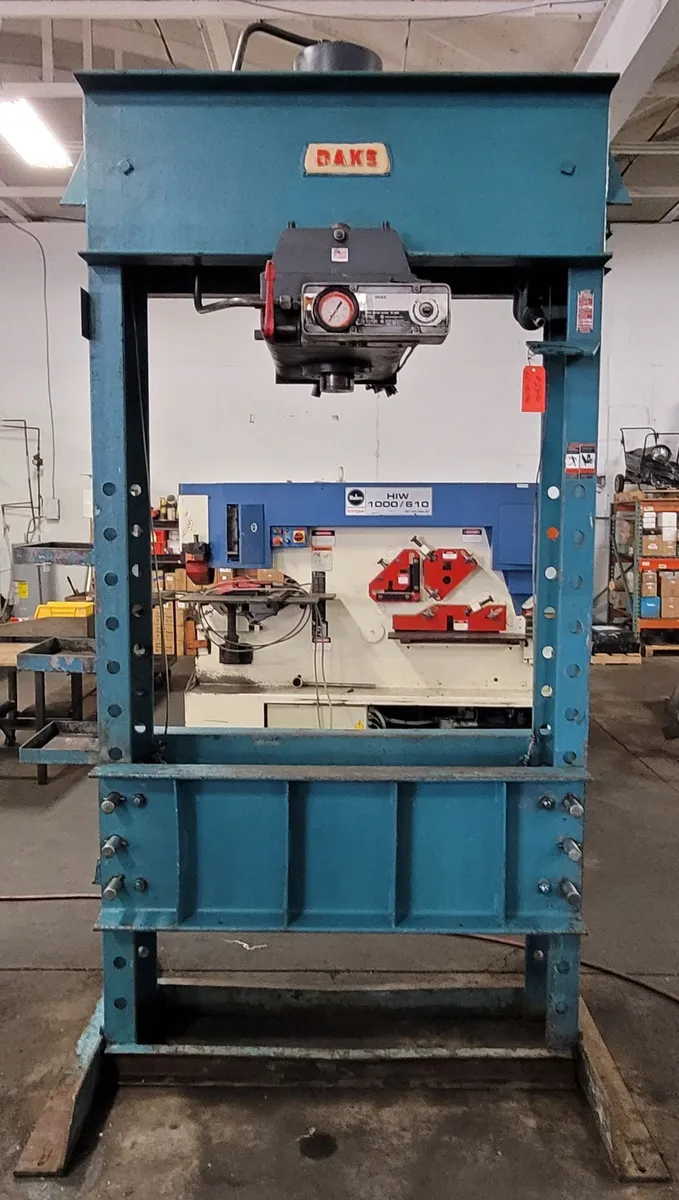

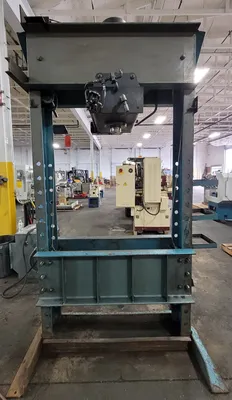

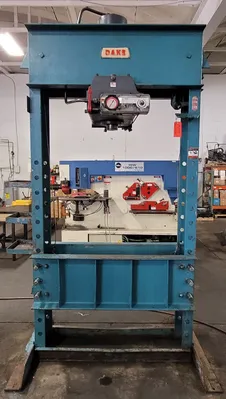

The Dake 150 Ton Air Operated H-Frame Press (Model 6-850 / #906850) is a heavy-duty industrial press designed for high-capacity fabrication work.
Dake 6-850 (150 Ton) Specifications
Capacity: 150 Tons
Operation: Air-over-hydraulic (requires 90-125 psi air pressure)
Ram Travel: 16 inches
Overall Width of Uprights: 56 inches
Width Between Uprights: 48 inches

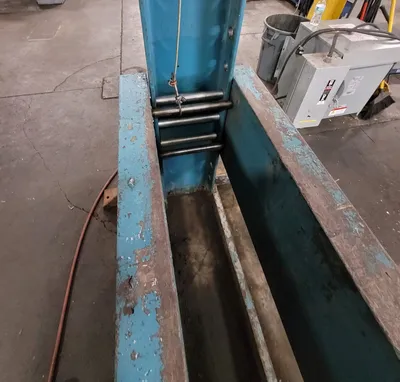

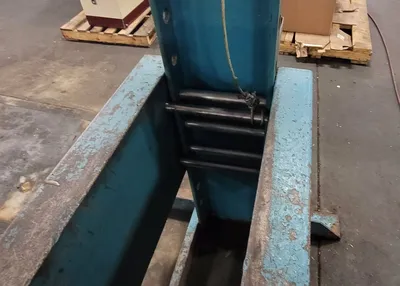

Width Between Table Channels: 12-1/2 inches
Maximum Ram to Table: 30 inches
Minimum Ram to Table: 10 inches
Horizontal Workhead Travel: 21-7/8 inches
Ram Speed (Advance): 22 ipm (inches per minute)
Ram Speed (Pressing): 2 ipm
Overall Height: 112 inches
Base Dimensions: 66 inches x 42 inches
Weight: 3,050 lbs
Key Features
Air-Operated: Eliminates the need for manual pumping.
Dual Air Pumps: Faster pressing speeds compared to single pump models.

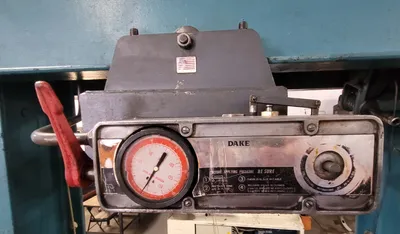

Movable Workhead: Roller-mounted for off-center positioning.

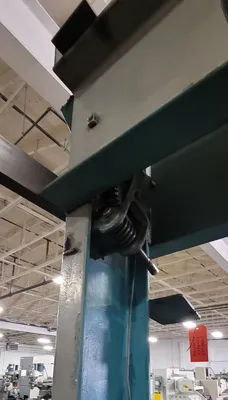

Table Hoist: Self-locking to easily adjust table height.

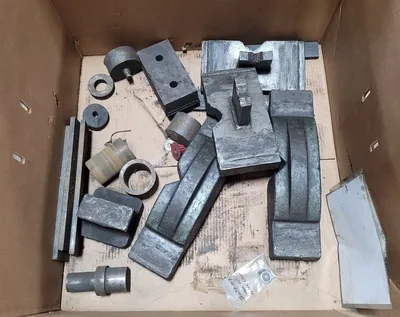

Accessories: Includes 2 forged steel V-blocks, 2 table plates, and a pressure gauge.
Construction: Heavy-duty welded steel frame.
