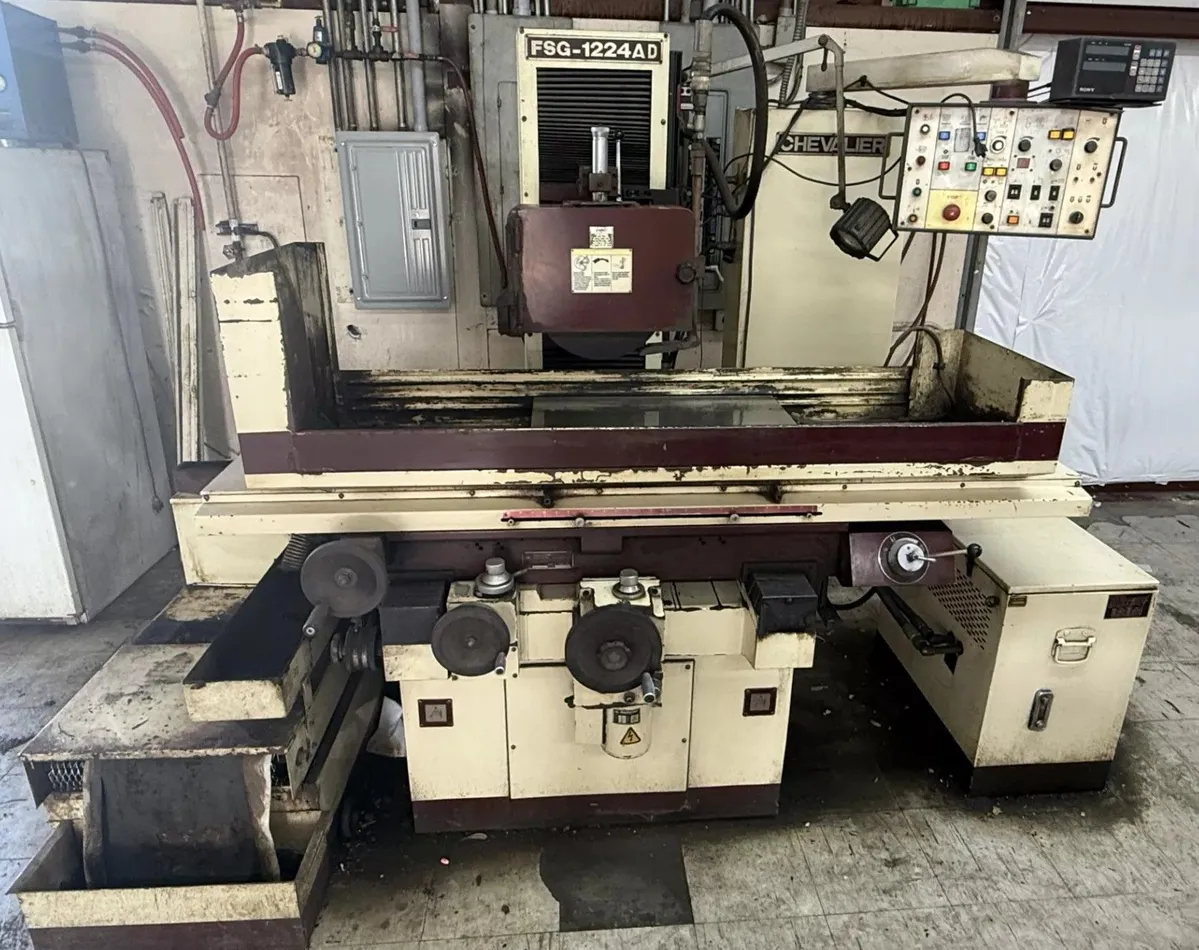

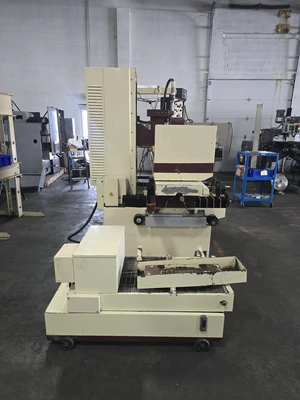

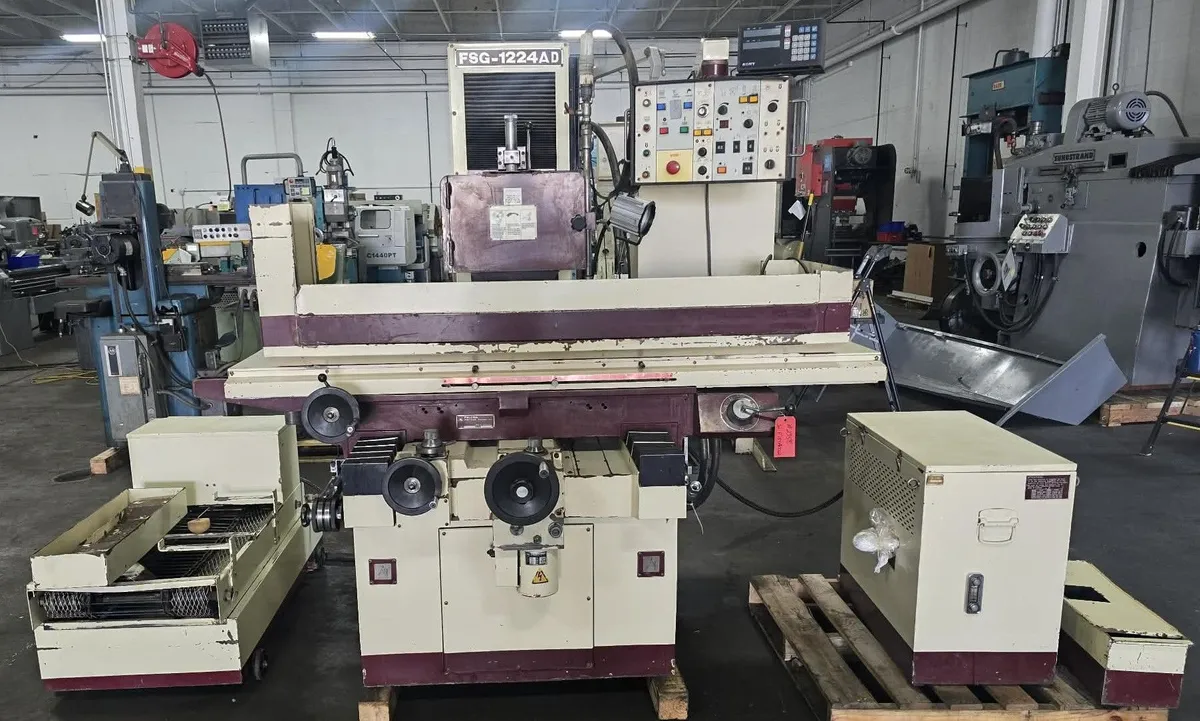

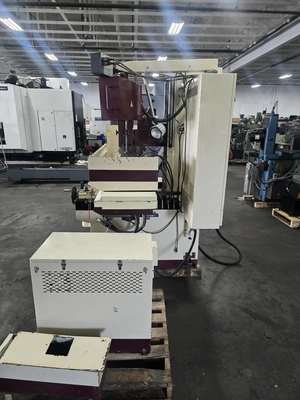

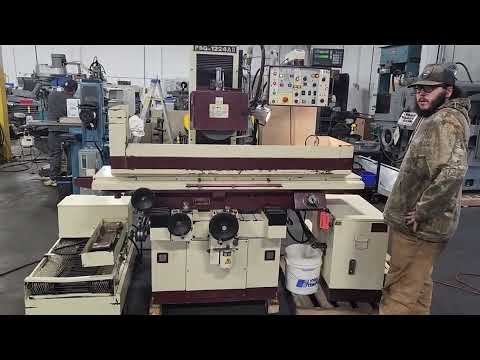

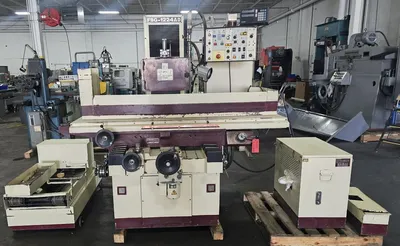

12" x 24" Chevalier FSG-1224AD PROGRAMMABLE AUTO IDF, SURFACE GRINDER, SONY DRO

12" X 24" CHEVALIER PRECISION SURFACE GRINDER W/PROGRAMMABLE MICROPROCESSOR AUTOMATIC INCREMENTAL DOWNFEED CONTROL
MODEL: FSG-1224AD

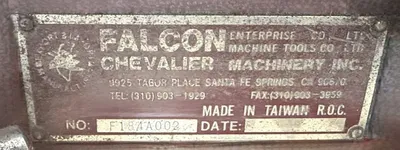

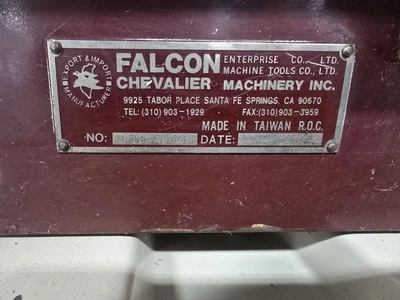

S/N: F184A002
TABLE SIZE......................... 11-3/4" X 25-3/8"
MAX. GRINDING CAPACITY .................... 12" X 24"
MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC ... 25-5/8"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL ...... 27-1/2"
MAX. CROSSFEED TRAVEL, AUTOMATIC ................ 12"
MAX. CROSSFEED TRAVEL, MANUAL ............... 13-3/4"
DIST. FROM SPINDLE CENTER TO TABLE .......... 19-3/4"
VARIABLE TABLE SPEED, HYDRAULIC ...... 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT ........ 1/8" TO 1-1/4"
CROSSFEED HANDWHEEL, PER GRADUATION ......... 0.0025"
PER REVOLUTION ................................ 0.25"
MICROFEED, PER REVOLUTION ................... 0.0005"
PER GRADUATION ............................. 0.00005"
AUTOMATIC INCREMENTAL DOWNFEED .... 0.00005" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION ........... 0.0005"
PER REVOLUTION ................................ 0.05"
MICROFEED ........................... 0.00005"/.0001"
RAPID TRAVERSE RATE .......................... 8" IPM
SPINDLE MOTOR .................................. 5 HP
STANDARD GRINDING WHEEL ......... 14"DIA. X 2"W X 5"B
APPROX. WEIGHT ............................ 4,850 LBS
APPROX. DIMENSIONS ................. 98" X 68" X 88"H

EQUIPPED WITH:

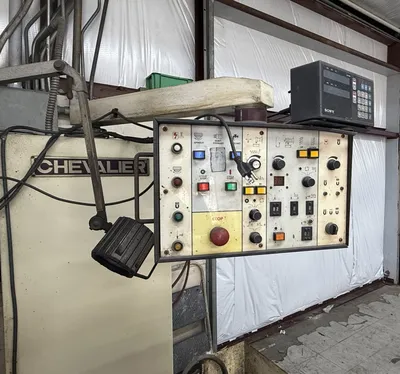

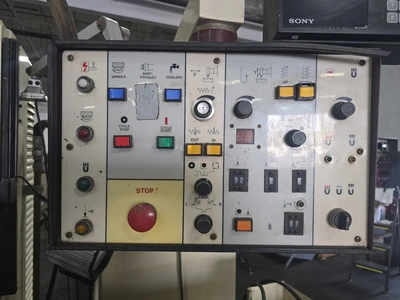

PENDANT MOUNTED AND MICROPROCESSOR CONTROLLED AUTOMATIC
INCREMENTAL DOWNFEED OF GRINDING WHEELHEAD FROM 0.00005" T0 0.002" IN SURFACE OR PLUNGE MODES OF OPERATION. FULLY AUTOMATIC GRINDING CYCLE INCLUDING RAPID ADVANCE OF GRINDING WHEELHEAD, 0 T0 7 SPARKOUT PASSES, AND RETRACTION OF WHEELHEAD TO A PRE-SET DISTANCE AT THE COMPLETION OF THE CYCLE.
HYDRAULICALLY ACUTATED LONGITUDINAL TABLE FEED
ELECTROMECHANICALLY ACTUATED FEED OF SADDLE
TABLE AND SADDLE GUIDE WAYS MADE OF SPECIAL STEEL RAILS WITH HIGH ACCURACY STEEL ROLLERS
PRECISION NEEDLE ROLLER BEARINGS USED ON THE ELEVATING GUIDE WAYS
FINE (MICRO) FEEDS GRADUATED TO .00005" FOR VERTICAL & CROSS FEEDS

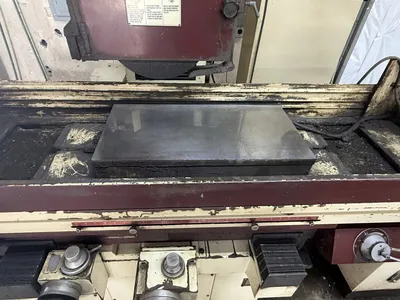

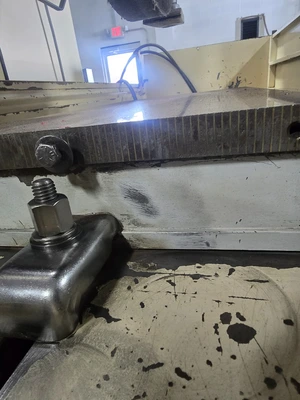

11-3/4" X 23-5/8" KANETSU ELECTROMAGNETIC CHUCK WITH A PENDANT MOUNTED POTENTIOMETER FOR VARIABLE HOLDING POWER AND A SELECTOR SWITCH FOR AUTOMATIC DEMAGNETIZATION OF WORK PIECE.

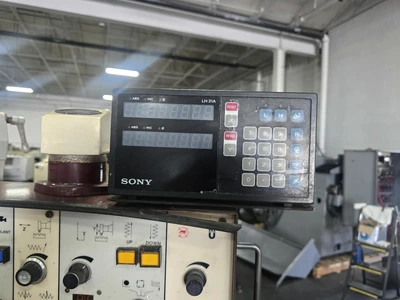

"SONY" TWO-AXIS DIGITAL READOUT DISPLAY

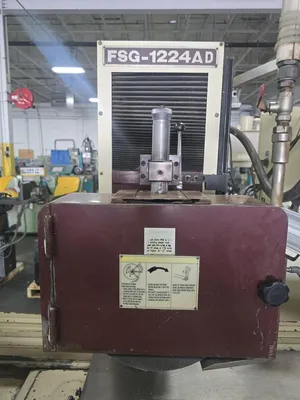

OVER THE WHEEL DRESSER

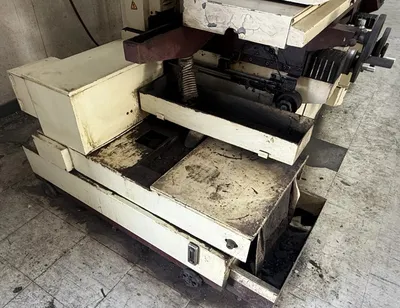

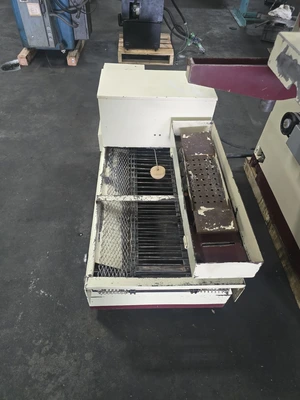

EXTERNAL COOLANT SYSTEM WITH PAPER FILTER

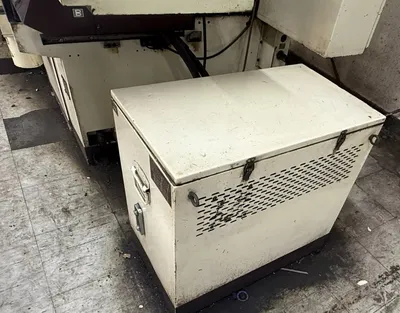

EXTERNAL HYDRAULIC PUMP AND TANK
5 HP 3/60/230-460 VOLT DRIVE SPINDLE MOTOR
MACHINE IS PREWIRED TO ACCEPT 230 OR 460 VOLTS

FOB COMING IN SOON
