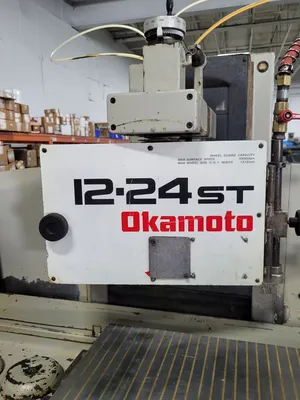

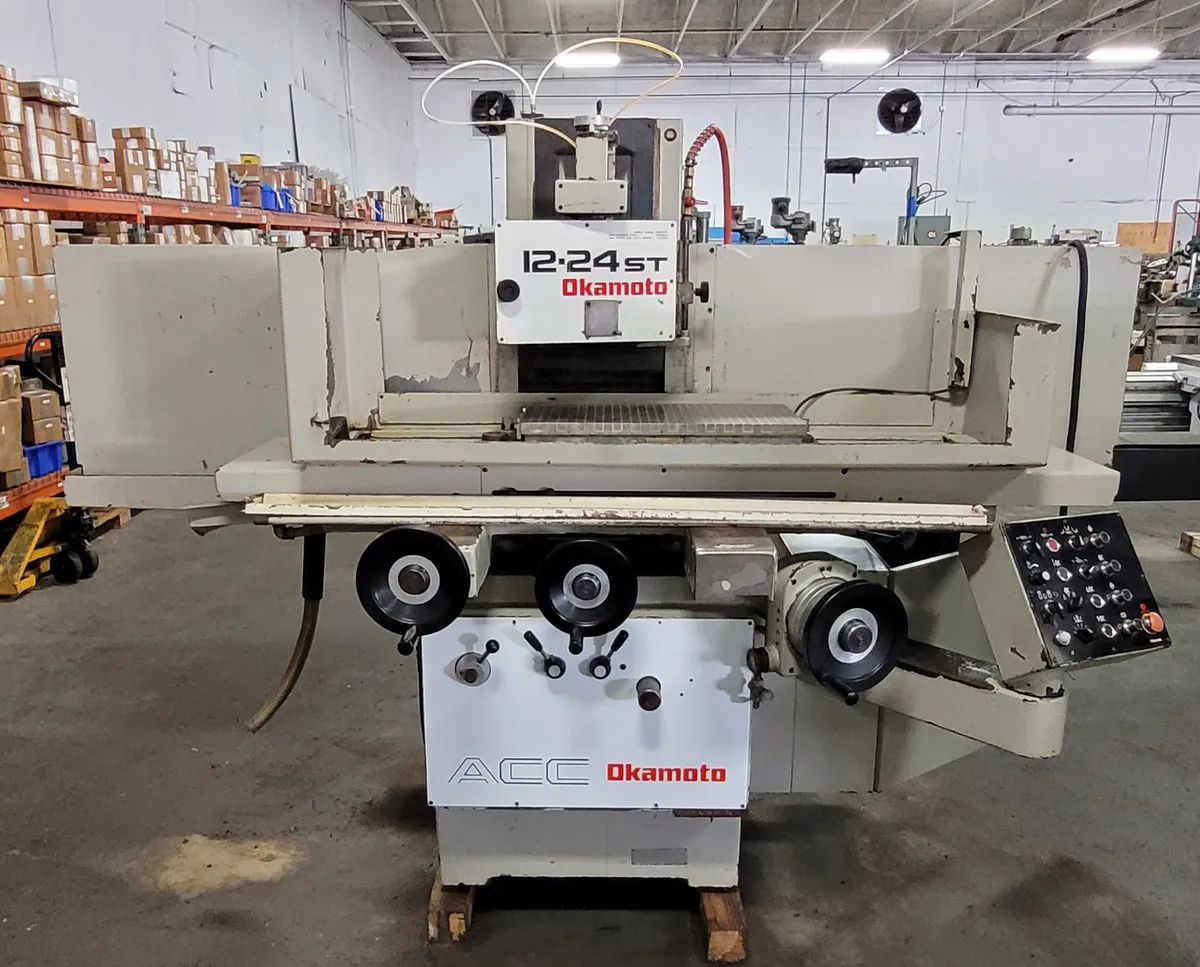

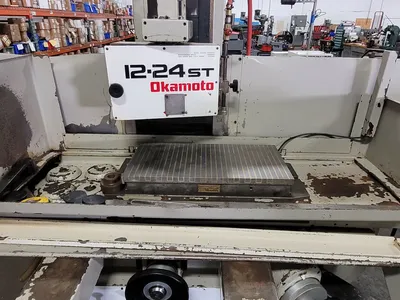

12" x 24" OKAMOTO MODEL #ACC-12.24ST 3 AXIS AUTOMATIC HORIZONTAL SURFACE GRINDER

12" x 24" OKAMOTO MODEL #ACC-12.24ST 3 AXIS AUTOMATIC HORIZONTAL SURFACE GRINDER

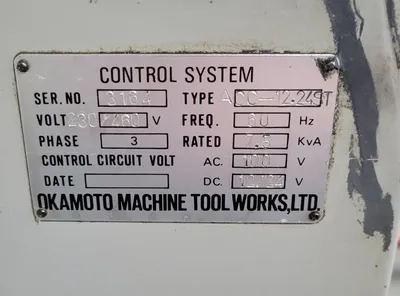

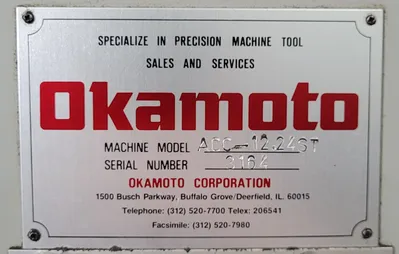

SERIAL ................................. 3164
MODEL .................................. ACC-12.24ST
Chuck .................................. 24" x 12"
Work Surface ........................... 12" x 24"
Table Movement ......................... 29.5"
Wheel to Table ......................... 13.7"
Load ................................... 925 Lbs
Wheel Size ............................. 12" x 1.5" x 5"
Wheel Speed ............................ 1,800 RPM
Auto Longitudinal Feed Rate ............ 1-82 FPM
Rapid Wheelhead Feed Rate .............. 16 IPM
Auto Wheelhead Downfeed Increments ..... .0001" - .0015"
Hydraulic Motor ........................ 4 - 40 IPM

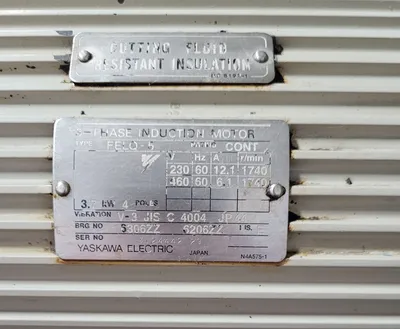

Spindle Drive .......................... 5 HP (3.7 KW)
COOLANT TANK
103" x 73" x 78" 5000lbs
