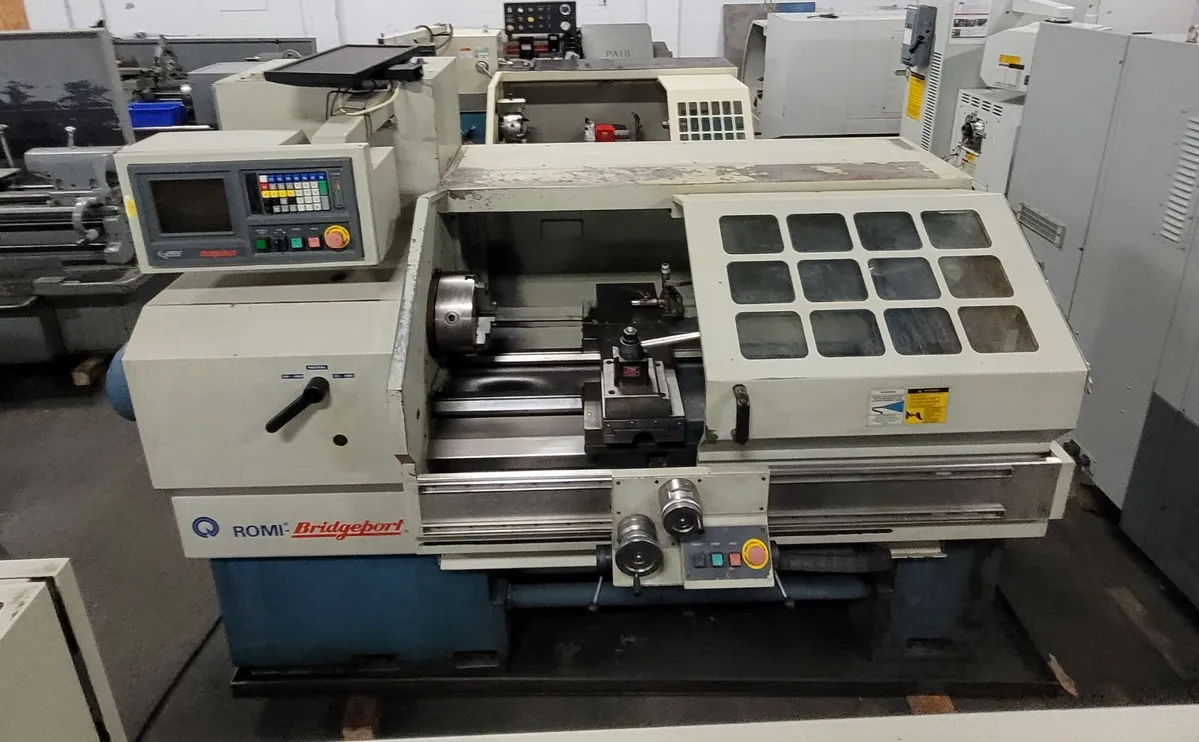

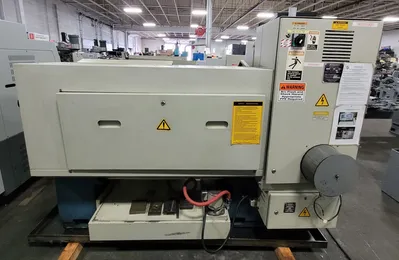

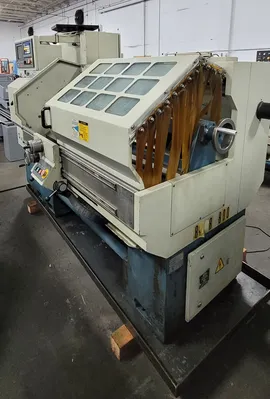

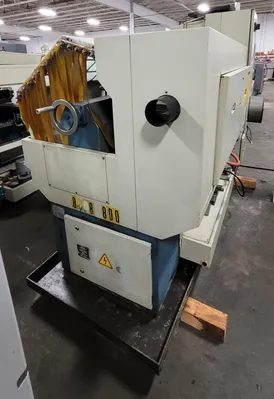

18” x 40” Bridgeport Romi EZ-Path S CNC Teach Lathe

18” x 40” Bridgeport Romi EZ-Path S CNC Teach Lathe
Max Swing: 18″
Distance Between Centers: 40″
Standard Chuck Size: 10″
X Axis Travel: 8.6″
Z Axis Travel: 40″
Feedrates Rapid Traverse X Axis: 295 IPM
Rapid Traverse Z Axis: 394 IPM
Spindle Nose Size: A2-5
Spindle Bore: 2.08″
Spindle Speed Range: 25-4000 RPM
Spindle Drive Motor: 7.5 HP
Tailstock Quil Taper: 4.7″
Approximate Dimensions: 100″ x 49″
Machine Height: 77″ (Approx.)
Approx. Machine Weight: 4,900 Lbs.
Electrical Requirements: 220 V, 3 Ph
Equipped with:
Bridgeport EZ Path CNC Control

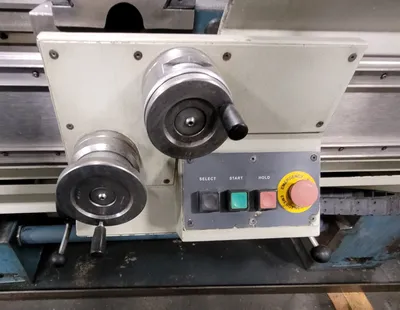

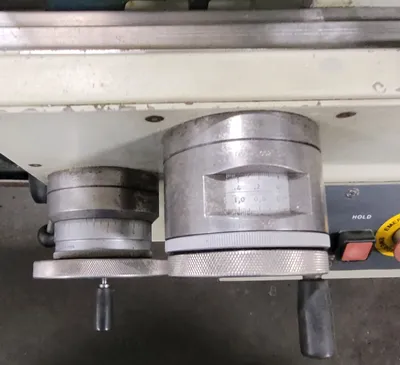

Dual Electronic Handwheel
Inch/Metric Threading

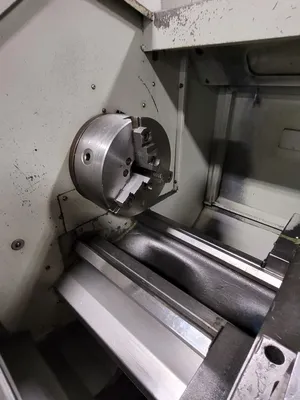

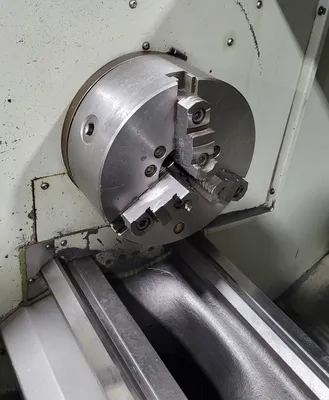

10″ 3-Jaw Chuck

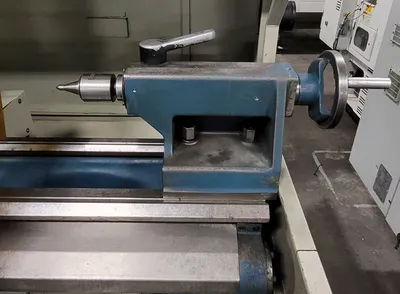

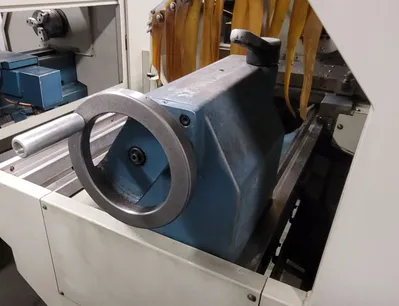

Manual Tailstock
Geared Headstock

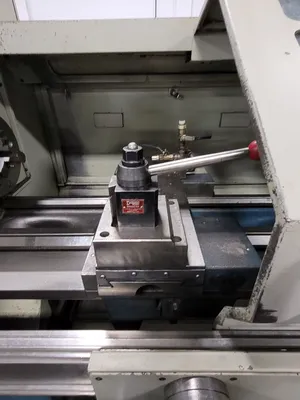

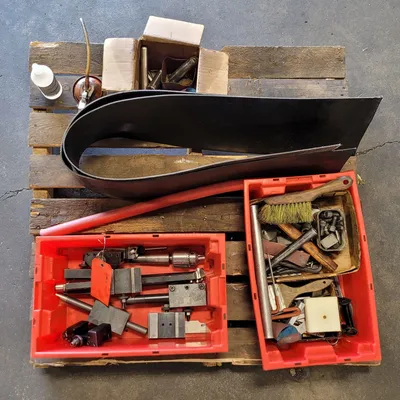

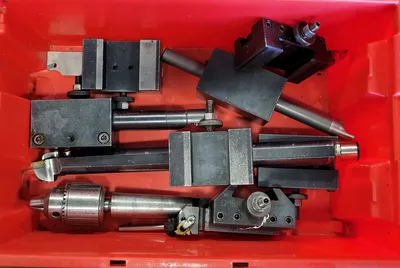

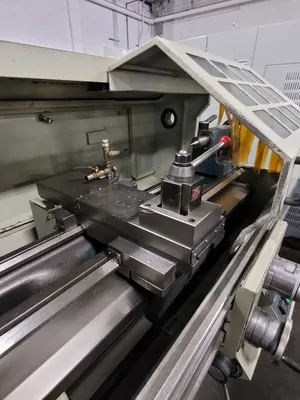

Dorian Quick Change Tool Post w/Tool Holders
Central Automatic Lube System

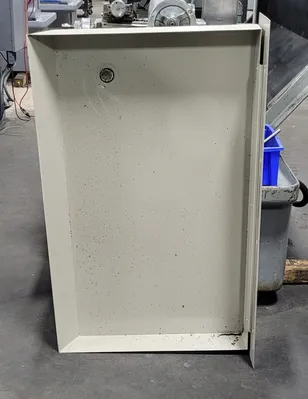

Coolant system with Chip Pan
