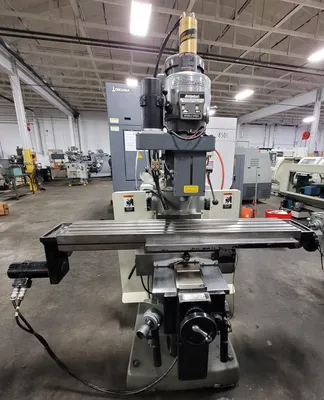

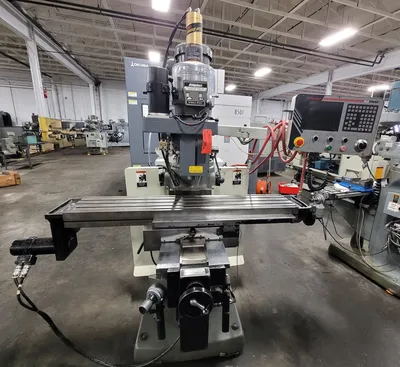

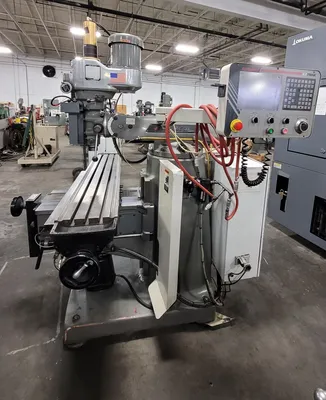

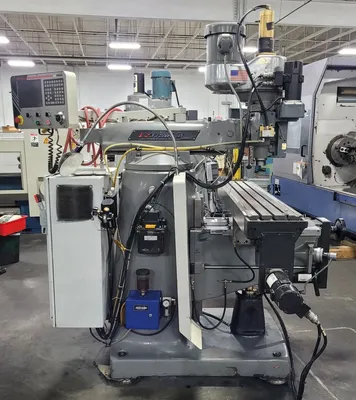

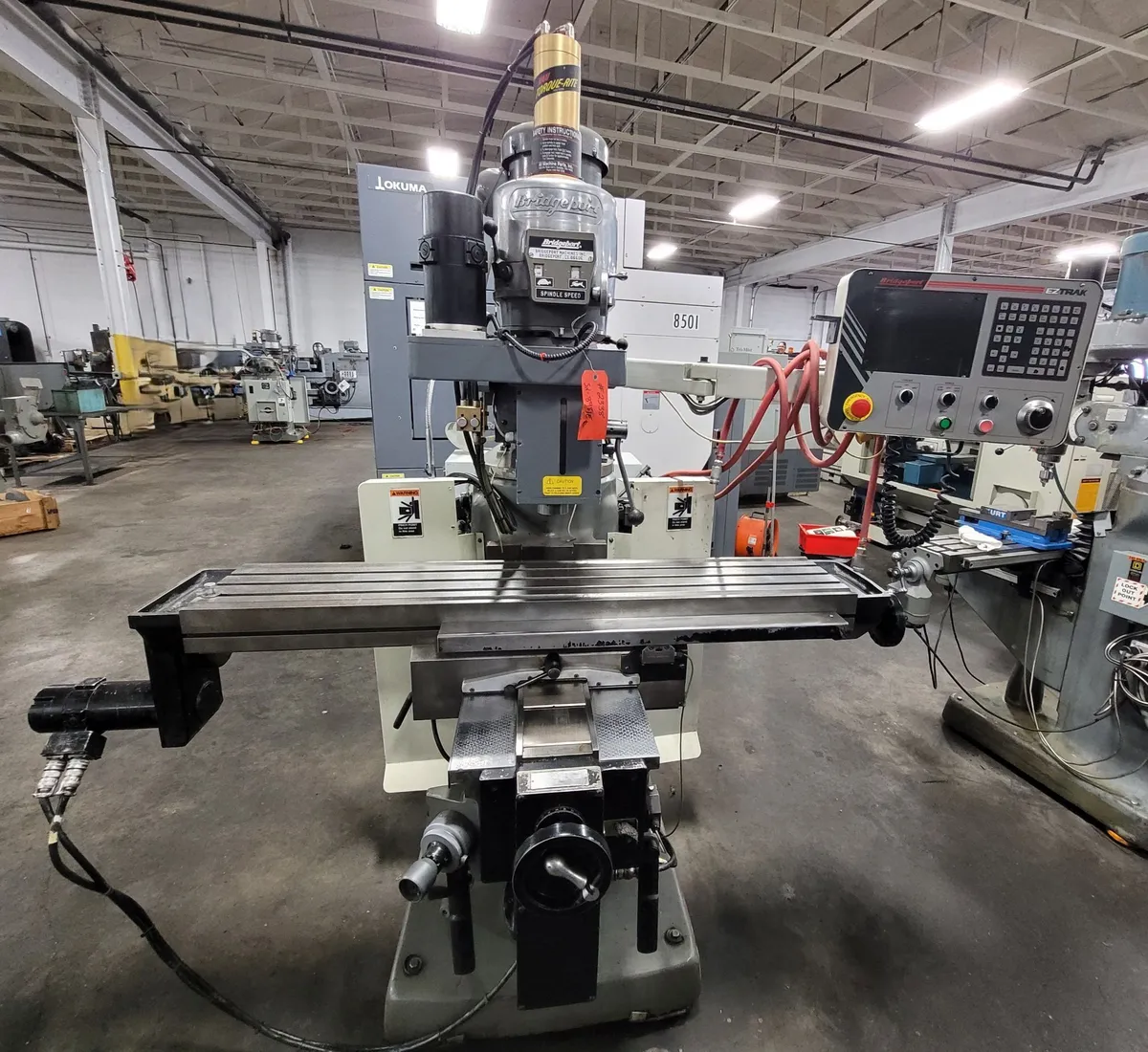

Bridgeport EZ Trak II 3 Axis CNC Vertical Mill w/PDB

The Bridgeport EZ Trak Series II is a 3-axis CNC vertical milling machine, featuring a larger
table, 2 HP motor, R-8 spindle.
Key specifications include 32" X-axis travel, 15" Y-axis travel, and 16" manual knee travel with a 5" powered quill.
It is designed for toolroom, prototype, and small-batch production.
Key Specifications (Series II 3-Axis)

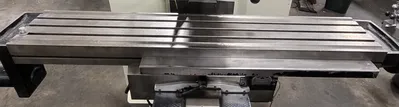

Table Size: 11" x 58".
Travels (X/Y): 32" x 15"
Quill Travel (Z-axis): 5 inches.

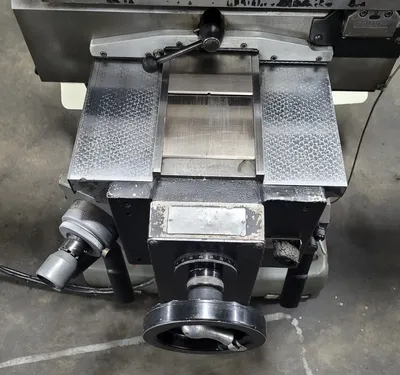

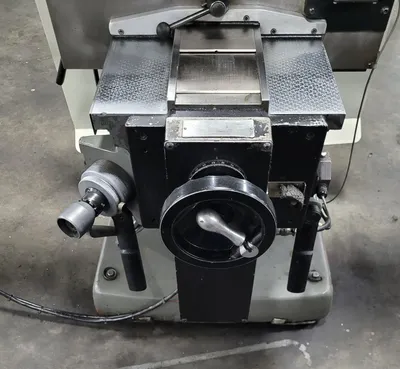

Knee Travel: 16 inches (manual).

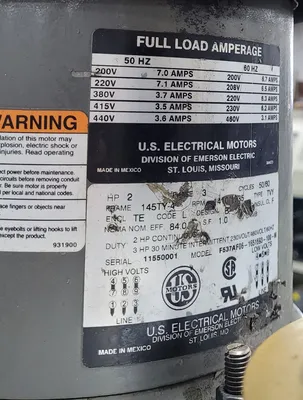

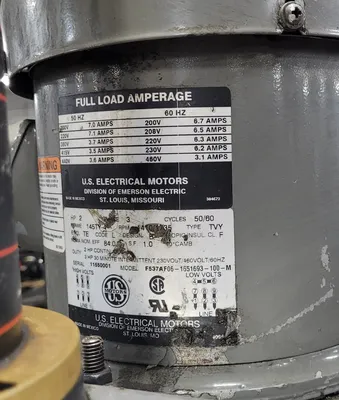

Spindle Motor: 2 HP.
Spindle Speed: 60 - 4,200 RPM (variable).
Spindle Taper: 30-Taper.
Max Table Load: 300 - 600 lbs.
Control: Bridgeport EZTrak DXII.

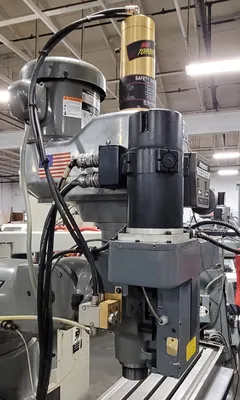

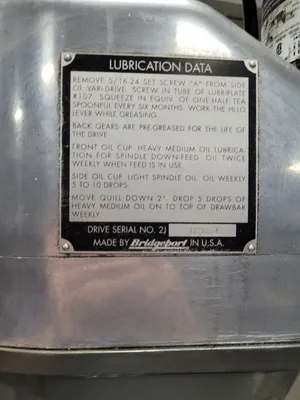

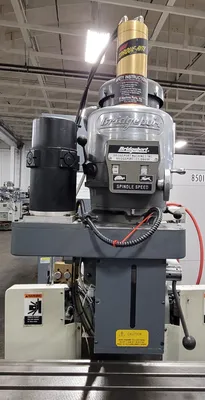

Features: Ball screws on X/Y, auto lubrication, USB Drive, pneumatic draw bar.
Performance Specs
Rapid Traverse Rate: 100 IPM.
Feedrate Range: 0.1 - 100 IPM.
Positioning Accuracy: 0.001
Positioning Repeatability: 0.0008

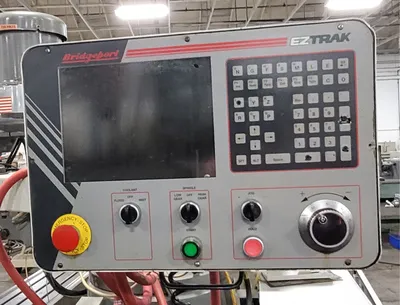

New Controller with 15" Screen & new keypad,

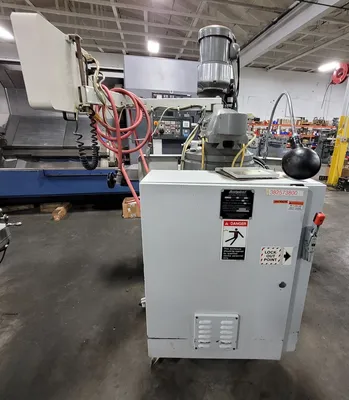

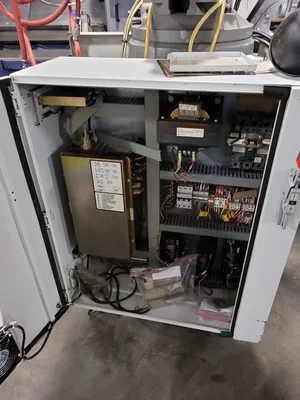

New Power Supply,
New Motherboard,
New Static Hard Drive,
New USB Port

84"H x 70"D x 85"W
