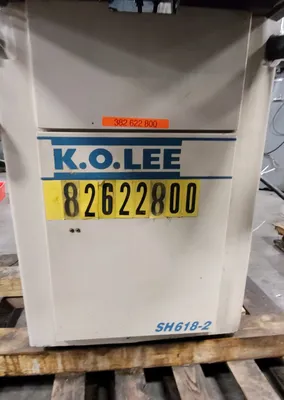

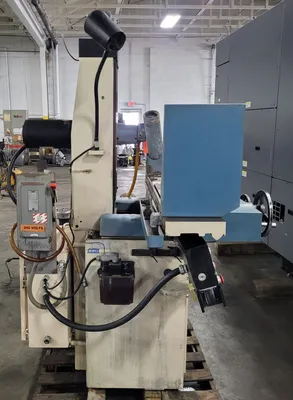

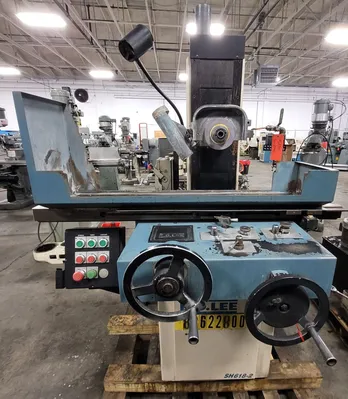

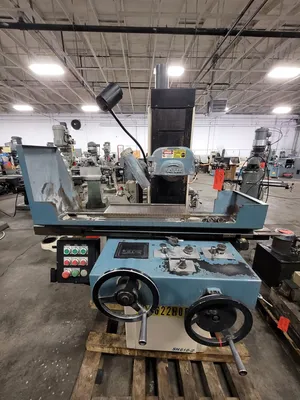

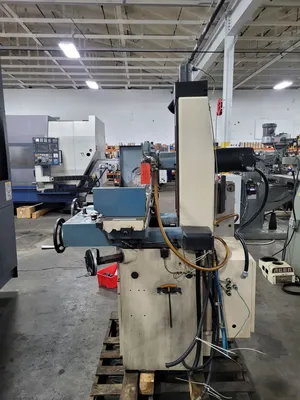

6" x 18" K.O. Lee S709NFP3AD 3 Axis Hydraulic Surface Grinder

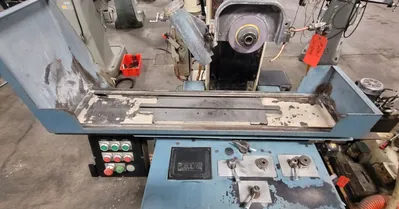

The K.O. Lee SH618-2 is an 6” x 18” 3 Axis hydraulic surface grinder designed for high-precision metalworking, featuring a Meehanite cast iron body and Turcite-B coated slideways.

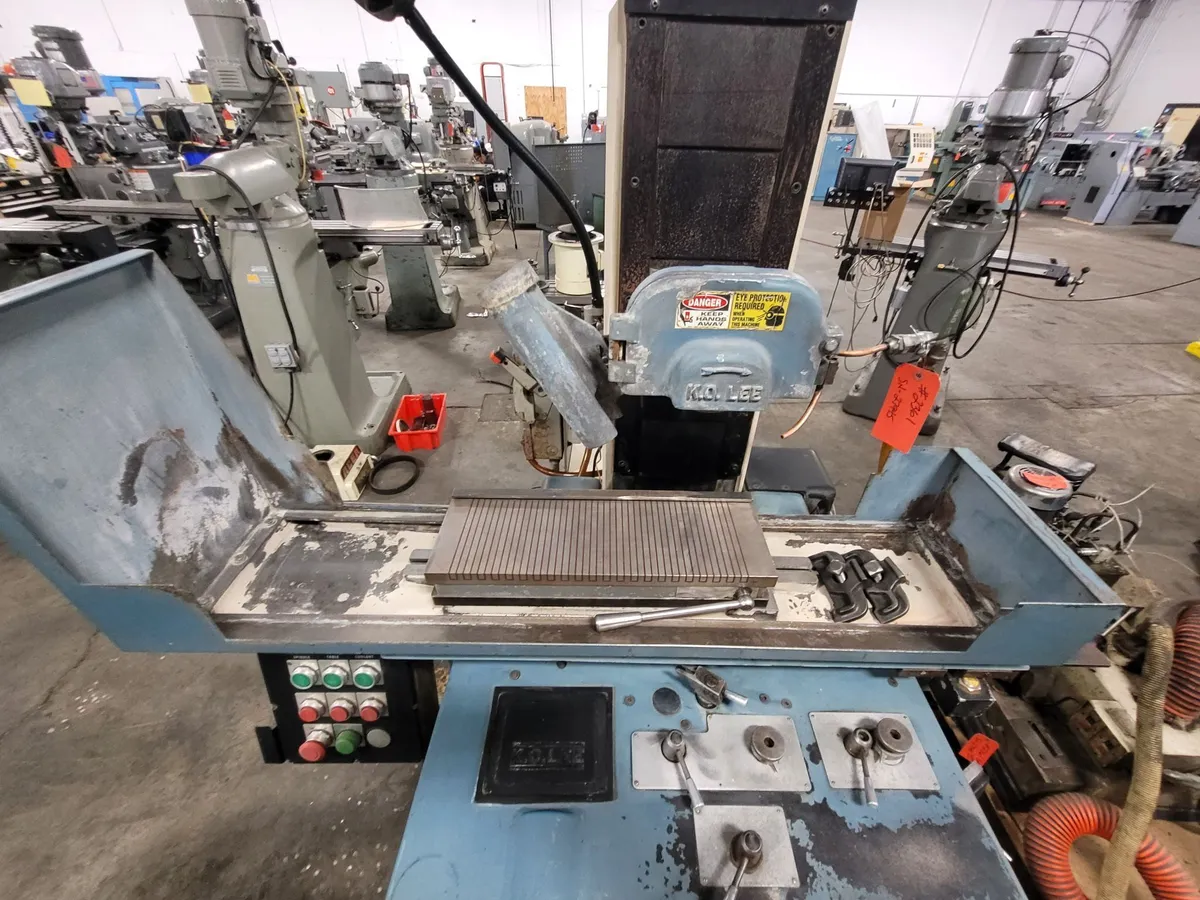

It typically includes automatic hydraulic longitudinal and cross feeds, a 2 HP direct-drive spindle motor, and a Walker Cermax permanent magnetic chuck, commonly used for industrial grinding tasks.
Key Specifications
Table Size: 6-1/4” x 18”
Longitudinal Table Travel: 20" - 21"
Cross Feed Travel: 9-1/4”
Max Distance Under Spindle: 12” - 19.625”
Grinding Wheel Size: 8” x 3/4” x 1-1/4”

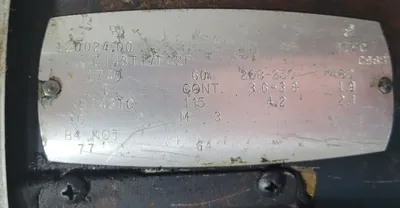

Spindle Motor: 2 HP, 3600 RPM
Machine Weight: Approx. 2,000 - 2,500 lbs

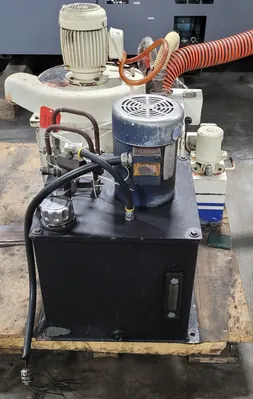

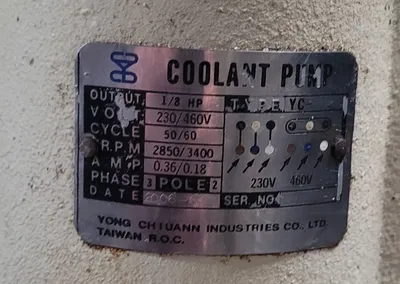

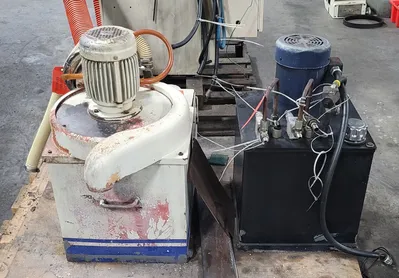

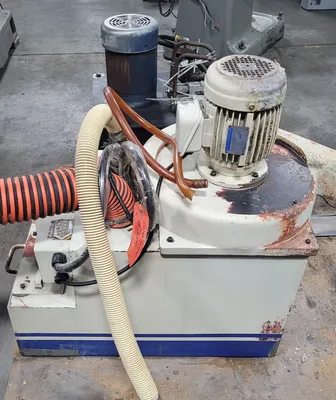

Features: Automatic longitudinal & cross feeds, Hydraulic system, coolant system.
