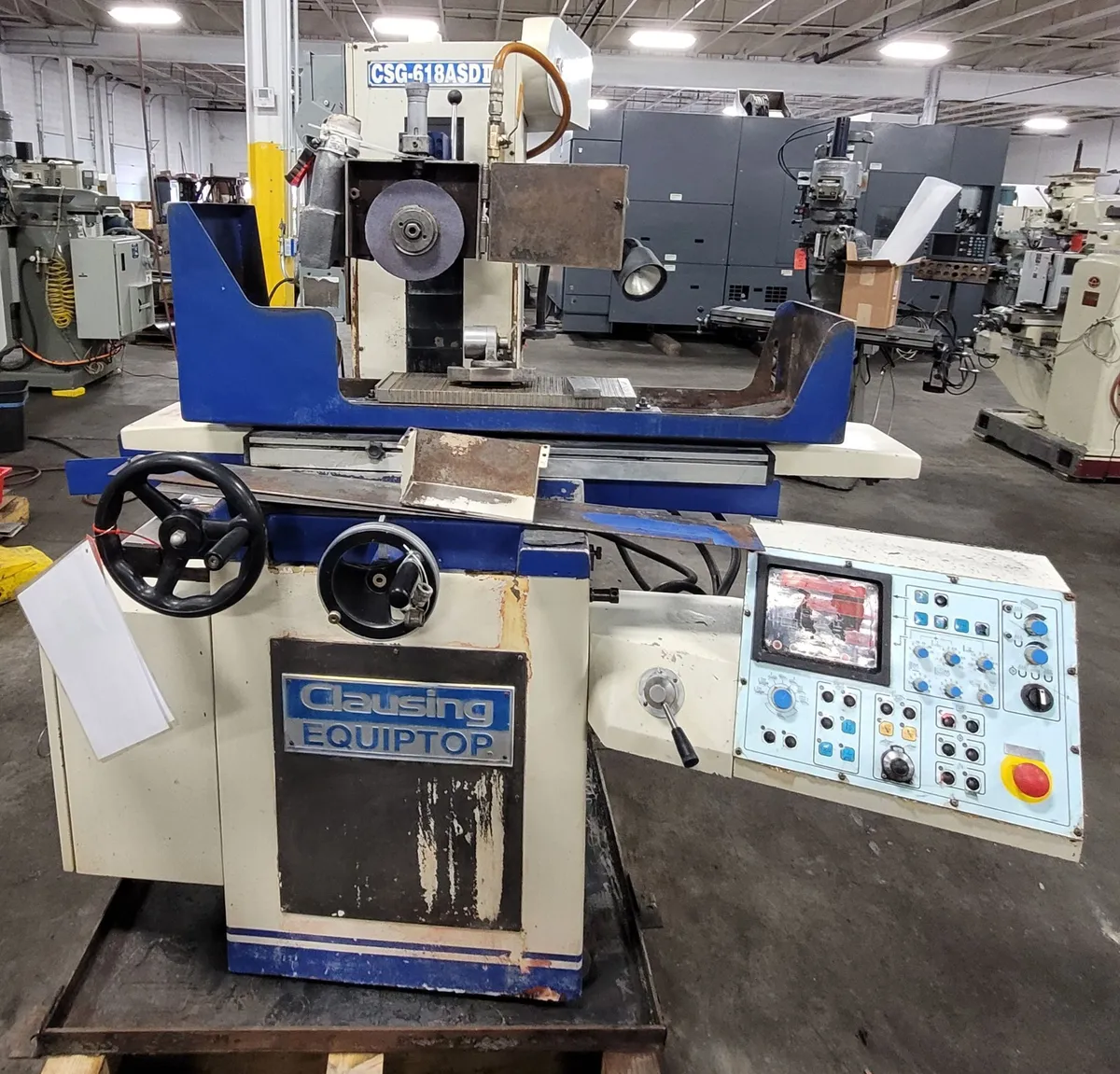

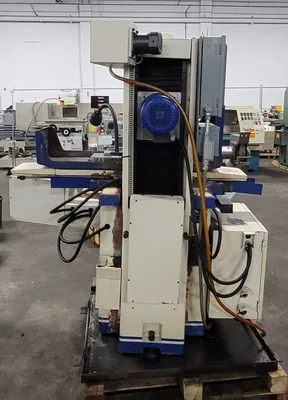

6" x 18" Clausing Equiptop CSG-618ASD II 3 Axis Automatic Surface Grinder

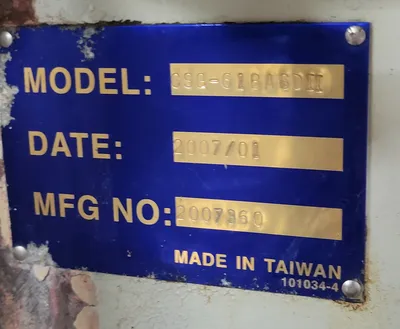

The 2007 Clausing CSG-618ASD II is a precision 6" x 18" hydraulic surface grinder designed for high-accuracy grinding tasks. Based on technical data for the Clausing/Equiptop 618 series, the specifications are as follows:
Capacity and Table
Table Size: 6" x 18" (152 x 460mm)
Longitudinal Table Travel (Hydraulic): 18.9" - 20" (480mm - 510mm)
Crossfeed Travel (Manual/Auto): 7" - 7.68" (178mm - 195mm)
Maximum Distance (Table to Spindle Center): 18" (460mm)

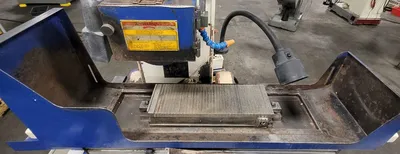

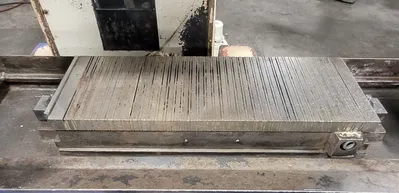

Magnetic Chuck Size: 6" x 18"
Spindle and Motor
Spindle Motor: 2 Hp, 3450 RPM (60Hz)
Spindle Type: Cartridge-type supported by preloaded angular contact ball bearings

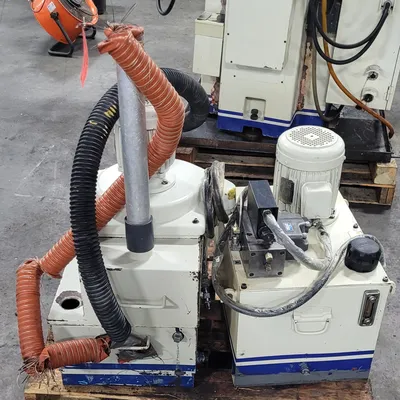

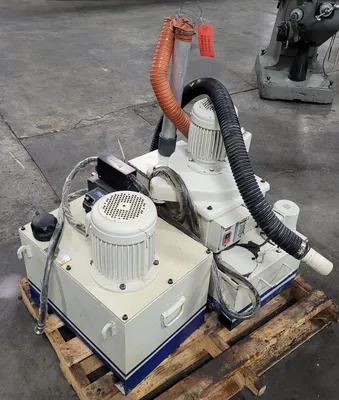

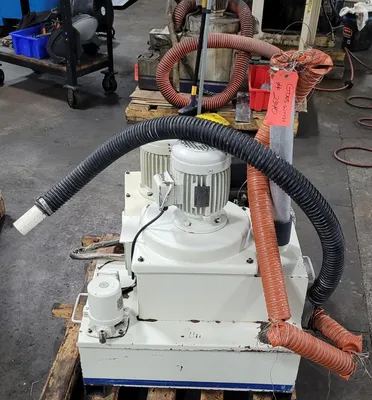

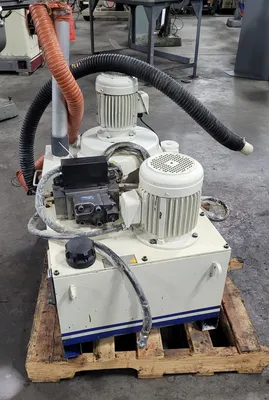

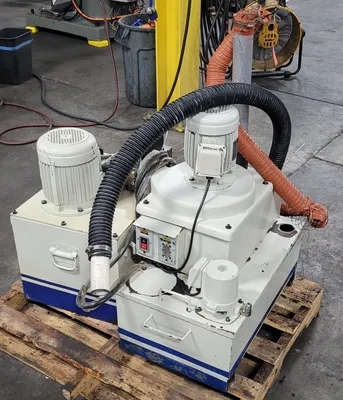

Hydraulic Motor: 1 Hp
Vertical Rapid Feed Motor: 40W (standard on ASD models)
Grinding Wheel
Diameter: 8" (203mm)
Width: 0.5" - 0.75" (12.7mm - 19mm)
Bore: 1.25" (31.75mm)
Movement and Precision
Vertical Handwheel Graduation: 0.0001" (0.005mm)
Vertical Handwheel Revolution: 0.05" (1mm)
Crossfeed Handwheel Graduation: 0.0005" (0.02mm)
Crossfeed Handwheel Revolution: 0.2" (5mm)
Longitudinal Table Speed: Infinitely variable, 196-984 in/min
Construction and Dimensions
Ways: Hand-scraped V and Flat ways, with Turcite-B coating on table ways
Weight: Approx. 1,808 lbs (820 kg)
Dimensions (L x W x H): 71.3" x 44.6" x 65.4"
Standard Features
Automatic lubrication system
Table-mounted diamond dresser
Grinding wheel and flange
Balancing stand with arbor
Hydraulic-driven longitudinal table movement
Servo motor-driven crossfeed
