| Swing | 16.5" | 419.1 mm |
| Machining Length | 40" | 1,016 mm |
| Chuck Size | 8" | 203.2 mm |
| Power | 8 hp | 6 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Tailstock | Yes | Yes |
| Weight | 5000 | 5000 |

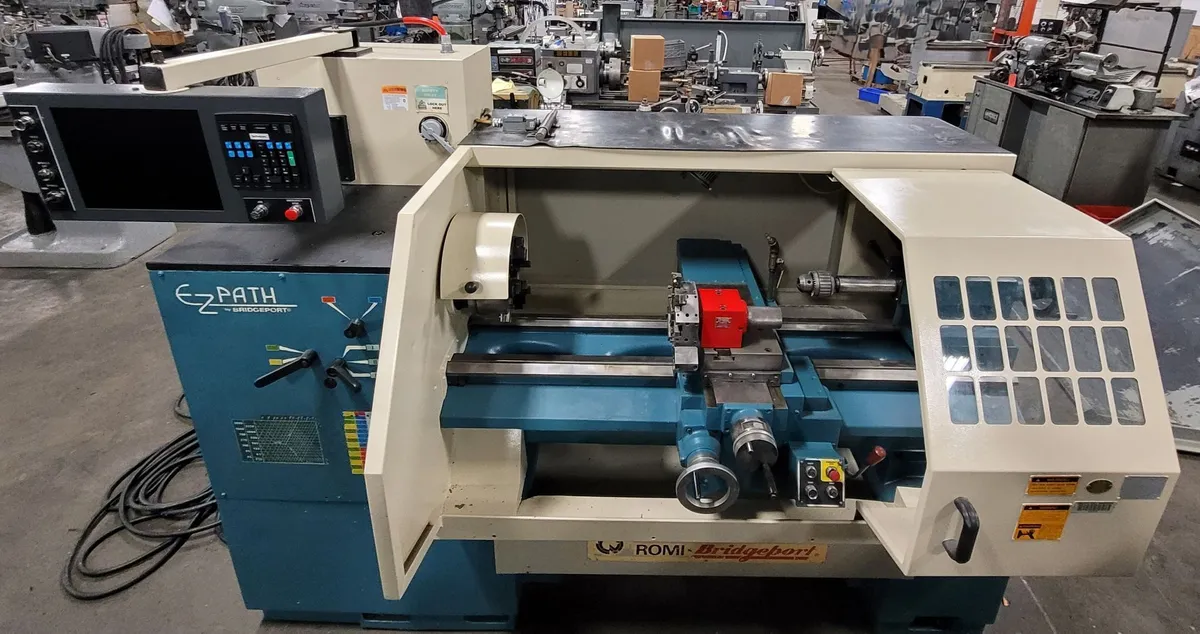

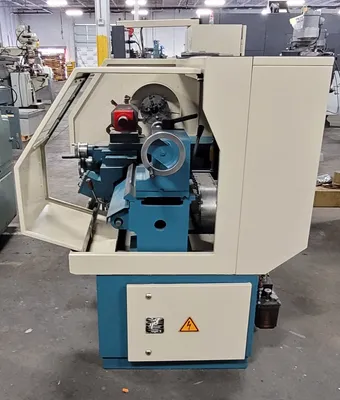

Bridgeport Romi EZ-Path w/ New Controller & Dorian Turret

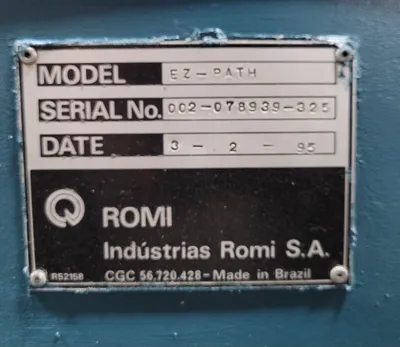

Serial Number: 002-078939-325
Voltage: 460V
3 Phase
60 Hertz
Full Load Current: 15 Amps
Rating of Largest Motor: 11.5 Amps
Weight: 5000lbs

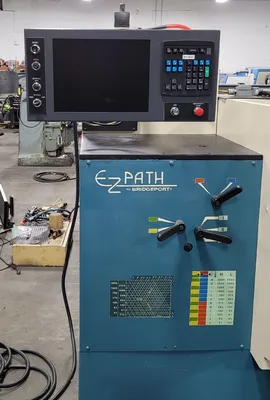

Comes with new controller

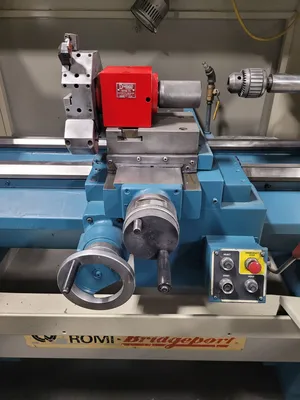

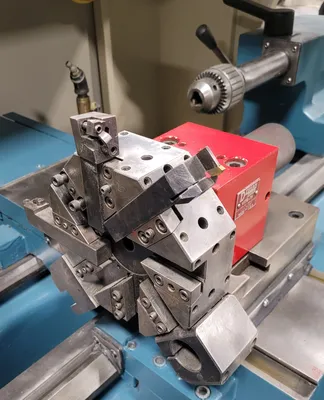

Dorian Turret

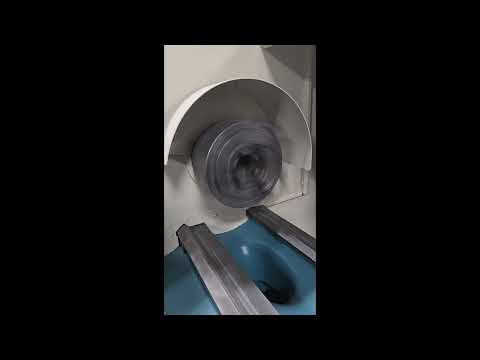

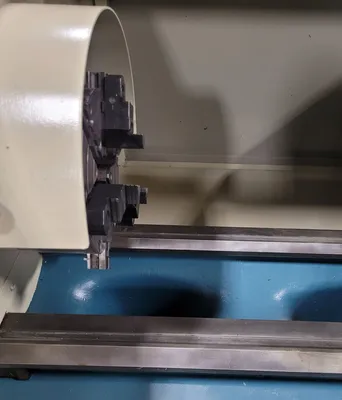

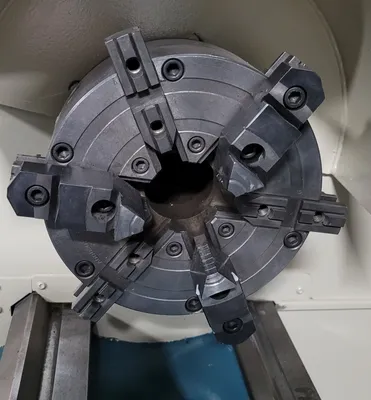

8" Chuck

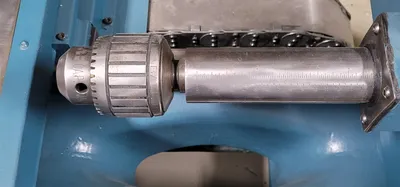

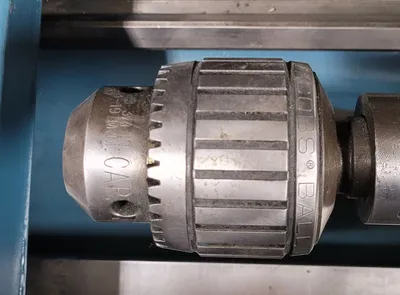

Jacobs 18N Drill Chuck
SPECIFICATIONS:
Swing Over Ways: 16.5"
Swing Over Cross Slide: 8.6"
Max Center Distance: 40"
Cross-Slide (X) Travel: 8.6"
Longitudinal (Z) Travel: 40"
Hole Through Spindle: 1.97"
Spindle Nose: A2-5
Spindle Speeds: (24) Geared Head 37.5 - 3,000 RPM

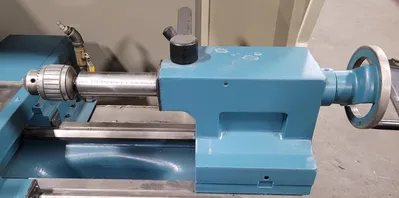

Tailstock Quill Travel: 6.3"
Tailstock Quill Taper: 4 MT
Spindle Drive: 8 HP
