| Swing | 21.7" | 551.18 mm |
| Machining Length | 12.2" | 309.88 mm |
| # Axis | 2 | 2 |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 11.8" | 299.72 mm |
| Tailstock | Yes | Yes |
| Control | CNC (Fanuc 0i-TD) | CNC (Fanuc 0i-TD) |
| Dimensions | 8' x 4' x 6' | 8' x 4' x 6' |
| Weight | 6000 | 6000 |

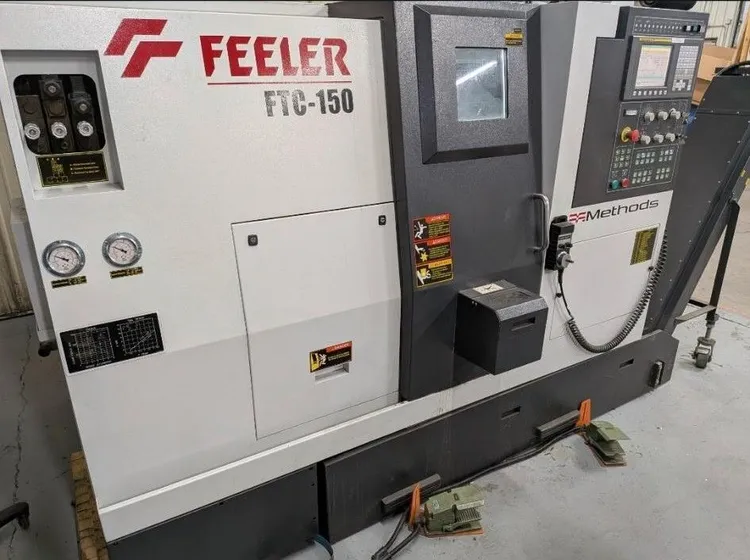

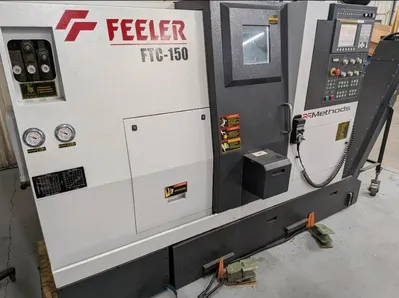

The 2014 Feeler FTC-150 is a compact, high-precision CNC turning center, equipped with a Fanuc 0i-TD controller, a 6-inch chuck, and a 15 HP spindle motor capable of 6000 RPM.
Only 10 Hours.
It features a maximum turning diameter of 11.8 inches (300 mm), a turning length of 12.2 inches (350 mm), a 2-inch bar capacity, and a 10-tool turret.
Key Technical Specifications (Approximate):
Maximum Swing: 21.7 inches (550 mm)
Maximum Turning Diameter: 11.8 inches (299.7 mm)
Maximum Turning Length: 12.2 inches (350.5 mm)
Chuck Size: 6 inches (152.4 mm)
Bar Capacity: 2 inches (50.8 mm)
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP (11.2 kW)
Spindle Nose: A2-5
X-Axis Travel: 5.9 inches (150 mm)
Z-Axis Travel: 13.8 inches (350 mm)
Turret Capacity: 10 Stations

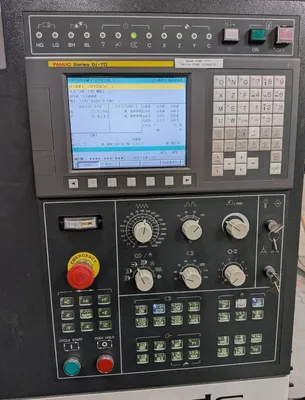

Controller: Fanuc 0i-TD
Common Features:
Equipped with a hydraulic tailstock.
Includes chip conveyor and coolant system.
