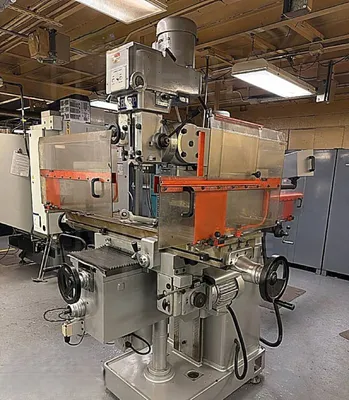

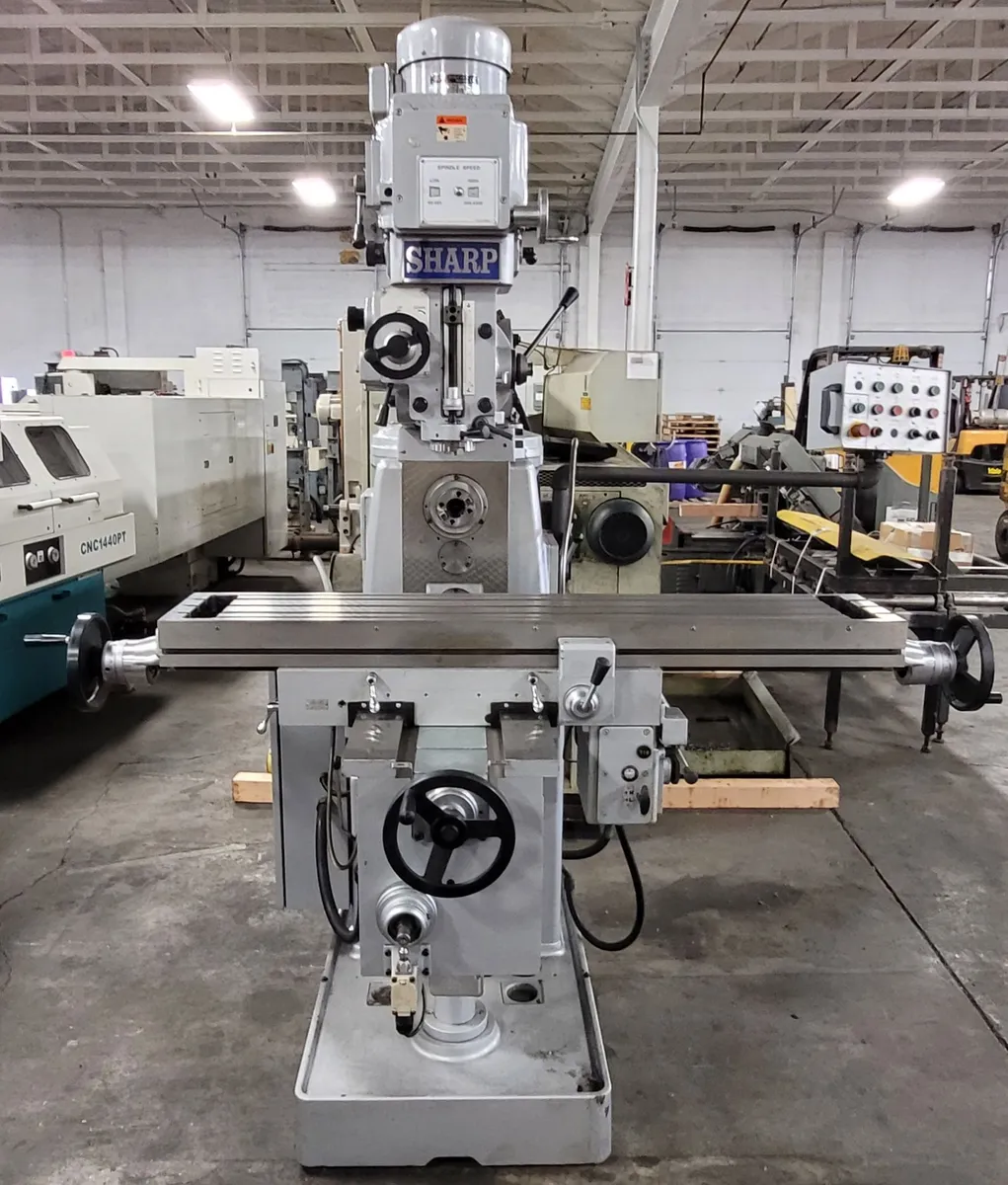

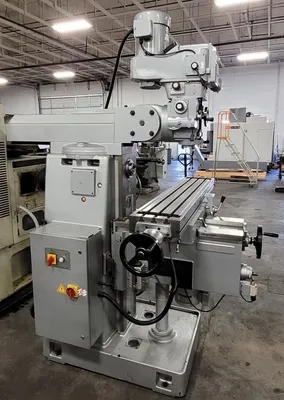

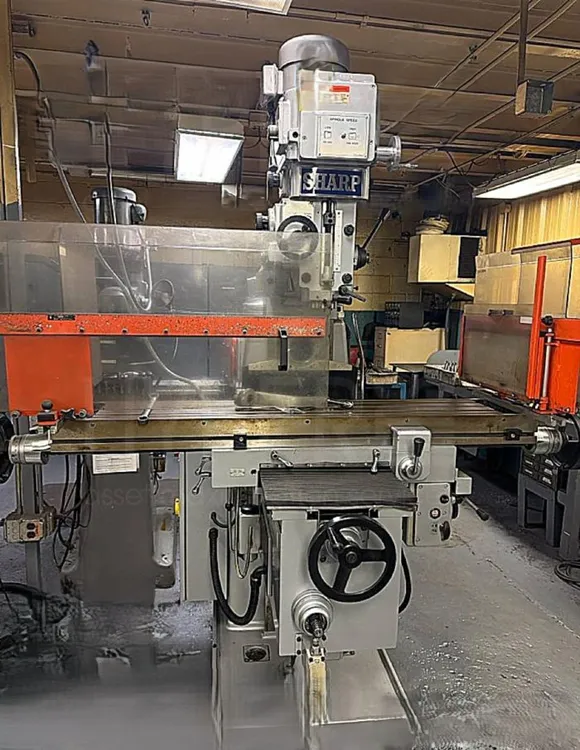

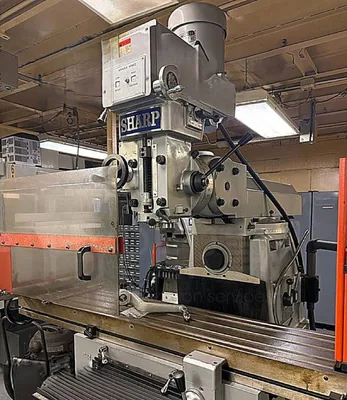

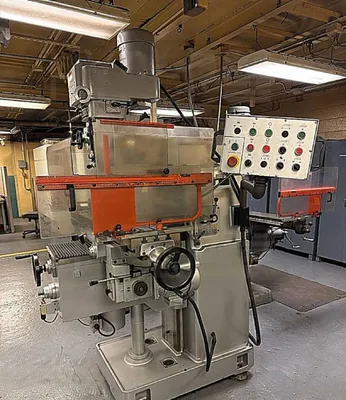

Sharp VH-25 Heavy Duty 5HP Vertical/Horizontal Combo Milling Machine

2018 Sharp VH-25 Heavy Duty Vertical/Horizontal Combo Milling Machine

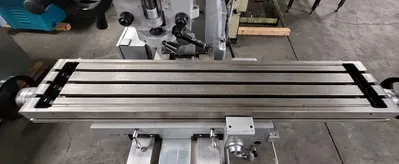

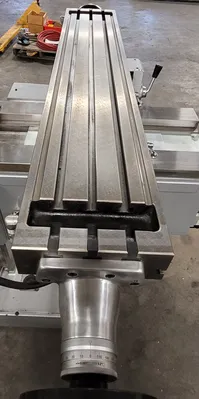

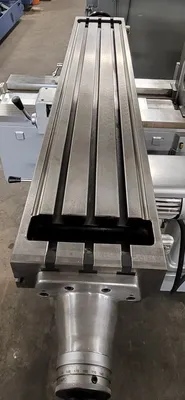

Table Size (W x L/In.): 10 x 56
Vertical Spindle Taper: NMTB-40

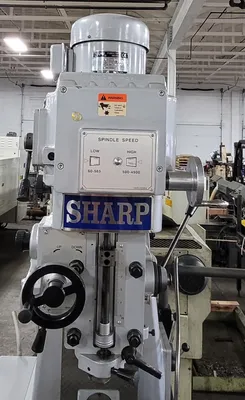

Vertical Spindle Speeds Mechanical Variable Speed
Vertical Spindle Speeds Range (RPM): 60 - 4,500
Horizontal Spindle Taper: NMTB-40
Horizontal Spindle Speeds: 6
Horizontal Spindle Speeds Range (RPM):80, 120, 230,380, 700, 1,350
Maximum Table Longitudinal Travel (In.): 36
Number of Table Longitudinal Feeds: 12
Range of Table Longitudinal Feed (IPM): 7/8 - 27
Table Longitudinal Rapid Traverse (IPM): 82-1/2
Maximum Table Cross Travel (In.): 16-1/2
Maximum Table Vertical Travel (In.): 17-1/2
Table Vertical Rapid Traverse (IPM): 31-1/2
Maximum Ram Travel (In.): 18-1/2
Vertical Spindle Quill Diameter (In.): 3-1/2
Vertical Spindle Down Feeds Rates (IPR): .0016 - .003 - .006
Vertical Spindle Travel (In.): 5
Vertical Head Movement (Right or Left | Front or Back): 90° | 45°
Vertical Spindle Nose to Table Surface (Min. - Max./In.): 5-5/16 - 23
Vertical Spindle Center to Column Surface (Min. - Max./In.): 12-13/16 - 30-11/16
Horizontal Spindle Nose to Table Surface (Min. - Max./In.): 0 - 17-3/8
Horizontal Spindle Center to Bottom of Over Arm (In.): 5-1/2
Horizontal Spindle Nose to Column Surface (In.): 15/16

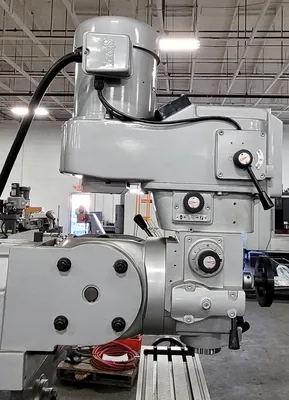

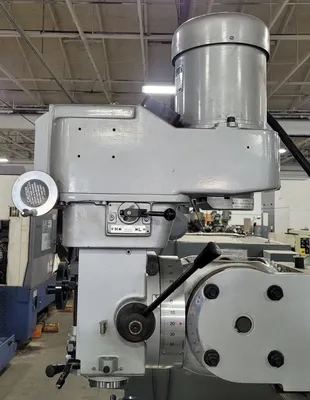

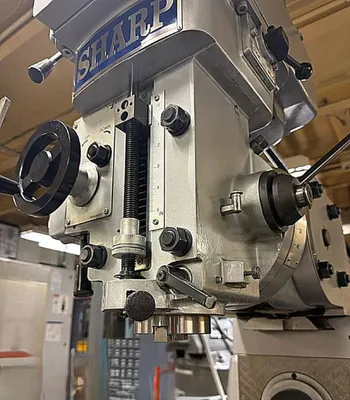

4-Way Tilt Mill Head for Added Versatility
Build-in Powerfeed Table w/ Rapid Traverse
Build-in Rapid Knee Traverse
Heavy Duty Box-Type Column
Box-Type Knee Ways,
Turcite Saddle Ways

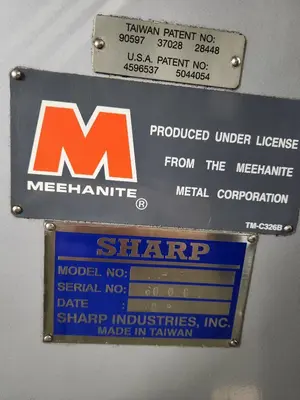

Meehanite Casting

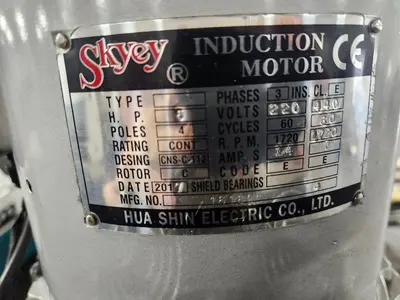

Vertical Spindle Motor (HP): 5
Horizontal Spindle Motor (HP): 5
Table Longitudinal Rapid Feed Motor (HP): 1
Table Vertical Rapid Feed Motor (HP): 1-1/2
Coolant Pump Motor (HP): 1/8
Electrical Wiring: 220V/3 Phase/60 Hz.
Power Consumption (Amps): 48
Floor Space Dimensions (W x D x H/In.): 81.96 x 75 x 93
Machine Weight (Lbs.): 4,200
