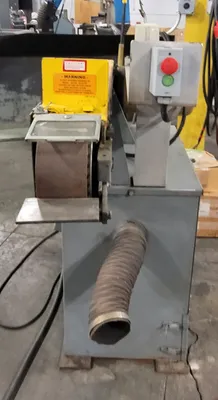

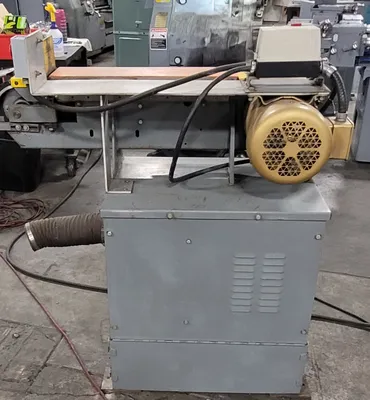

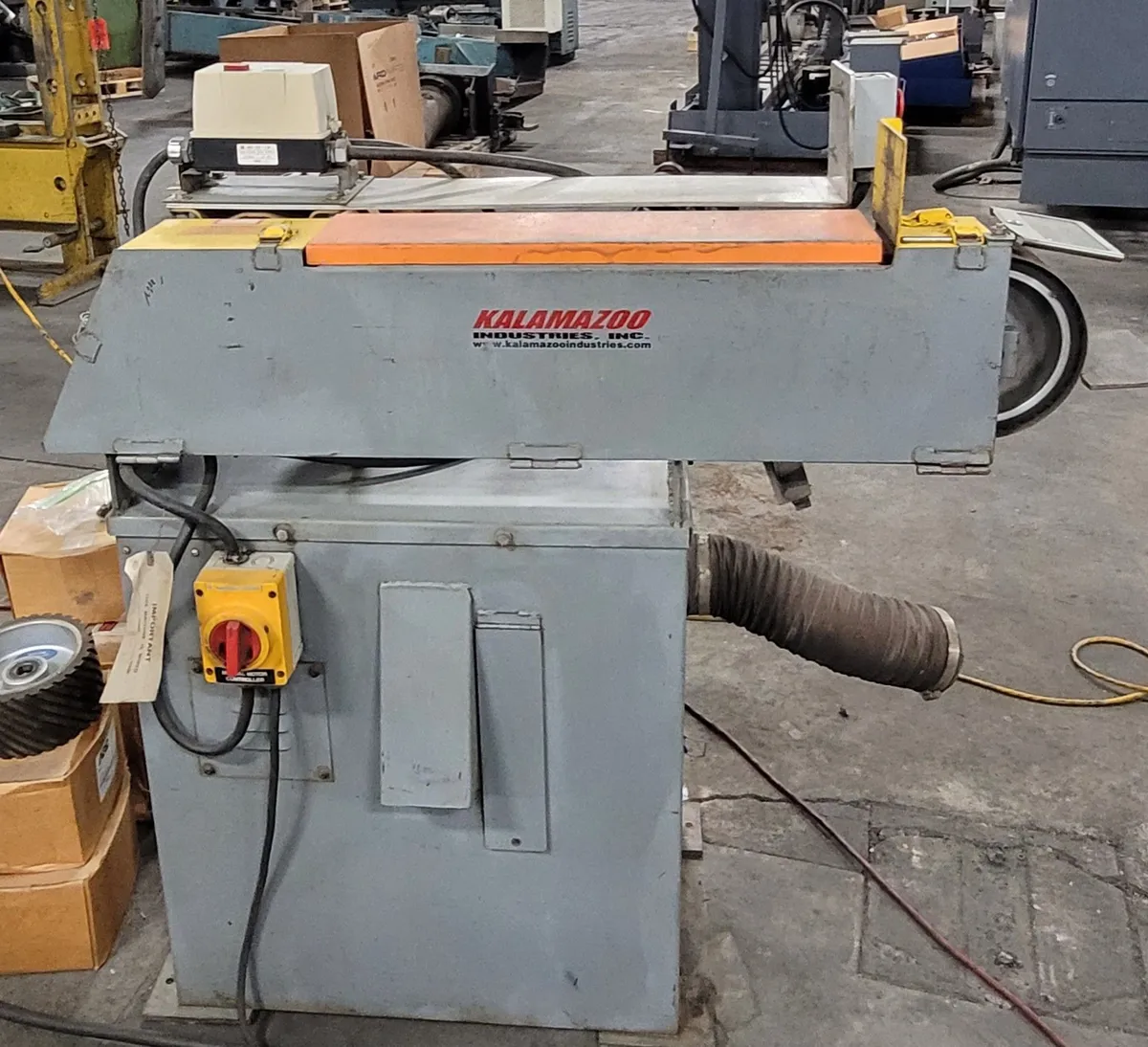

The Kalamazoo KS490HV-5 is a 4" x 90" industrial belt grinder featuring a 5 HP, 3-phase motor (220/440V), producing 6900–7200 SFPM for fast metal removal.
It includes a 400 CFM dust collector base (DCV-6), an 8" x 6" serrated 70-duro contact wheel, a 24.5" reversible platen, and a magnetic switch, all designed for heavy-duty grinding, deburring, and finishing.
The Kalamazoo KS490HV-5 is a 4" x 90" industrial belt grinder featuring a 5 HP, 3-phase motor (220/440V), producing 6900–7200 SFPM for fast metal removal.
It includes a 400 CFM dust collector base (DCV-6), an 8" x 6" serrated 70-duro contact wheel, a 24.5" reversible platen, and a magnetic switch, all designed for heavy-duty grinding, deburring, and finishing.
Key Specifications & Features:

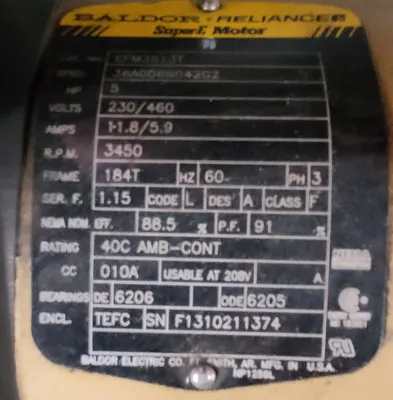

Motor: 5 HP, 3-phase, 220V
Belt Speed: 7200 SFPM.
Dimensions: 4" x 90" belt size.

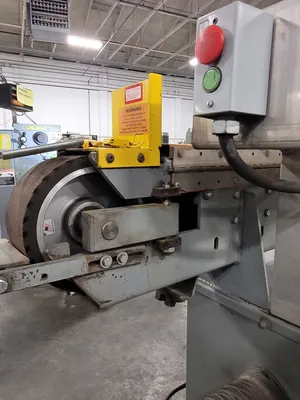

Contact Wheel: 8" OD x 6" W serrated 70 duro.
Dust Collection: Mounted on DCV-6 vacuum base (400 CFM).
Platen: 24.5" long, reversible and replaceable steel.

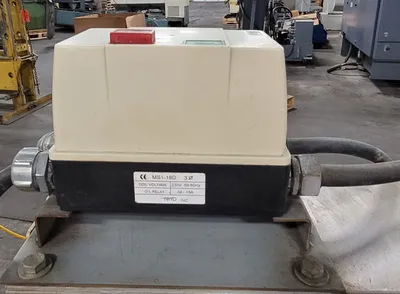

Features: Spring belt tensioning, adjustable steel worktable, and magnetic on/off switch.
Construction: All-steel, made in the USA.
The unit is designed for heavy-duty industrial applications requiring high-speed grinding.
Built in Dust Collector
Extra Belts
37" L x 59" W x 54" H 500lbs
