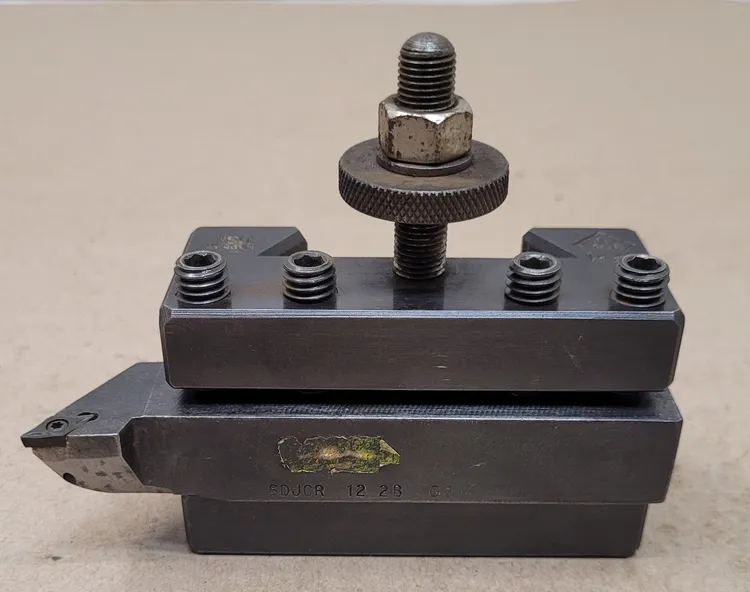

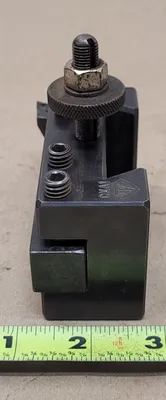

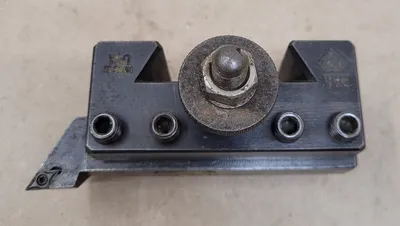

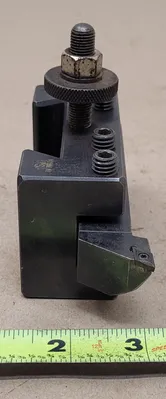

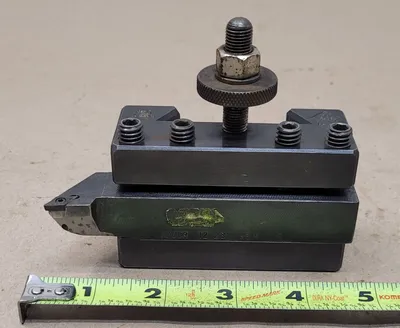

Aloris CXA 1 Lathe Tool Post Holder w/ Sandvik SDJCR 12-2B
USED
Brand: Aloris

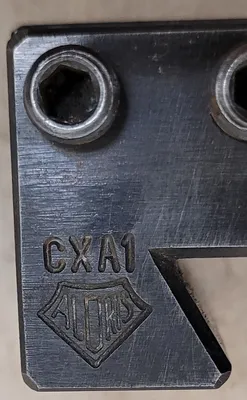

Part Number: CXA 1
Tool Holder
Wedge: 2-1/4”
Lathe Swing (Inch) 13 to 18
Through Coolant No
Overall Height (Inch) 2-1/8
Overall Length (Inch) 3-1/2
Maximum Cutting Tool Size (Inch) 3/4
Centerline Height (Inch) 1-7/16
Tool Bit Range (Inch) 1/4 to ¾

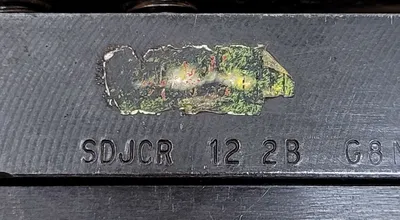

Comes with Sandvik SDJCR 12-2B
Shank Size: 3/4 inch (19.05 mm) square.
Insert Type: Holds rhombic (diamond) 55° inserts
Cutting Angle: 93° end cutting edge angle
Lead Angle: -3° (negative)
Body Angles: 0° body side, 0° rake angle.
Coolant: No integrated coolant entry or exit
