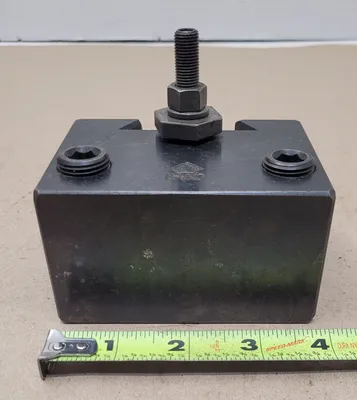

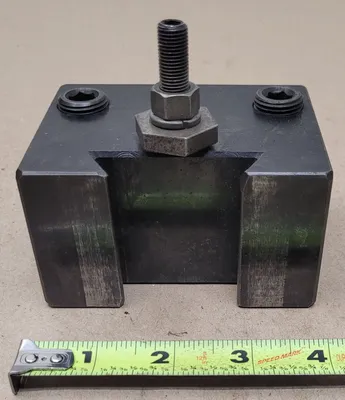

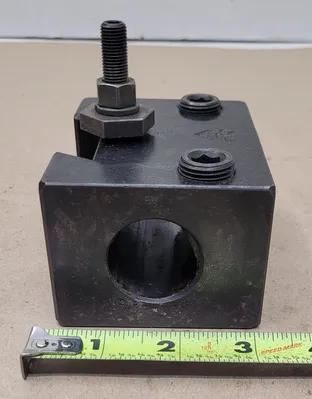

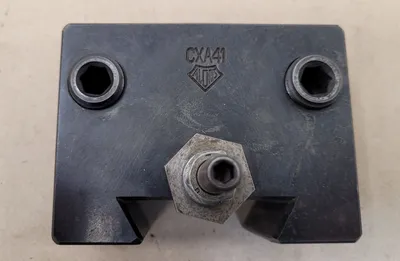

Aloris CXA 41 Boring Bar Tool Holder
USED
Brand: Aloris
Part Number: CXA 41
Boring Bar Tool Holder

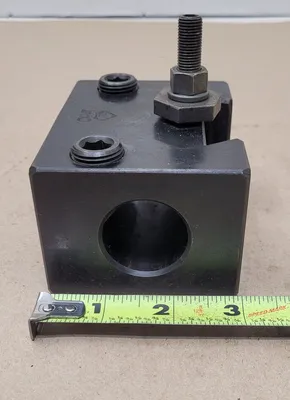

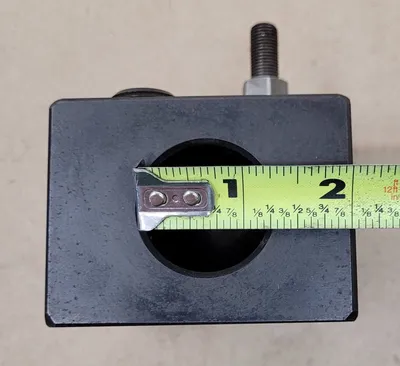

Bore: 1-1/4"
No Busing included

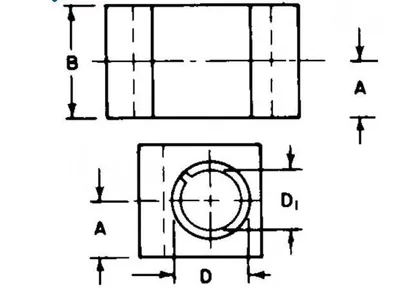

Diagram in Photos for dimensions:
A: 1-1/8“; B: 2-1/4“; D: 1-1/4“; D1: 1″

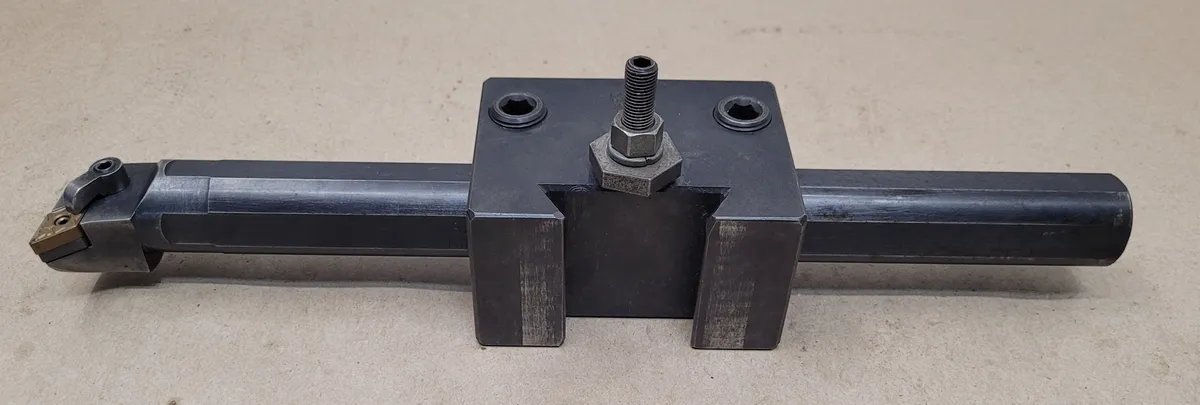

Comes With:

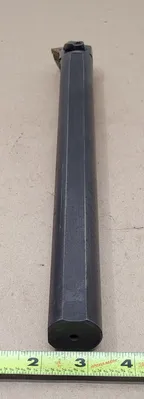

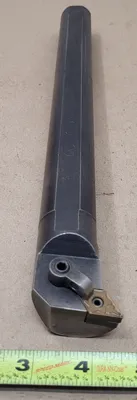

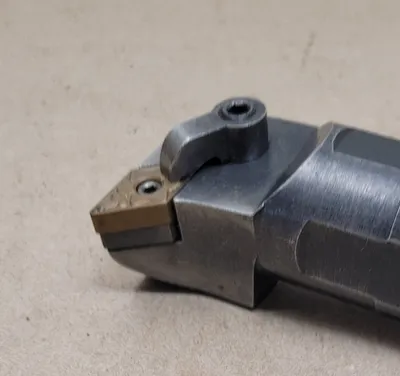

Seco S20-MDUNR-4 Boring Bar
USED
Brand: Seco
Part Number: S20-MDUNR-4
Boring Bar
Min Bore: 2.000”
Hand of Holder: Right Hand
Shank Diameter (Inch) : 1-1/4
Overall Length (Decimal Inch): 14.0000

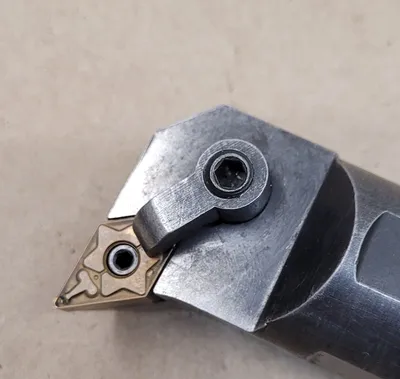

Compatible Insert Size Code: 432
Insert Holding Method: Pin & Clamp
Compatible Insert Shape: Diamond
Rake: Negative
Rake Angle: -7.00
Lead Angle: 3
Insert Inscribed Circle (Inch): 1/2
Insert Inscribed Circle (Decimal Inch): 0.5000
Insert Inscribed Circle (mm): 12.70
Multi-use Tool: No
Center to Cutting Edge (Decimal Inch): 1.0000
Insert Thickness (Decimal Inch): 0.1875
Insert Thickness (Inch): 3/16
Coolant Through: No
